2003 Robertson and Caine Leopard 47 Catamaran located in Outside United States for sale

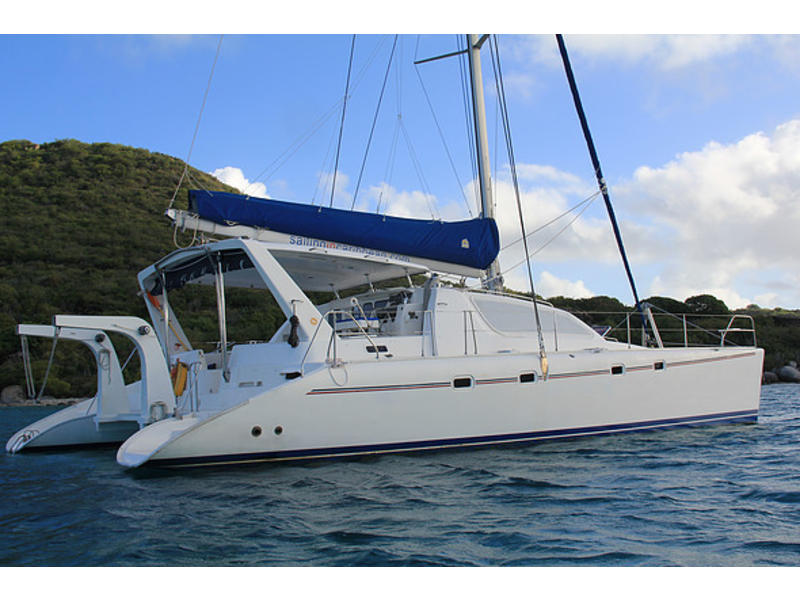

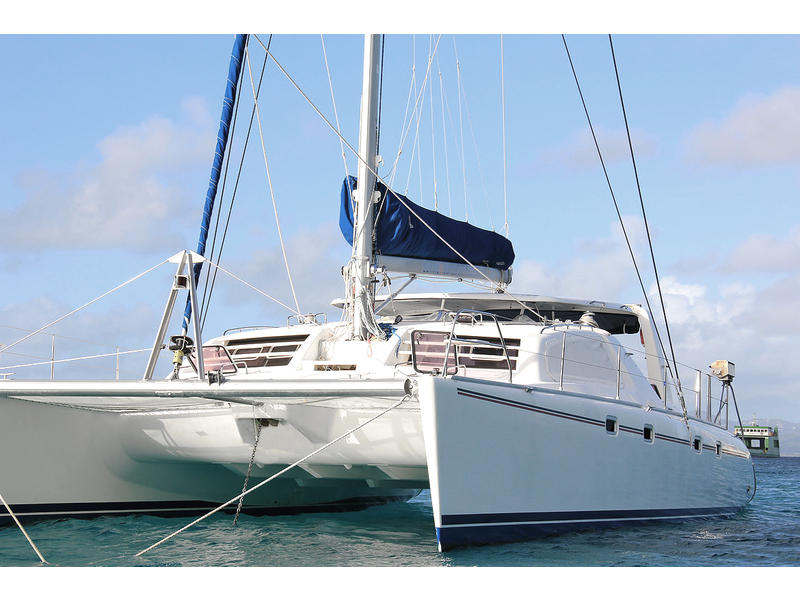

47' Robertson and Caine Leopard 47 Catamaran

Year
Length
Beam
Draft
Location
Price
2003
47'
24.10'
4.5'
Outside United States
$279,000

Description: More info visit: http://www.boatforsale247.com/
LOA: 46'9'' (14.25m)
LWL: 46'1" (14.05m)
Beam: 24'10" (7.57m)
Sail area: 1240sqft (224m2)

Displacement: 27850 lbs. (12633 kg)
Ballast: No, Twin Keel/Skeg
Draft: 4'5" (1.35m)
Clearance Height: 70'5" (21.46m)

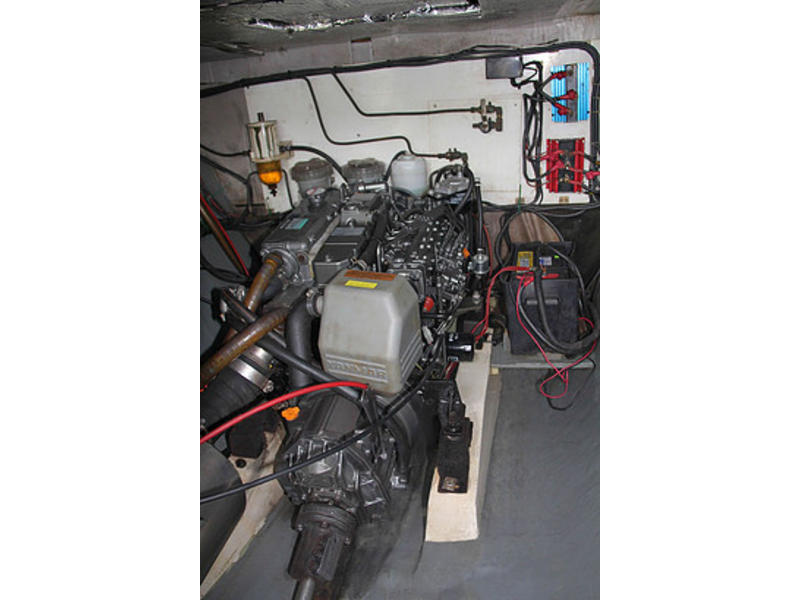

Engines: Two 4 cylinders, Diesel, 56 hp (40.5kW)
1 Engine Model: 2003 Yanmar 4JH3E
2 Engine Model: 2013 Yanmar 4JH3E
Designer: Alex Simonis

ACCOMMODATIONS
Number of cabins: 4, Number of bathrooms: 4

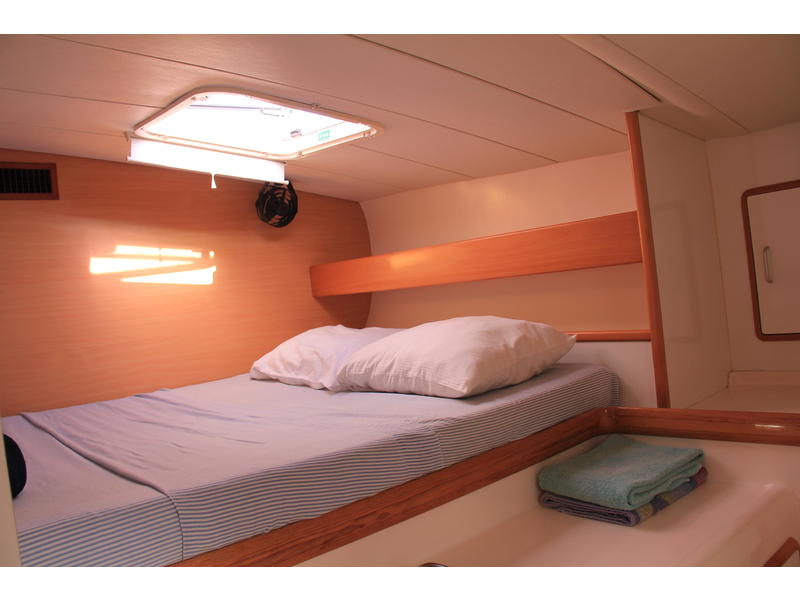

two forward and two aft in each hull. Each cabin has a double berth, an overhead hatch, overhead lighting and separate reading lights. The cabins also have a 12-volt, 2-speed fan, hanging locker and a small settee with additional storage under it. 110 volt

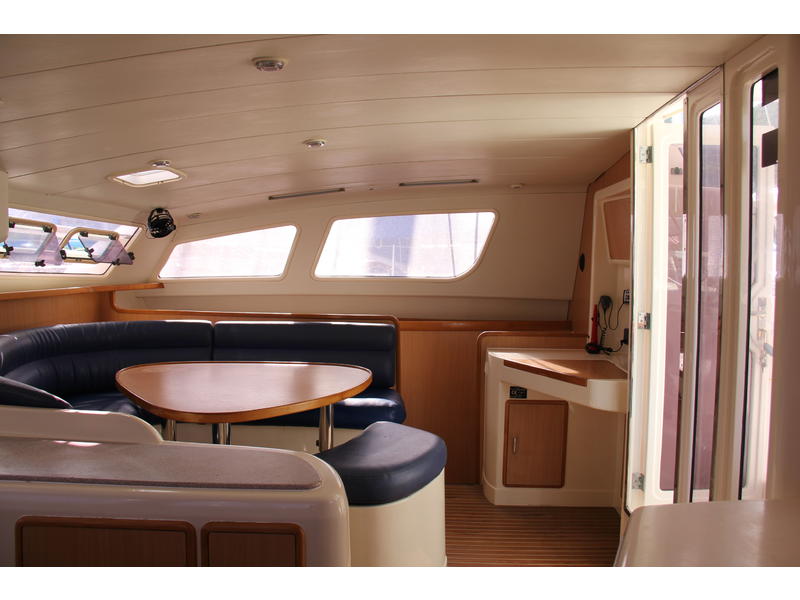

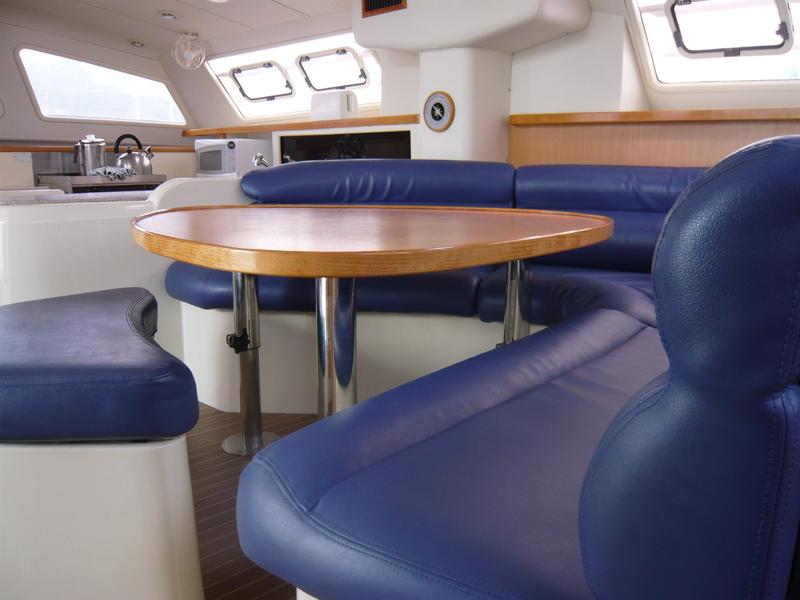

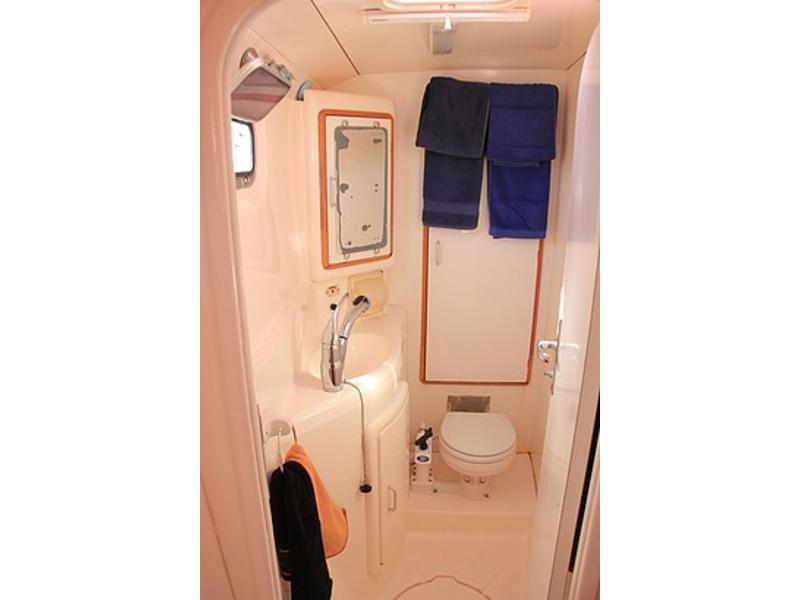

AC outlet under settee. There are four guest heads and showers ion every cabin. The toilet, cabinetry and lavatory basin are part of a continuous-molded unit. A holding tank is fitted on each side of the yacht, between the two head units. The tanks can be pumped out as well as gravity drained when underway. All thru-hulls and valves are easily accessible. Each shower has its own dedicated manually controlled sump pump. The Main Salon features a large U-shaped dinette, which can convert to additional berth for 2.

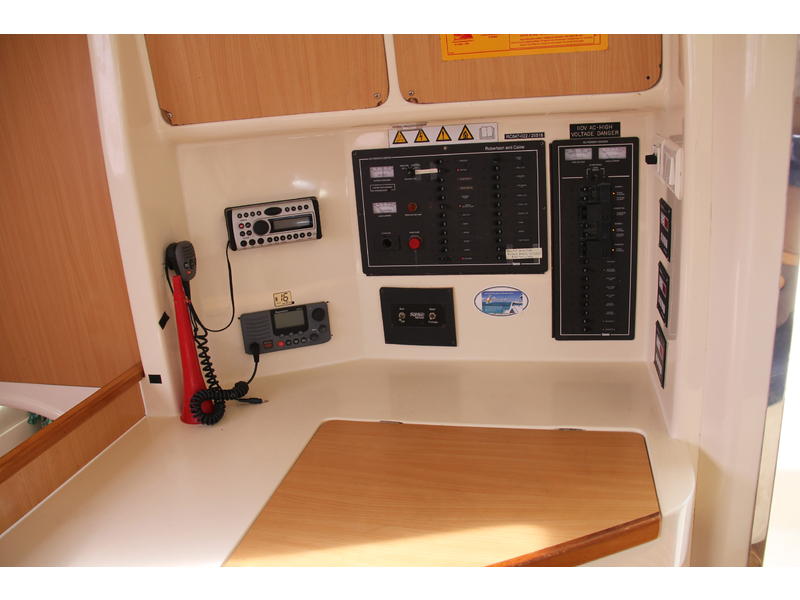

The U-shaped galley is forward to port and is also ventilated with an overhead hatch and two front ports. The navigation station is to starboard facing aft, there is a large refrigerated icebox aft to port, with port engine driven cold plate and 12volt refrigeration system. The high quality interior is a tasteful blend of wood; fiberglass and Corian. The cabin sole is durable, Teak & Holly composite floor panels.

Cabin Lights: Flush-mount Spotlight, Reading Spotlight
Dock lines: 8pcs Fenders: 4pcs
Hanging Lockers: 4pcs
Hatches: 5 pcs Lewmar Medium Profile
Port Lights: 6pcs Lewmar Opening Standard, 4pcs Lewmar Fixed Atlantic
Heads: 4pcs Jabsco, Manual
Holding Tanks: 2 gravity discharge / pump out holding tanks
Size: 2x24 gals. (2x90 L), PVC Plastic(steam-cleaned 2013)

Equipment: Bilge Pumps: 4 Jabsco with Pump-guard Strainers, automatic float switch
2 Manual Cockpit Mount
Fresh Water Tanks: PVC Plastic 206Gl.(780L), (steam-clean 2012)
Hot Water Tank: Nautical Boiler 1200W 110V, 10.6gal (40L)
Engine Coolant Feed
Pressure Water: 2 Shurflo Pump, Pump-guard Strainer
Sea Cocks: 16 pc (checked/cleaned 2013)
Showers: Hot Water, 4 pc Stalls, 1 pcs Swim Platform
Shower Drains: 4 pc Whale Gulper 221 Pumps
Sinks: 1 Galley Double Compartment, 4 Head Single Compartment
Steering Wheel:36"(0.91m)

HULLS
Hull: Laminated G.R.P. with Internal Fiberglass Grid Hull Liner
Bottom: Micron 66 Bottom Paint 2 coats(2013)
2 electronic anti fouling systems(2013)

Anchor Type: 1 Rocna 45lbs (2014), 1 Delta 35 lbs.
Anchor Chain: Chain 200ft, 20ft Chain, 150ft rope
Windlass: Electric, Lofran Tiger 1200W 12V, Wire Remote Controlled

OTHER EQUIPMENT:
Bow Pulpit Rollers: 1 pc, Marine Grate Rubber
Hatches Roll Up Blinds: Yes
Chart Table, Saloon Table: Yes

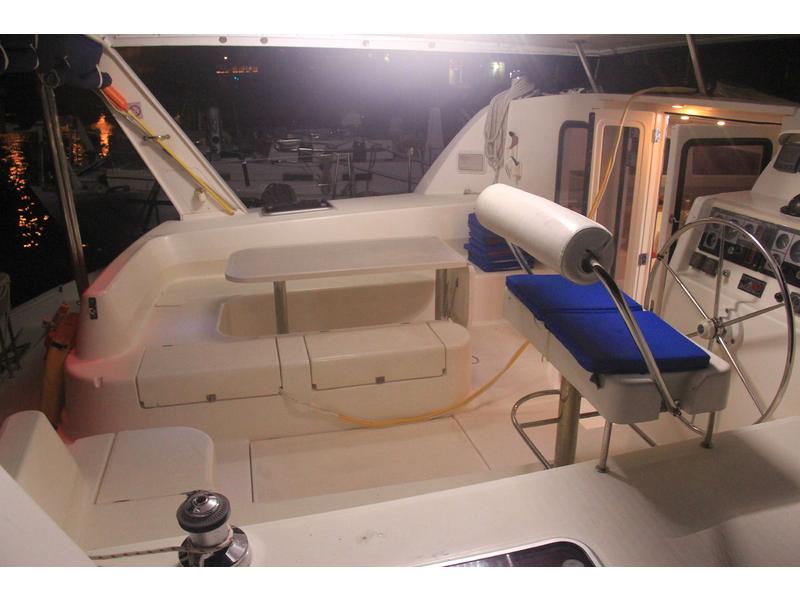

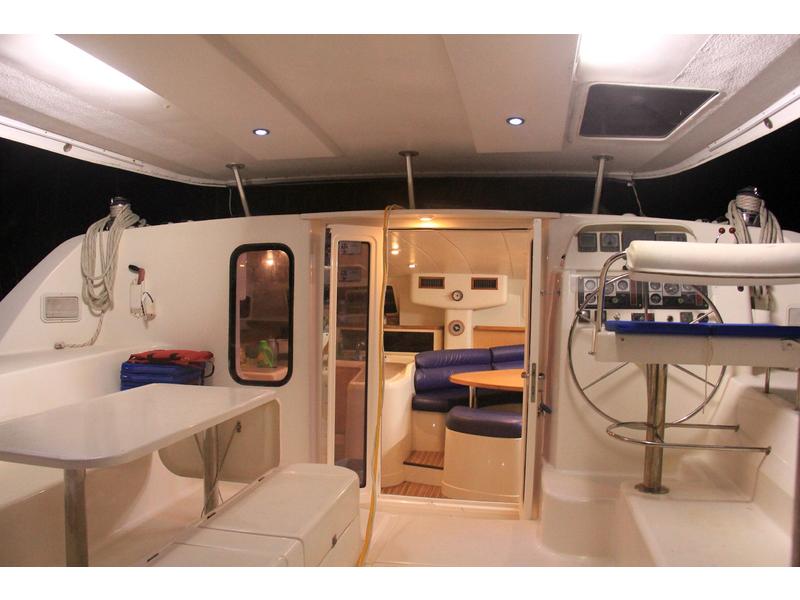

Cockpit Table: Fixed, Fiberglass
Cockpit Cushions: 8pc, Folding, Blue
Clock, Barometer: Yes Radar Reflector: Yes
Refrigerator / Freezer: Water Cooled
Shore Power Service: 2pc, 50Amp, Cord: 50ft
Spreader Lights, Anchor Light, Steaming Light: Yes
Navigation Lights: Hull, Bow Pulpit Mounted
Compass: Plastimo Olympic 135

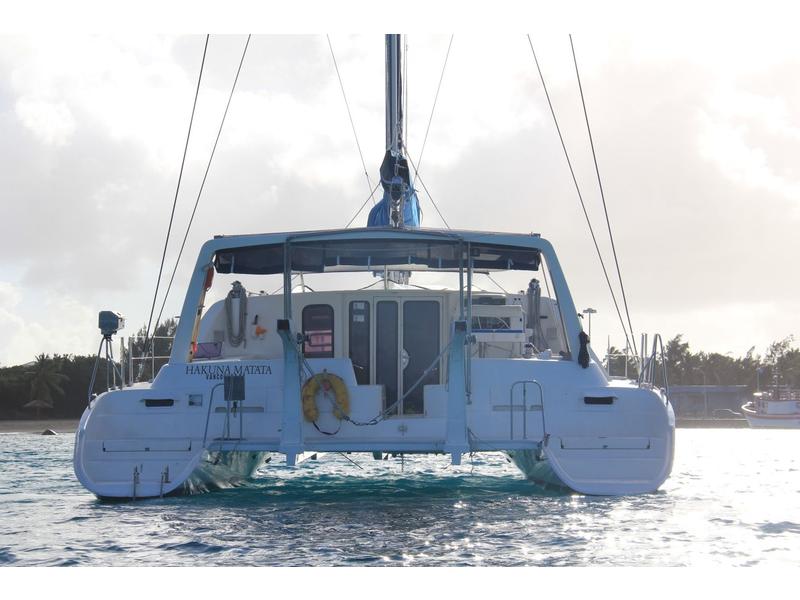

Bimini: Fiber Glass, Full inclosure(2012)
Swim Platform, Stern Rail, Swim Ladder: Yes Stainless Steel
Marine Safety Equipment: Flares(2013), 10 Life jackets, 1 Life Ring Buoy
Plastimo Transocean Life Raft (10 persons), 2 Life Harness
Man Overboard Buoy Deployment Marker: Yes

ELECTRONICS
Autopilot: Raymarine ST7001 Smart-pilot Controller
12V Liner Drive Type 1, Digital Display, Compass Sensor
Log/Speed/Temp.: Raymarine ST60 TriData (Cockpit Navigation Panel Flush Mount)
Wind: Raymarine ST60, Electronic Display (Cockpit Navigation Panel Flush Mount) Wind Sensor (Mast Top Mounted)
Satellite Navigation: Raymarine A65 GPS Chart Plotter
(Cockpit Navigation Panel Flush Mount, 2013), Caribbean Charts
Cd /Radio: Clarion AM/FM/CD Radio with 2 Bose cockpit & 2 Poly Planar interior speakers, Raymarine remote DSC VHF at helm
VHF Receiver: Raymarine Ray 218 VHF Radio (2012). Transceiver,
(Helm, 2013)
VHF Antenna: Shakespeare 5215-C-X. 3' VHF Antenna (Mast Top Mounted, 2010), VHF RG-213 Coaxial Cables (2011)

Battery Charger: 12V/40A
Meters: Analog Voltage Meter, Analog Ampere Meter
Battery Switches: 3 pc
Batteries: House 4 pc 700A/h (2014), 3 pc Engine Start 70A/h

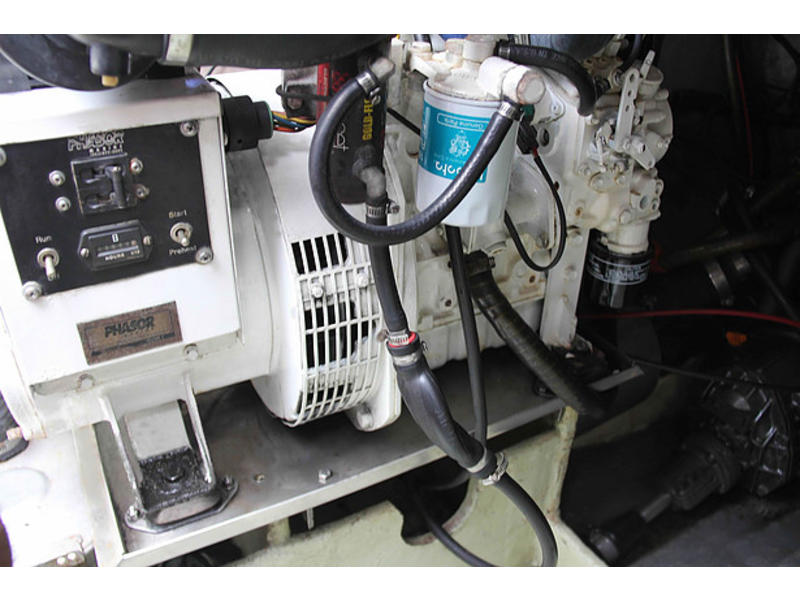

Generator: Phasor Marine Genset 9kW (2012)

Fuel Capacity: (158 USgal) 600L
Fuel Tank: Aluminium (alcohol-cleaned 2013)
Fuel Lines, Filter: 3 Racor 500MA Diesel Fuel Filter/Water Separator
(alcohol-cleaned 2013)

Fixed Propellers: 2 x 3 blade
Stuffing Box: 2 x Volvo Drip-less,Rubber(2013)
Anodes / Zincs: Propeller, (2014)
Cursing speed: 8 knots (2500rpm)

SAILS AND RIGGING
Mast/Boom: Anodized Aluminum Spreaders: 2 sets
Main: Full Batten (2013), Jib Genoa:120% (2013),
Genoa Furling: Yes
Traveler: Yes, Cockpit controlled
Toe Rails: Anodized Aluminum
Stanchions: 12 pc Stainless Steel
Life Lines: Double, Stainless Steel
Lifeline gates: 2 pc Stainless Steel
Winches: Lewmar 4 pc Self Tailing, 2-speed
Mooring Cleats: 8 pc, Anodized Aluminum
Winch Handles: 3 pc, Locking
Sail Cover: Sleeve Drop (Quick Cover)
Lazy Jacks: Yes, in to Sleeve Cover

More info: http://www.boatforsale247.com/

Location: BVI, Outside United States
L48089
(604) 803-1424

Material
Hull
Type
Rigging
Cabins
Condition
fiberglass
catamaran
cruiser
masthead sloop
4
excellent

Click on any thumbnail below for a larger photograph, or View All Photographs Inline

The URL for this page is www.sailboatlistings.com/view/48089

This Robertson and Caine Leopard 47 Catamaran Added 02-Feb-2015



Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image Robertson and Caine Leopard 47 Catamaran Click to launch Larger Image
