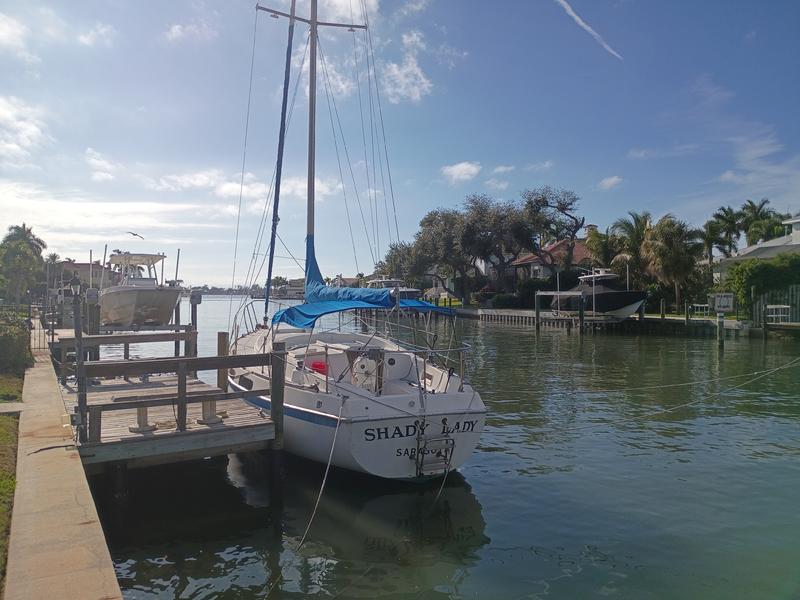

33' Morgan 33 Out Island

1976 Morgan Out Island 33 Specifications

Designer: Charles Morgan
Builder: Morgan Yachts (USA)
Type: Masthead sloop, center-cockpit cruiser
Construction: Solid fiberglass hull, balsa-cored deck
Keel: Modified full keel with skeg-hung rudder

Dimensions

LOA (Length Overall): 33 ft 3 in

LWL (Length at Waterline): 28 ft

Beam: 11 ft 6 in

Draft: 4 ft 0 in

Bridge Clearance: 47 ft

Weights & Capacities

Displacement: 12,500 lb

Ballast: 4,500 lb (lead)

Fuel Capacity: 20 gallons

Fresh Water Capacity: 60 gallons

Holding Tank: 20 gallons

Rig & Sail Plan

Rig Type: Masthead sloop

Mast: Aluminum

Sail Area (approx.): 500 sq ft

Typical Sails:

Mainsail

135=150% Genoa

Engine

Diesel: Perkins 4-108 or similar (40 hp)

Drive: Direct drive shaft

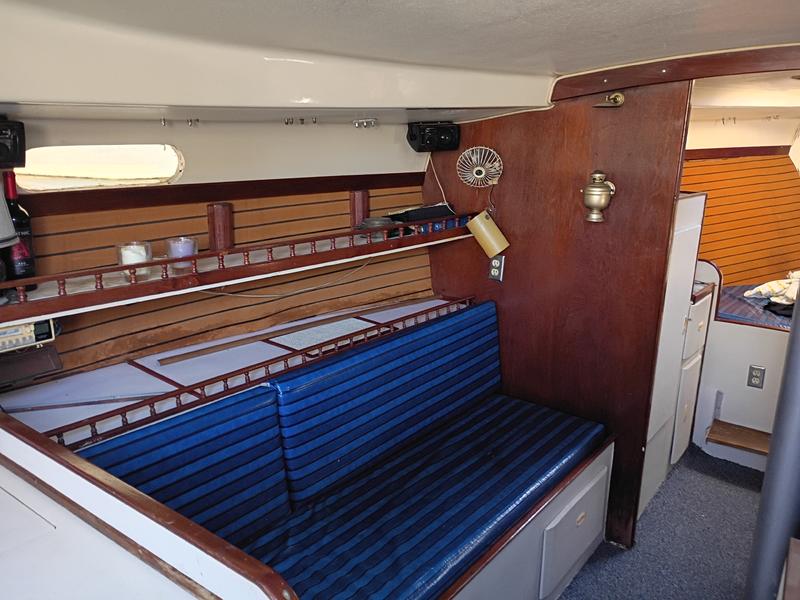

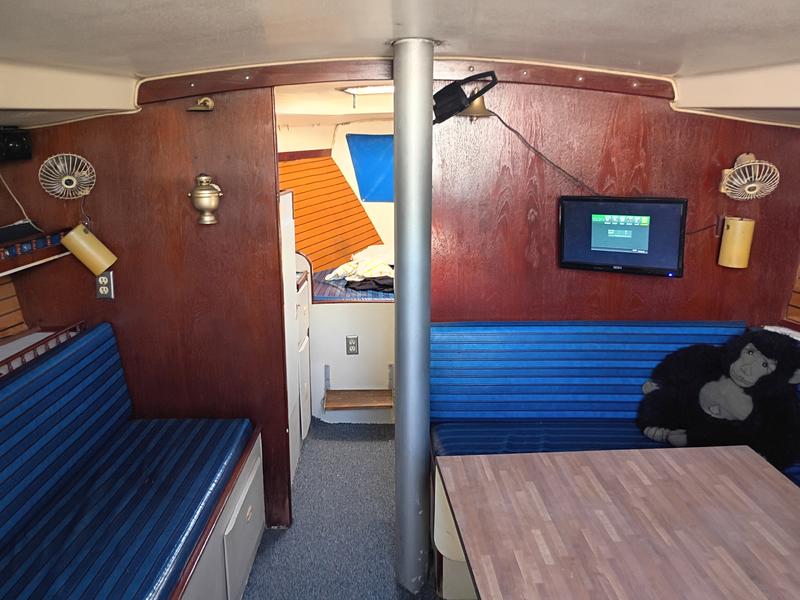

Accommodations

Berths: 56

Cabin Headroom: 6 ft 3 in

Layout Highlights:

Large aft stateroom

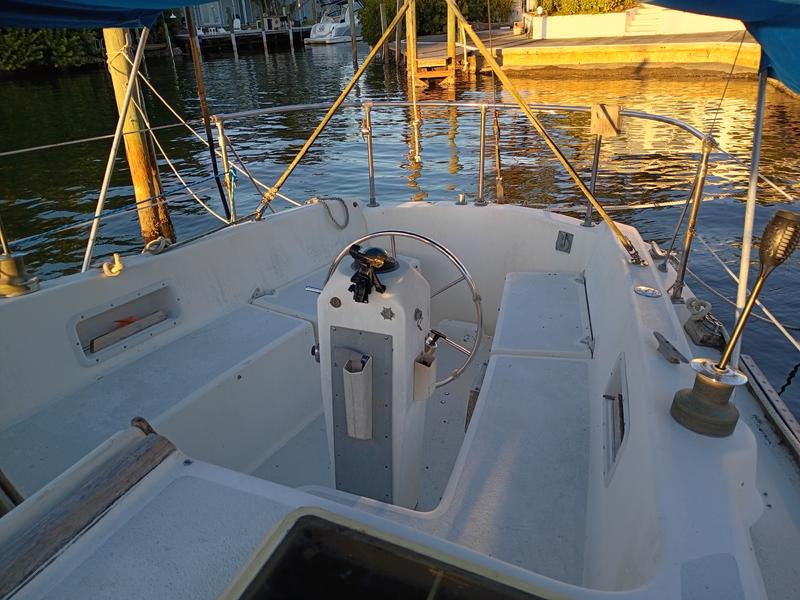

Center cockpit

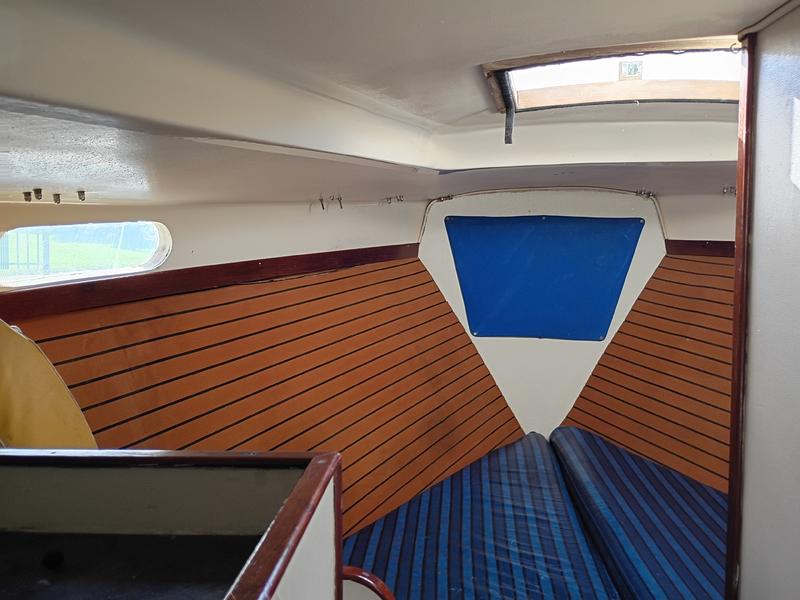

Forward V-berth

Single head with shower

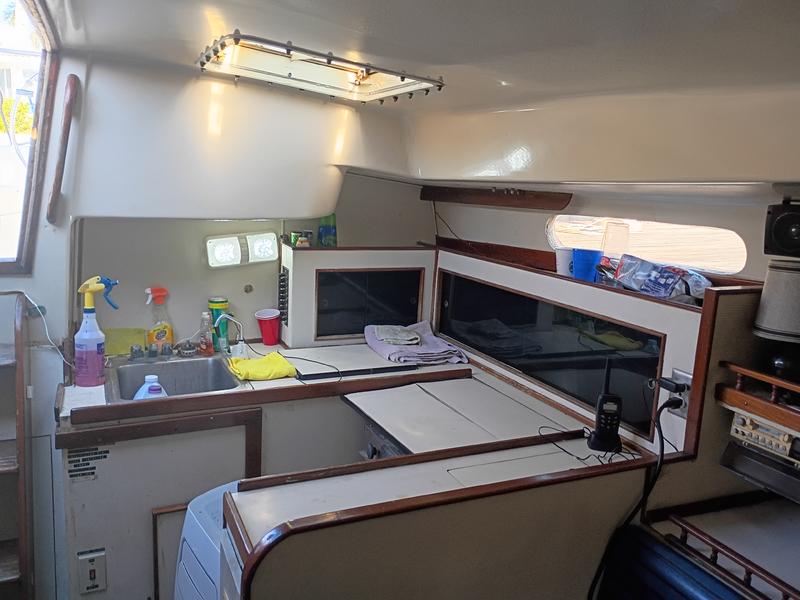

U-shaped galley

Performance & Use

Hull Speed: 7.1 knots

Best Use: Coastal cruising, Bahamas, Caribbean

Known Traits:

Heavy, stable cruiser

Comfortable motion at sea

Not a fast upwind boat

Very livable interior
