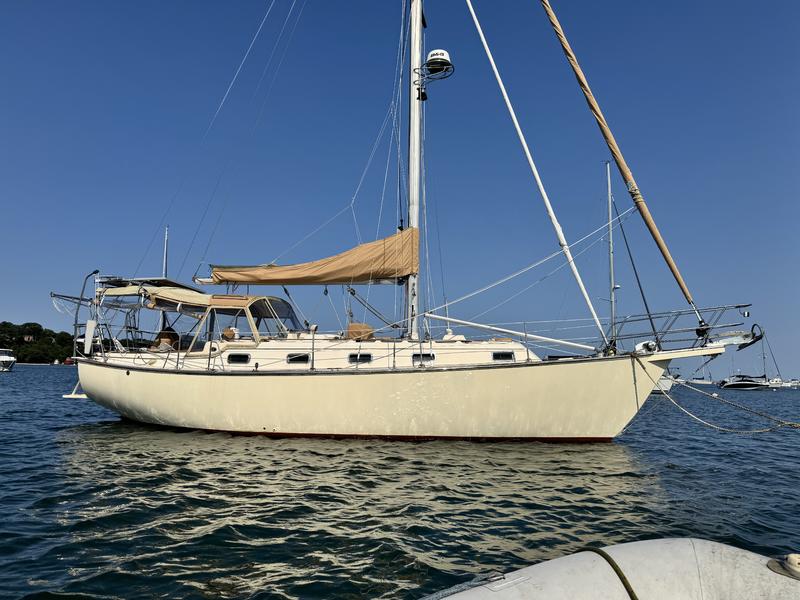

38' Island Packet ip35

Manufacturer: Island Packet
Model: IP35
Year: 1989
Keel: Full

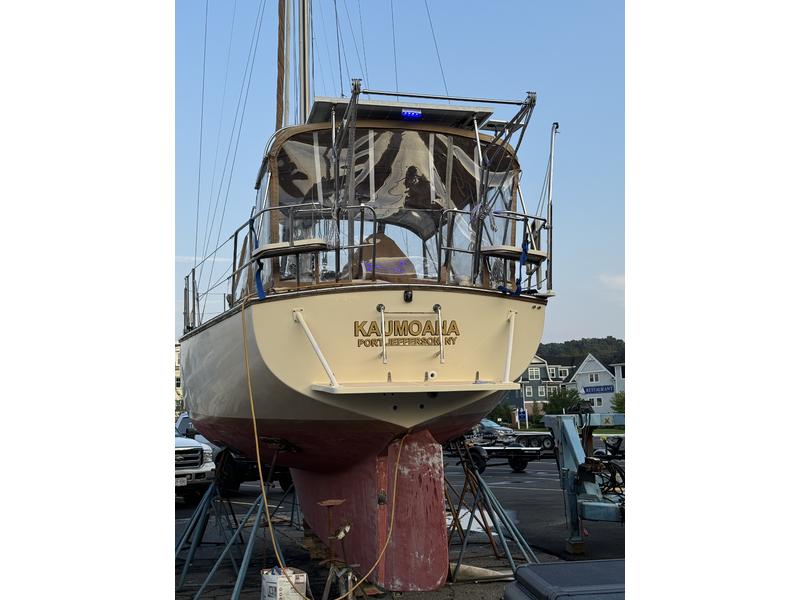

Vessel Name: Kaumoana
Location: Port Jefferson, NY
USCG Document #: 953132
Hull ID: TDL35019K889
Hull #: 19

Dimensions
LOA: 38 ft 0 in
Beam: 12 ft 0 in
Maximum Draft: 4.5 ft
Ballast: 9000 lbs
Dry Weight: 20000 lbs

Accommodations
Number of heads: 1

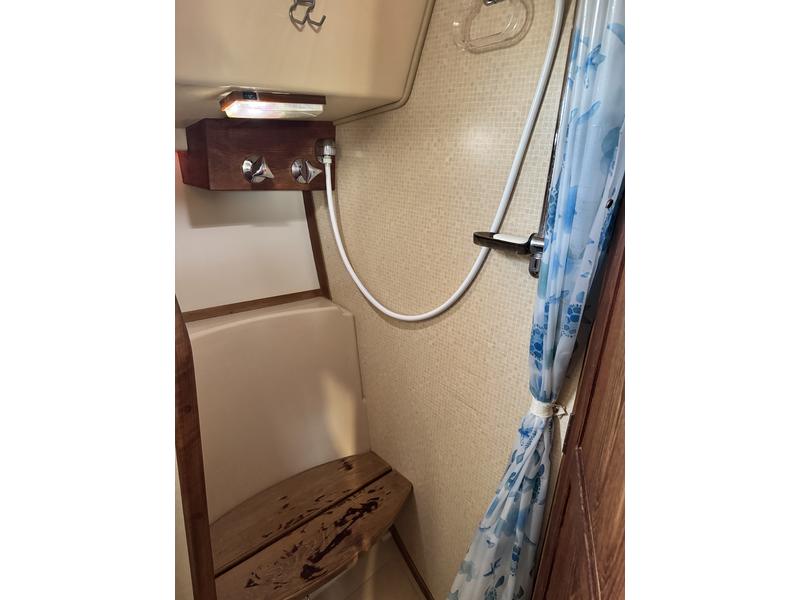

Separate Shower Stall
Cabins: 2 Double Cabins (Aft & Forward)

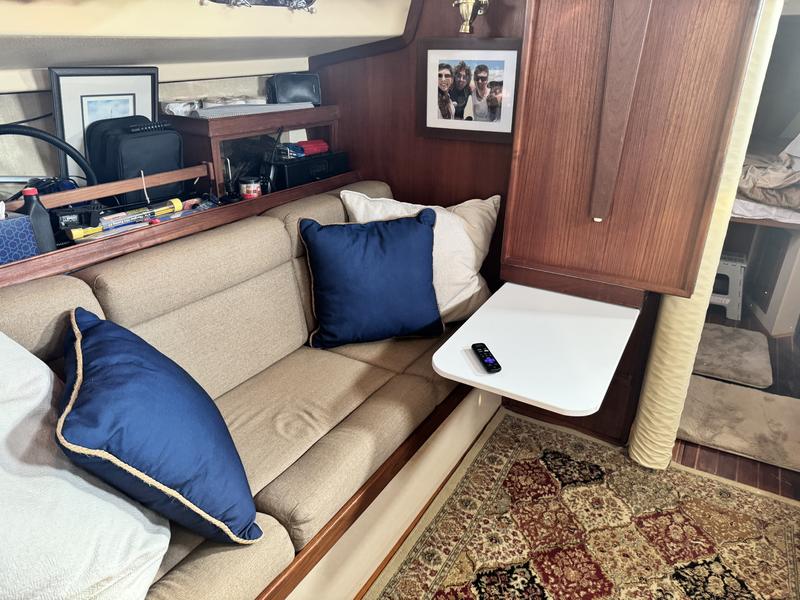

Convertible Saloon Double Birth With Lee Cloth

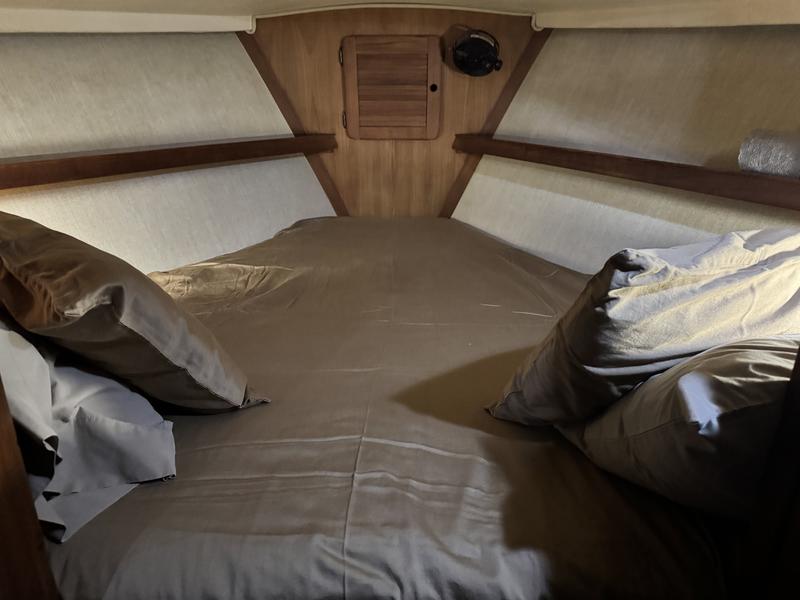

Custom V-Birth Mattress

Tanks
Fresh Water Tank: (90 Gallons)
Water Tank Resurfaced with Bar-Rust 233H Potable Water Epoxy

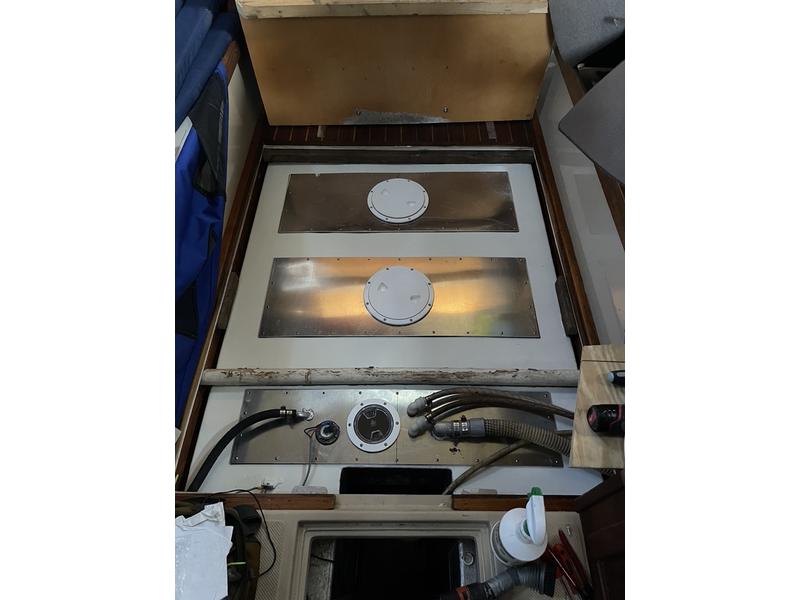

Removable Cabin Floor to Access 3 Large Access Plates
Access Plates have Inspection Covers For Quick Access & Cleaning
Water Tank Drain Plug For Easy Cleaning & Draining

Fuel Tanks: (48 Gallons)
Holding Tank Replaced 2023: (18 Gallons)
Dometic DVF Holding Tank Vent Filter

Engine & Drive
Engine: 1
Engine Brand: Yanmar
Year Built: 1989
Engine Model: 3HM35F (Fresh Water Cooled)
Engine Power: 35 HP
Engine Type: Inboard
Engine/Fuel Type: Diesel
Engine Hours: 2005
New Injectors 2020
Racor 500 Fuel Filter with Vacuum Gauge & Drain
Cutlass Bearing Replaced 2020
PSS Dripless Seal
Maxprop 4-Blade 17
Motor Mounts replaced 2025
Exhaust Elbow Replaced 2025
Cruising Speed: 6 knots @ 2400 RPM
Maximum Speed: 7 knots




Sails & Canvas
Chain Plates Replaced 2025
Standing Rigging Replaced 2025
Electric Selden Furlex 204E 2025 Furler
Electric Starboard Selden Winch - Selden E40I 2021
Pro Furl Stay Sail Furler
Main sail w two reefs - 2018 Mack Sails 7.62 oz Marblehead Premium Dacron
Furling genoa 130% 2018 Mack Sails 6.77 oz Marblehead Premium Dacron
Furling Stay Sail - 2018 Mack Sails 7.77 oz Marblehead Premium Dacron
Spinnaker - North Sails with sock
Masthead NG2-2 Spinnaker Crane w halyard run through mast
Tides Marine Sail Track
All Old Sails (In fair condition)
Main Sail Cover
Hard Dodger with Red & White LED Lighting
Bimini Top
Dodger Extension Panel

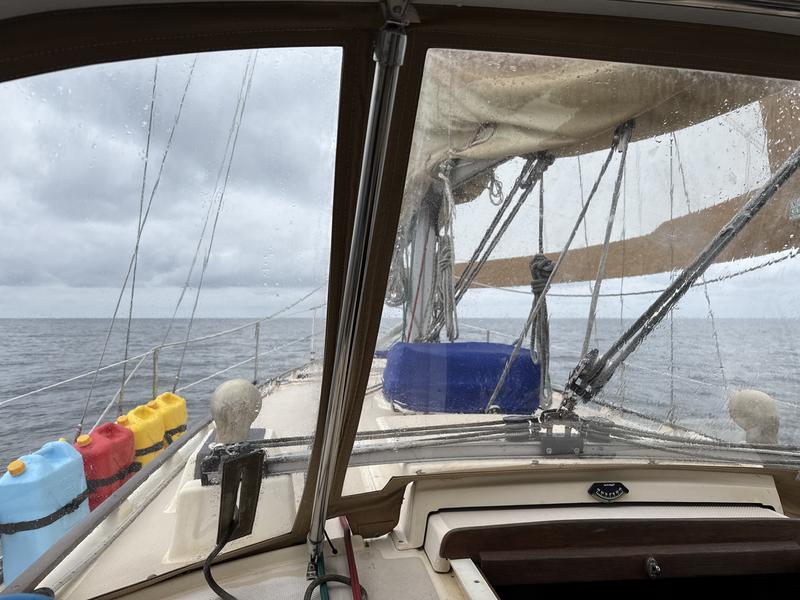

Full Enclosure
Electronics
FLIR M232 Thermal Camera Bow Mount Removable (2025)
Star Link Mini (12 Volt Powered)
Vetus 55 Bow Thruster
MFD B&G Zeus3 9 Display W/ Navionics
Radar B&G 4G

Electronics
AIS Vesper XB8000
Autopilot B&G NAC-3/T2 RAM/Edson Tiller Arm
Autopilot B&G Triton 2 Autopilot Controller
Autopilot B&G Hand Held Remote BM-1
Displays (2) B&G TRITON 2 (Cockpit and Nav Station)
Depthsounder B&G DST800 Depth, Speed & Temp
Forward Scan B&G
Wind B&G WS320 Wireless Wind Sensor New 2026
Siren Marine Siren 3 Pro (Boat Security & Monitoring)
Compass B&G Precision 9
Stereo B&G Sonichub 2
Cockpit Fusion Speakers
VHF - Standard Horizon with Remote Mic @ Helm
High Water Alarm
Balmar SG-200 Battery Monitor With Blue Tooth
Xantrex Freedom XC 2000/80 Power Inverter/Charger With Remote Panel at Nav Station
Start Battery and Bow Thruster Batteries (Lead Acid)
600 AH House Batteries (LiFePO4)
Victron DC-DC Charger Orion-Tr 121230
Victron MPPT Controller
400 Watts of Solar
20 Watt Start & Bow Thruster Battery Solar Charger

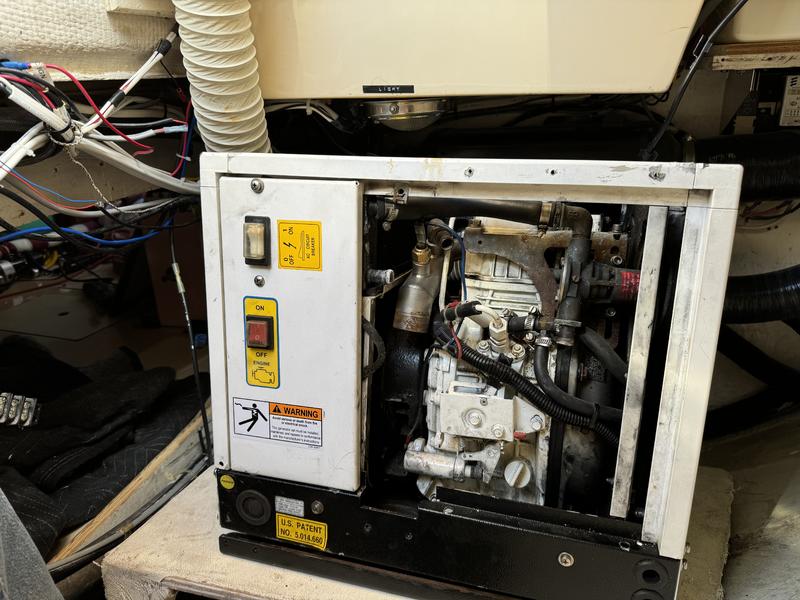

MASE is2.7 Generator 2.2 kW (Under 505 Hours)

Inside Equipment
USB Outlets Nav Station
All (11) Porthole Safety Glass & Seals Replaced
All (11) Porthole Screens Replaced
All Lights LED Except Steaming and Deck
LED Anchor Light
Water Heater Replaced 2019
Chronomite Cm-12L/120 110F Electric Tankless Water Heater For Shower
SeaAir Air Conditioning / Heat 5,000, 9,000 & 12,000 BTU (12 Volts) 2025
Espar Diesel Heater (Non Functioning Needs Repair)
Fresh / Salt Water Toilet Supply Flush

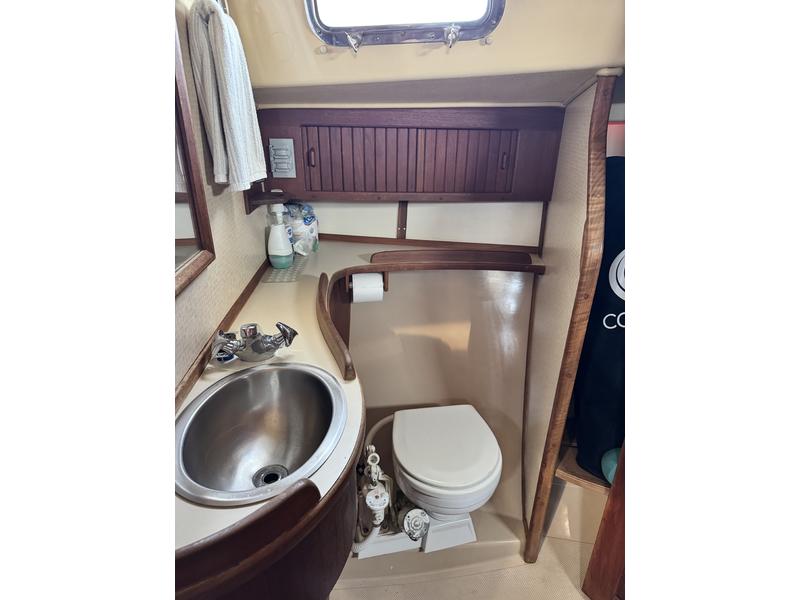

Electric Flush Toilet
Waste Hoses Replaced in 2019
Gulper Waste Discharge new 2019
Separate 2.5 Gal Drinking Water Supply & Pump w/carbon filter

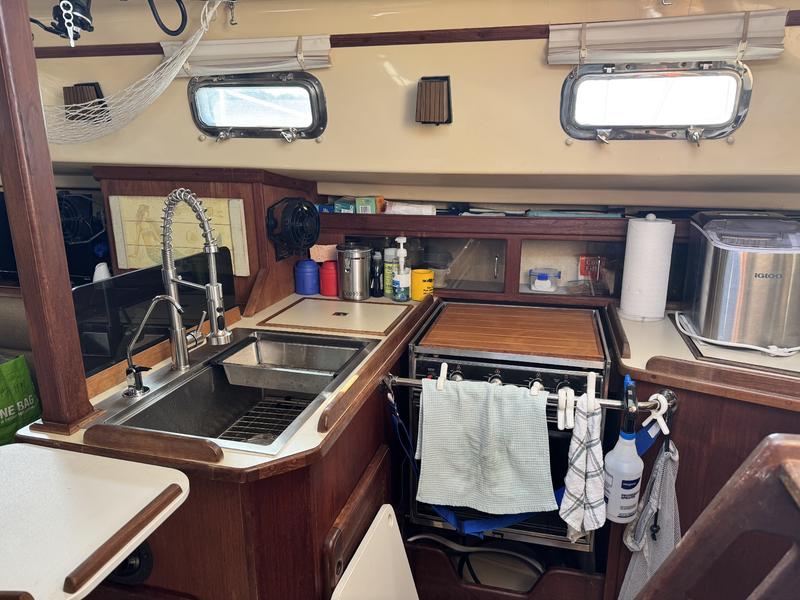

Refrigerator
Deep freezer
Oven Dual Propane tanks, Force 10 3 burner stove
Electric bilge & Sump Pumps
Manual Bilge at the helm

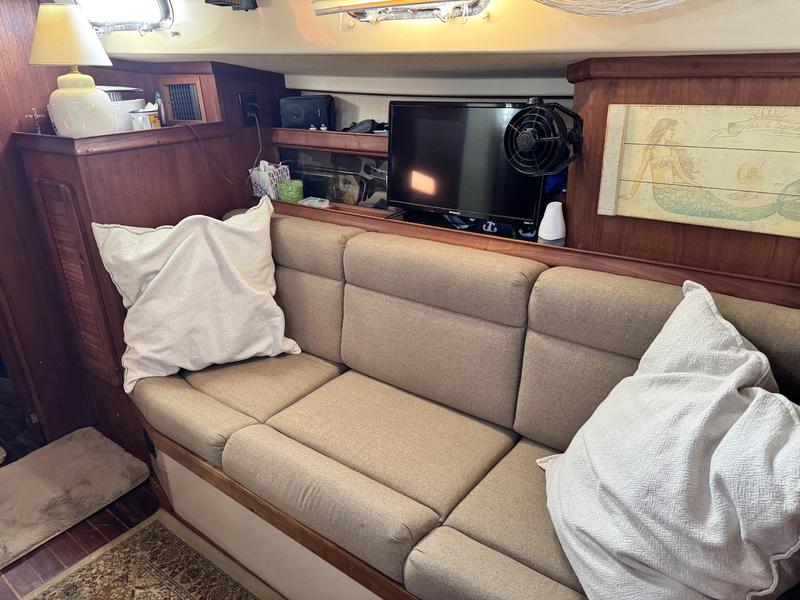

Lee Cloth Port Sette
Storage Doors Replaced w plexiglass doors
Smart TV

Outside Equipment/Extras
4 Person Revere Life Raft In Deck Cradle 2025
USB Outlets Helm
Cockpit Curtesy Light
Richie Island Packet Yachts Compass
Forespar Nova Lift engine lift
St. Croix 400 Dingy Davits
Deck 5 gal Jerry Can mount with (2) diesel (1) water (1) gas
Blue Transom Flood Light With Remote On/Off
Edson Outboard Mount
Cockpit table & Drink Holders
Fiberglass Custom Swim Platform with Deep Swim Ladder and Grill mount
2 Mile Visibility LED Running/Navigation Lights 2025
Bow Pulpit with 2 rollers for Dual Anchors
Lewmar H3 Gypsy / Drum Windless
Lewmar H3 Manual Recover System new
Windless Remote & Helm Switch
Rocna 20 (44 Lbs) with 200' 3/8 chain 200' 5/8 Rode New 2019
Fortress FX23 Spare Anchor In Sail Locker
Cockpit cushions
Tender - 2016 Highfield 9 6 Dinghy with Nissan 9.9 hp 2 cyl outboard.
Tender Mantus Dinghy Anchor, Emergency Dinghy Ladder & Navisafe Nav Lights
Dinghy Trailer - Axel, Hubs, Tires, Springs and Fenders replaced in 2025
Hatches 5 Total - Glass Replaced 2019
Fenders (4) 10 X 28 PYI Fendertex new 2023
Fenders (2) 18 X 40 DScraft Inflatable Fenders new 2023
12 Volt Inflator wired to Cockpit Outlet
Fresh / Salt Water Wash Down Outlet @ Bow W / Shurflo Pump 4 GPM 60PSI
Shore power inlets (1 - 30 Amp House/Charger)
Hull Was Painted in 2025 with Alexseal Custom Color Match Paint
Items included but not installed:

1. Echotech Water Maker 120 Volts (Not Installed) Needs Filters
2. Gold hull Pin Striping
3. Winter Cover with Frame Hardware to assemble Frame (No Structural Tubes Included)
