1938 Fellows & Stewart Classic Yawl located in Outside United States for sale

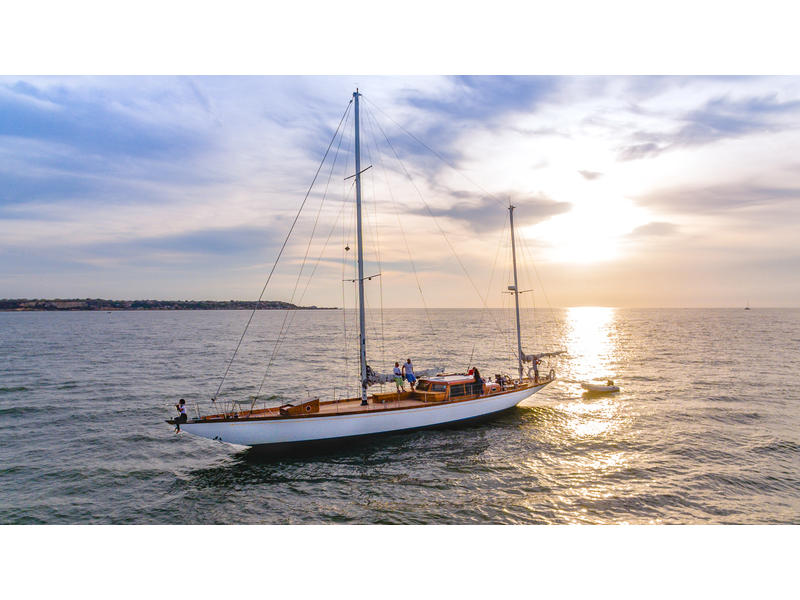

73' Fellows & Stewart Classic Yawl

Year
Length
Beam
Draft
Location
Price
1938
73'
13.3'
10'
Outside United States
$168,000

Description: For sale by owner, the 'Diamond Head' is a stunning piece of yachting history. She is a beautiful historical Yacht from the era of early Millionaire yacht owners of the past. A true classic beauty with a nostalgic sense from a rich glamorous and classy era of elegance. She has just completed a 4,000 mile trip from Seattle, Washington to Cartagena, Colombia, with further plans to continue toward charter opportunities in the west Indies; which underscores her strength and reliability. She could also be delivered should that be of interest.

Diamond Head was built in 1938 at the Fellows & Stewart yard in Wilmington, California to a design by George Craig. Fellows & Stewart was well known for building high quality yachts and only the best components were used. The yard reportedly spent years acquiring a cache of long boards for her hull planking which is double planked Philippine mahogany. Frames are 3 by 3 bent oak on 15 centers. She is fastened with bronze screws. Her deck is teak over pine planking on 2.5 by 3.5 deck beams on 13 centers. Her keel is cast lead fastened with bronze bolts.DIAMOND HEADS hull design is a classic full keel racing configuration with long graceful overhangs.

She has a colorful history as a Transpac racer, maybe most notorious for a man overboard incident in the 1951 Transpac when Ted Sierks, a 40 year old Life Magazine photographer who was aboard to document the race, fell overboard 800 miles from Hawaii. After LAPACHE (previous name of the Diamond Head) and several other boats searched for him in vain, some Navy vessels joined in and miraculously found him alive after almost 30 hours in the water

Equipment: Propulsion:
Perkins 120 HP 6 cylinder Engine 3544 M
Borg Warner Hydraulic Transmission AS7-72
Three blade fully feathering 900FG Max-Prop
Dripless Shaft Seal
2 stainless steel shaft

Tankage:
Freshwater fiberglass tanks with 400 gallon capacity
Fuel tanks fiberglass 450 gallon capacity

Electrical:
(4) large 12 volt batteries make up the House Battery Bank
(1) large 12 volt battery makes is dedicated as the starter battery
(4) 8 volt batteries make up the 32 volt battery bank
12v charger
32 volt charger
12 and 32 volt bilge pumps
12 volt charging alternator
32 volt charging alternator
3 stage heart charging regulator
Honda Backup Generator EU2000i 30 amp
(1) 250 Watt solar panel


Navigation:
Electric Autopilot, Com Nav Commander

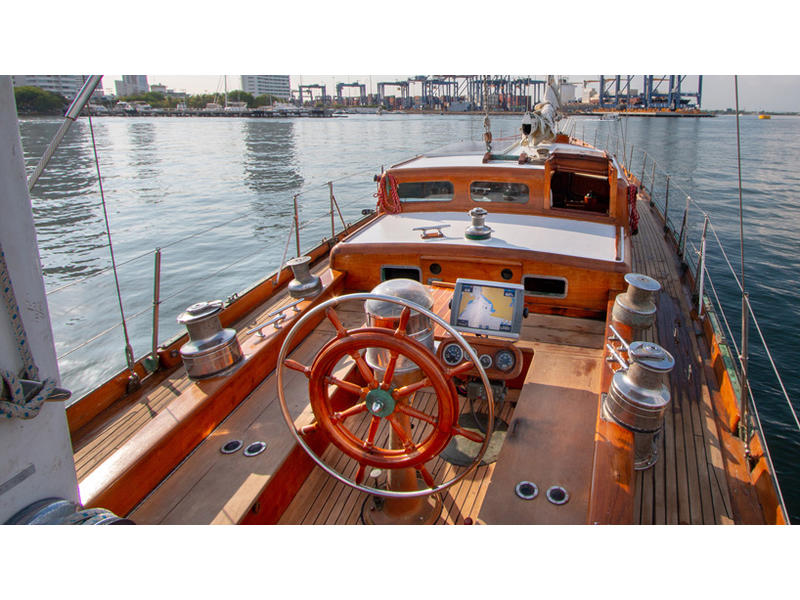

Binnacle has large Kelvin & White Compass
Garmin Radar/chartplotter
VHF radio
Garmin InReach with SOS
Backup handled Garmin GPS


Rigging/Decks and Anchors:
Aluminum main mast and mizzen mast
35 lb fluke Anchor 250 ft. inch galvanized chain and nylon rode extension
28 lb fluke Anchor
Vertical Electric Stainless Steel Anchor Windless
Stainless Steel Stanchions and double lifelines

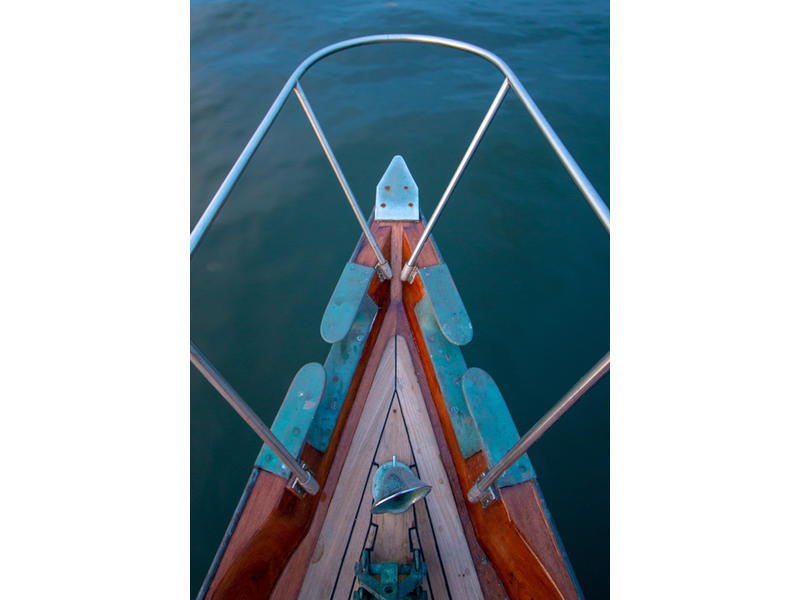

Bronze Chaulks at bow with Stainless Mooring Cleat
Teak cockpit table
Two Barient 37 ST electric winches
Many extra blocks and tackle

Cabins/Berths:
Forward stateroom cabin has a private head and 2 berths, one double and one single

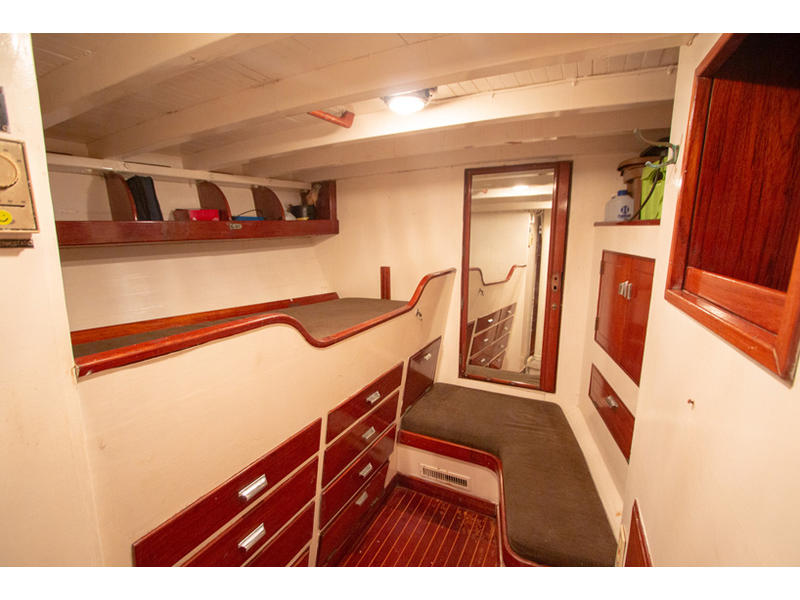

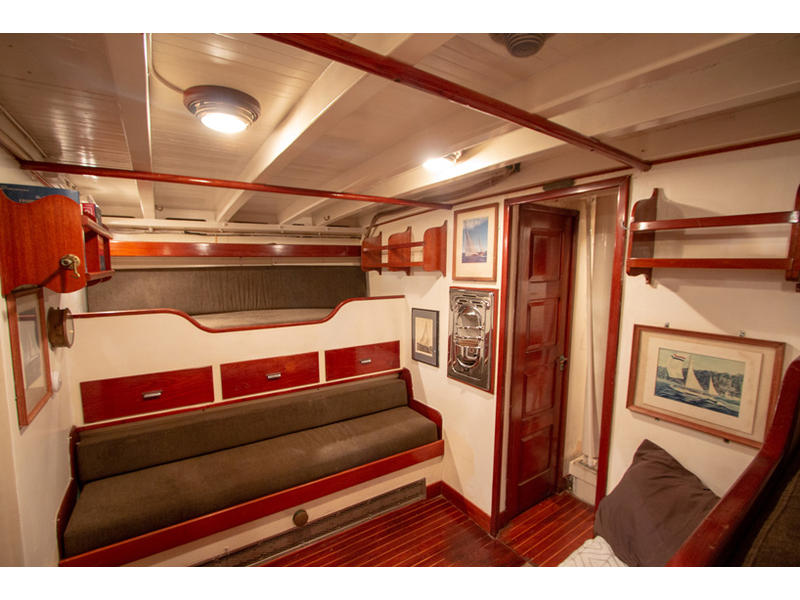

Mid stateroom has 4 berths two of which convert to couches

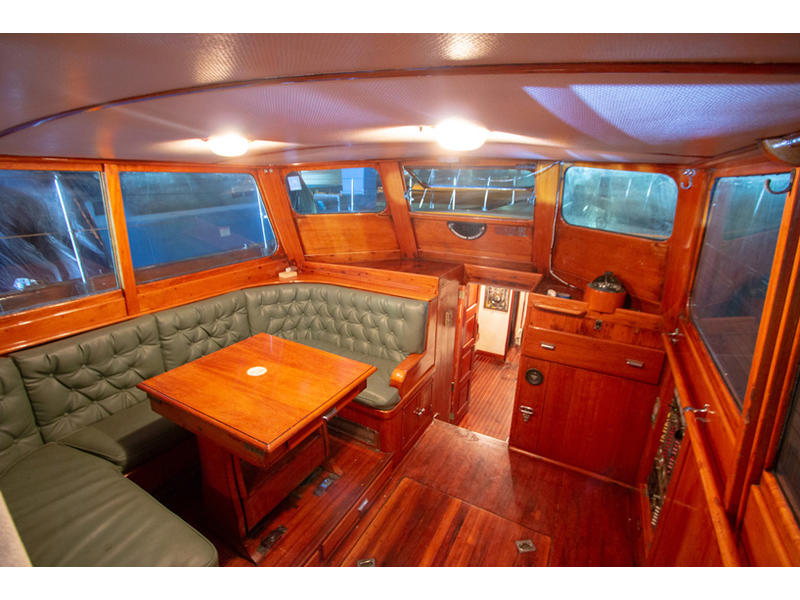

Salon and mid stateroom share a mid-ship head
There are 2 crew berths in the fore-peak for a total sleeping capacity of 9 people

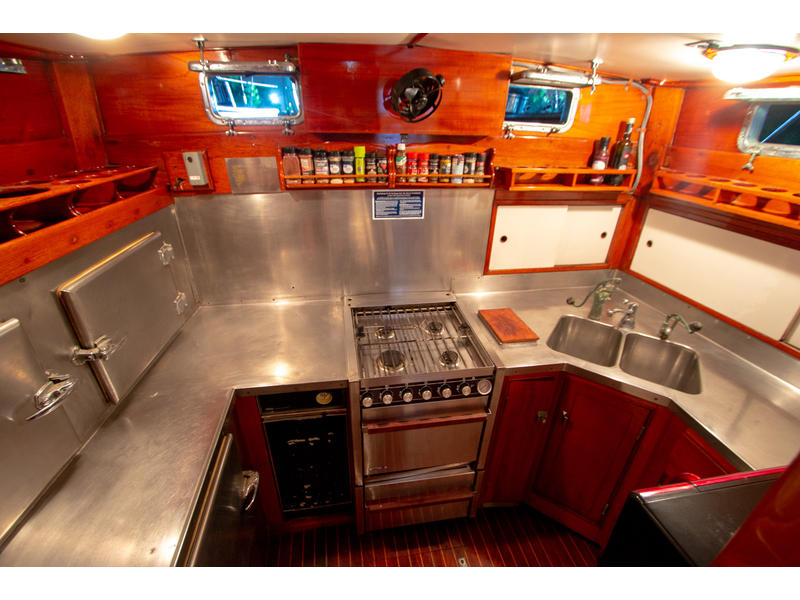

Galley:
Force 10 Propane four burner Stove/Oven
Microwave
Front loading Fridge
Stainless steel U shape countertops
Two 30lb propane tanks mounted in deck lockers

Sails:
Roller furling Headsail
Fully battened mainsail
Mizzen sail

Other:
Inflatable tender
9.9 HP tender outboard
Two Vacuflush heads with holding tank and overboard configuration

Location: Cartagena Colombia, Outside United States
L81701
1-206-432-1307

Material
Hull
Type
Rigging
Cabins
Condition
wood
monohull
racer/cruiser
yawl
2
good

Click on any thumbnail below for a larger photograph, or View All Photographs Inline

The URL for this page is www.sailboatlistings.com/view/81701

This Fellows & Stewart Classic Yawl Added 06-Aug-2019

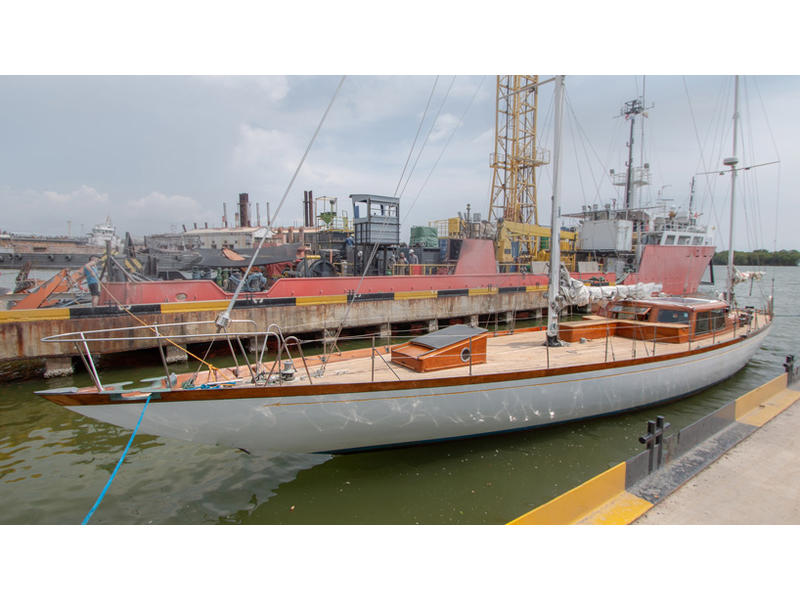

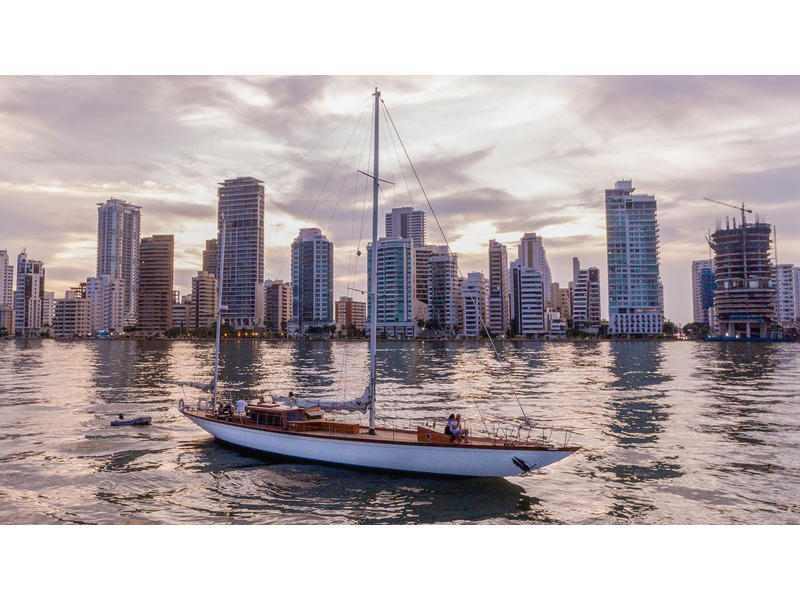

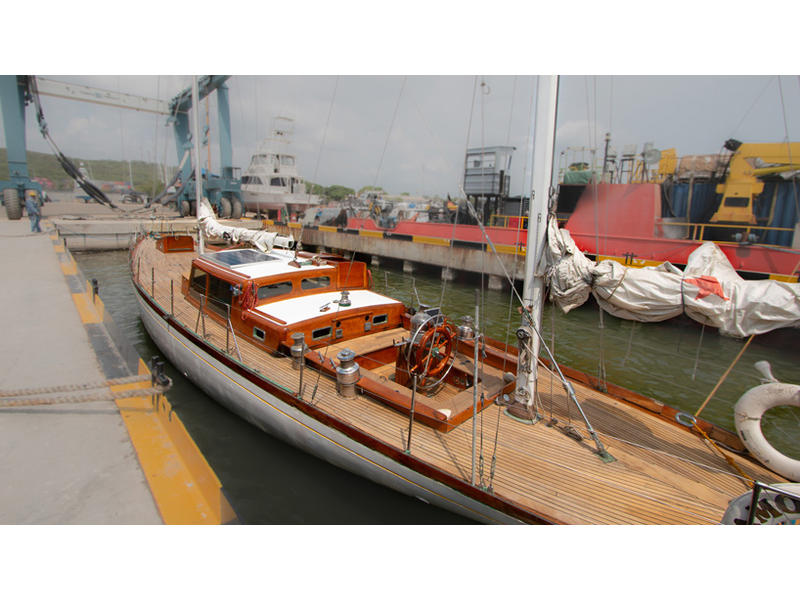

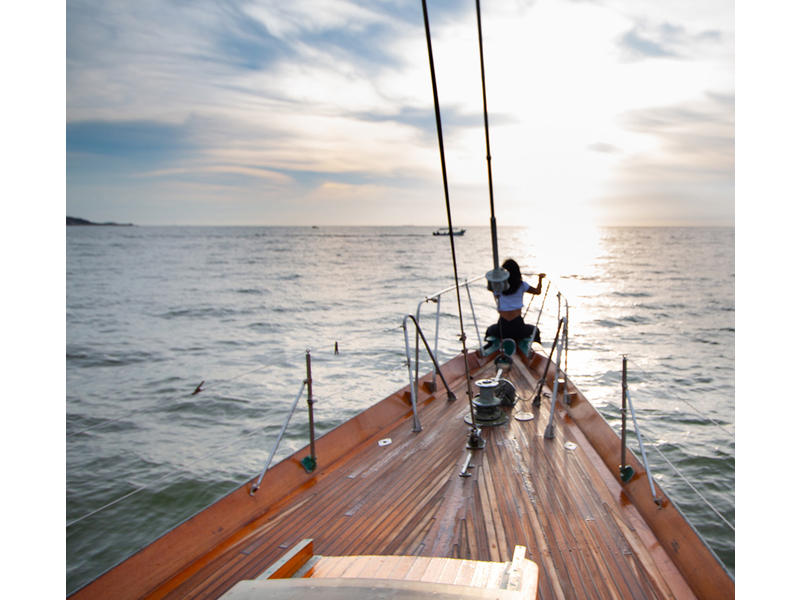

Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image Fellows & Stewart Classic Yawl Click to launch Larger Image
