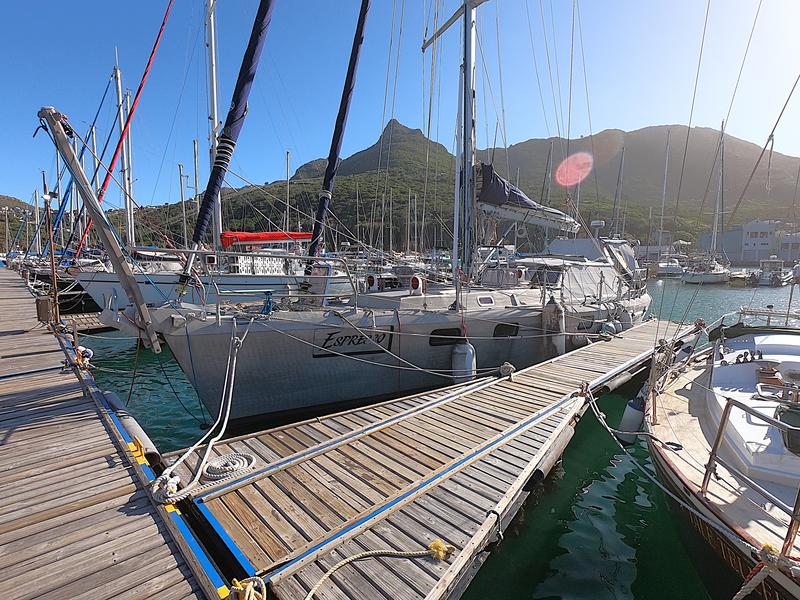

51' Jacobs Brothers Southwell 51

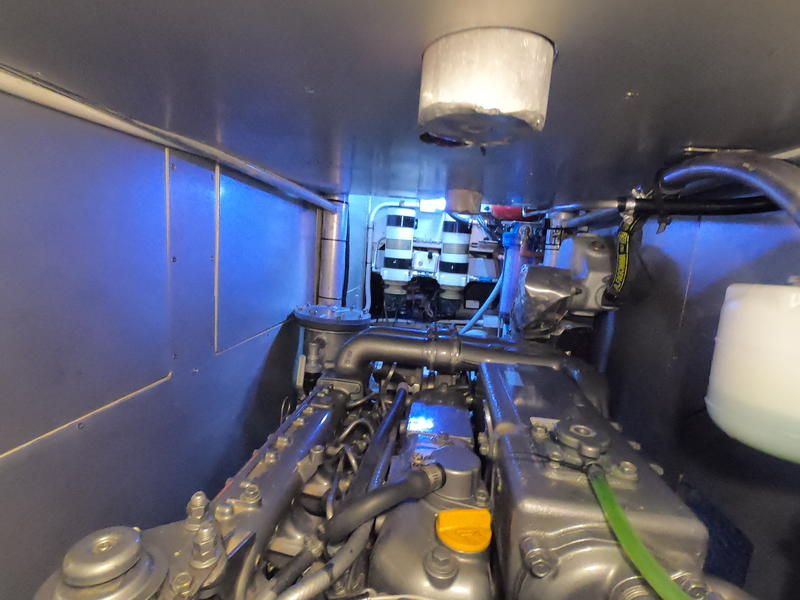

Yanmar 4JH3 HTBE with KM4 Gearbox
Engine
Year 2004

Shaft w/ PSS seal / Bullflex coupler / 45 dia
Propeller
Fuel Type
3 blade Maxprop furling propeller 3 blade 23 inch
Diesel
Fuel Tank
Filtration System
1000L in 2 tanks, 80L day tank
Day tank fed by dual Racor filters 1000F

PLEASE CONTACT FOR FULL INVENTORY AND EQUIPMENT

Winches 2 x Anderson 62ST- Outer foresail
4 x Anderson 46 ST Inner foresail
1 x Lewmar 36 Mainsail traveller (2 clutches)
Lewmar 48 CST Mainsail
Lewmar Model 48CST for reefing
Clutches 4 for foresail sheets built into turning blocks.
2 for Profurl furlers
1 x vang
1 x Mailsheet
1 x Boom brake
2 x Davit raise.
Blocks 20
Tracks 4 foresail, 1 mainsail traveller. Harken 30mm
Cars 6

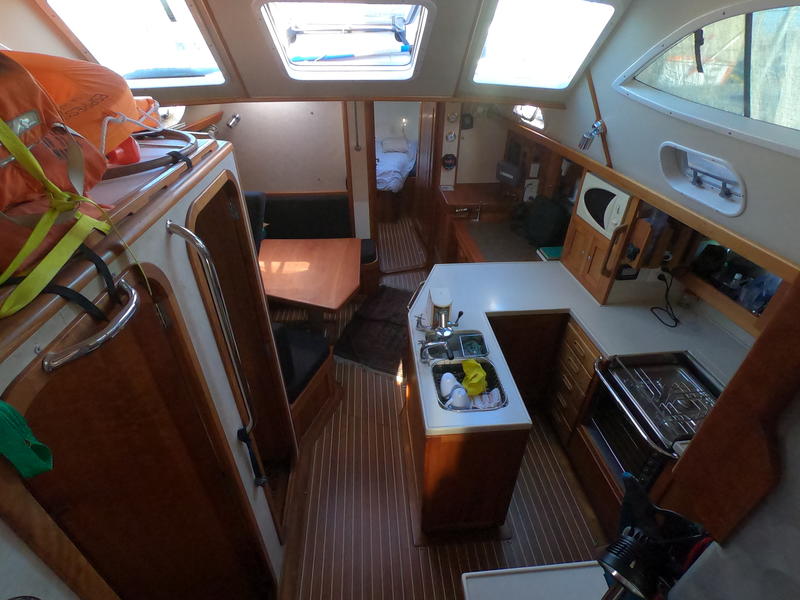

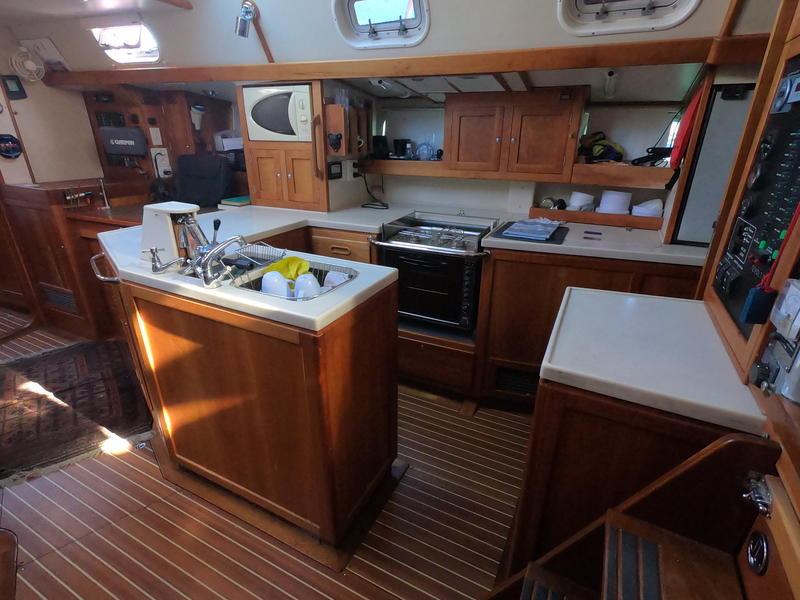

Stove Smev 3 burner gas stove oven
w/ Dometic extractor fan/filter
Oven/Grill 1 gas, 1 microwave
Gas Bottle(s) Propane 2 bottles / Xintex gass sniffer / solenoid Leak tester gauge.
Sink 2 Double stainless sink on centerline
Fridge 12v 75L Vitrifrigo
Freezer 100L
Fans 3 Hella 150mm 1 x stove extractor/blower 6 in total on boat
Other Professional manual Wega espresso machine E62 head.
Fresh to fresh reverse osmosis filter remineralizer for drinking water. Drawing from built in hull tanks.
Fresh Water System Pressurized hot and cold water system to galley, heads, and
transom shower. Saltwater at Galley. Saltwater & Fresh high pressure deck wash at bow. Fresh to fresh reverse osmosis filter remineralizer for drinking water. Drawing from built in hull tanks.

Fresh Water Tank 1300L in 3 tanks
Gray Water Tank None

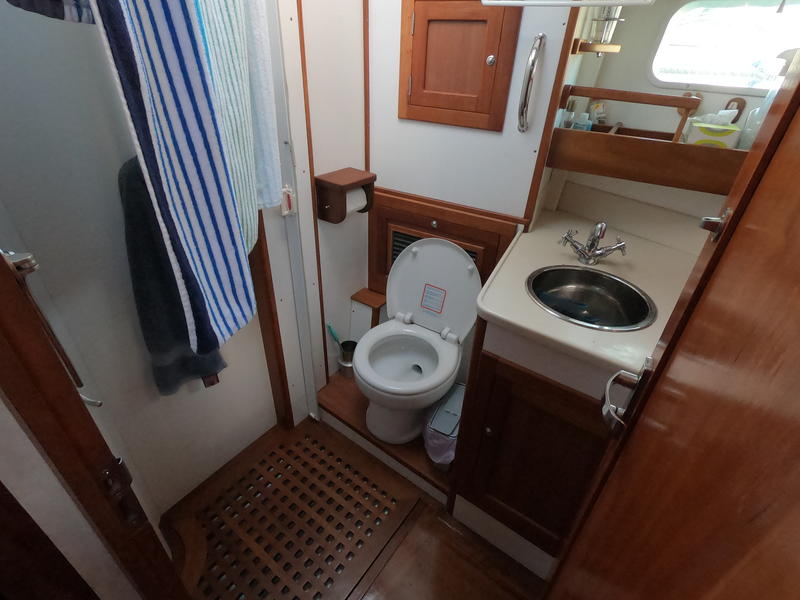

Black Water Tank 2 x 50L in both heads. Black water pump-out at rear
or overboard discharge.
Anchor Wash Saltwater and fresh water high pressure wash at bow.
Tank Level Monitor Tankmaster system for water and diesel tanks.
Water Maker 2 element 220 volt with TDS monitor installation to be completed
Water Heater Calorifier 30L with engine and 220v heating.
Heating System No

Airconditioning Oceanair Dometic 12000 BTU installation must be completed
Ventilation Fans 6 x 12v Wella 150
Dehumidifier 220V for long term closed up storage.
Bilge Pumps 7 electric, 2 manual pumps
Transfer Pumps Diesel
Sump Pumps 8 electric. 2 x whale gusher mechanical
2 in anchor locker(high big, low small)
1 Fwd cabin sump, 2 electric 1 x manual in main sump, 1 x electric 1 manual engine room sump, 1 electric in lazarette.
Hydraulic Pumps n
Cooling Pumps Yes for airconditioner. Not yet commissioned
Washing Machine 220V Domestic
Sea Chest 1
ELECTRICAL
Battery House 2 x Blue Nova lithium Iron Phosphate LIPO 12 volt 5 kW each
2x Engine room blowers 2 x battery compartment blowers.
Battery Engine Start Victron 220 - 12 battery charger for engine starter.
Battery Thruster Victron 220 - 24v battery charger for bow thruster batteries
(2 x 12 volt 100amp gel) dedicated Victron charger Blue X 4/16/1
Battery windlass Works off house batteries.
Voltages 12/24/220/110 V
Inverter / Charger Victron Multiplus Inverter charger 12/3000/120/16 220/240v

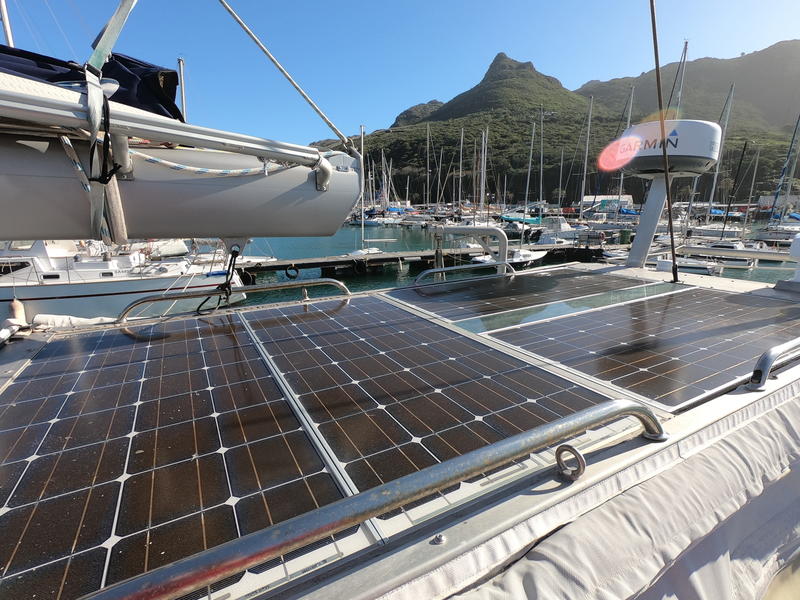

Solar Panels These are due for replacement. New ones are
Solar Charger Victron MPPT solar controller MPPT 150I35
Transformer Isolating 220/110v in 220/110 out
Generator 2: Yanmar 1GM10 Diesel, Honda 220v
Alternator 2 x Zena 200 Amp large frame battery charging alternators.
Balmar controllers and Balmar balancing center field
controller. With over temperature alarms and read outs.
Wind Generator Provision made for. Wiring and socket for pole aft.

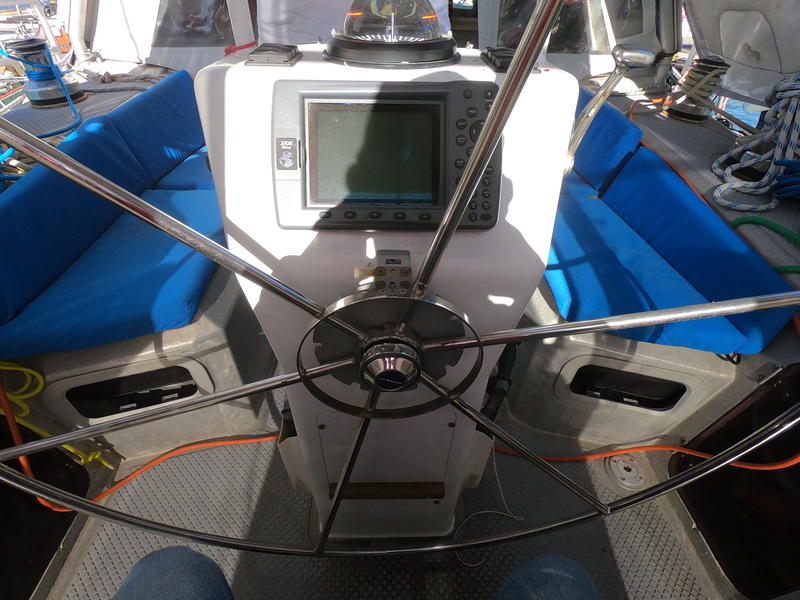

Compass 3 Riegel Posdeidon with light, Hand held compass, bulkhead compass in Navigation station below.
Autopilot B&G hydraulic drive (P-3C)
Depth Sounder
Raymarine (ST60 )
Log/SpeedRaymarine (ST60 )
Raymarine (ST60 )
