50' Knysna Yacht Company Knysna 500

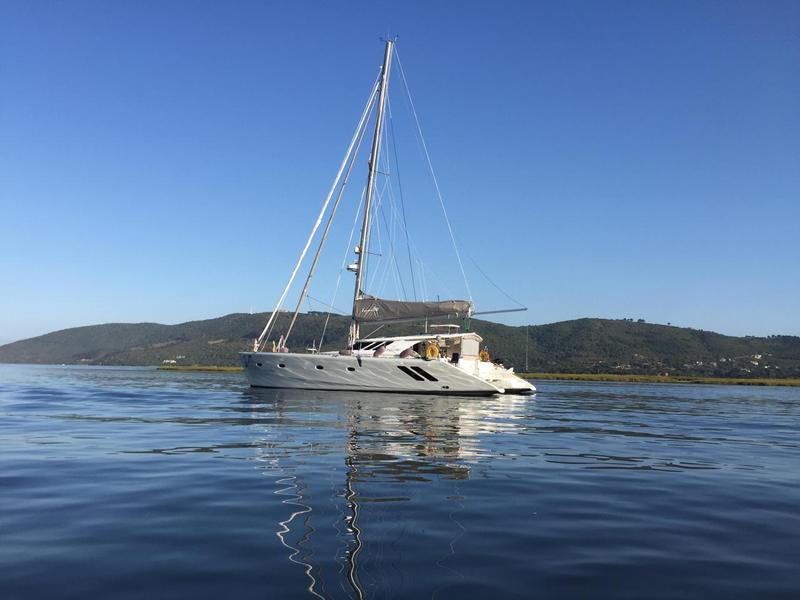

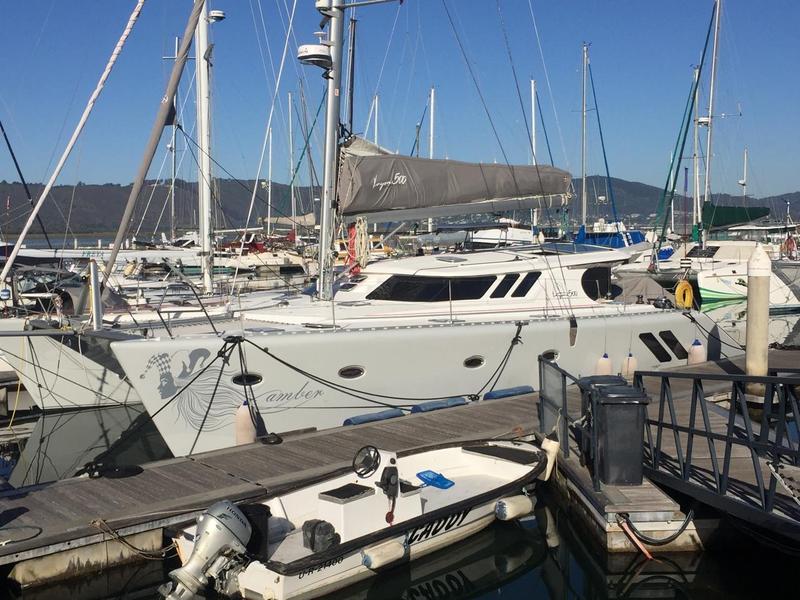

A high-performance, bluewater cruising catamaran designed by Angelo Lavranos and built by Knysna Yacht Company. This owners version yacht is well-equipped for long passages and liveaboard comfort. Contact Angela Collins Yachts for more info. This Particular Knysna 500 is in absolute mint condition and has done no serious sailing and is still used by Knysna yachts as a show boat to potential clients.

Engine
2 x 54 hp Yanmar sail drives, fresh water cooled
Fuel capacity 600 litres in 1 resin tank
Engine Hours
Port engine 4154 hours
Starboard 4172 hours

Rigging

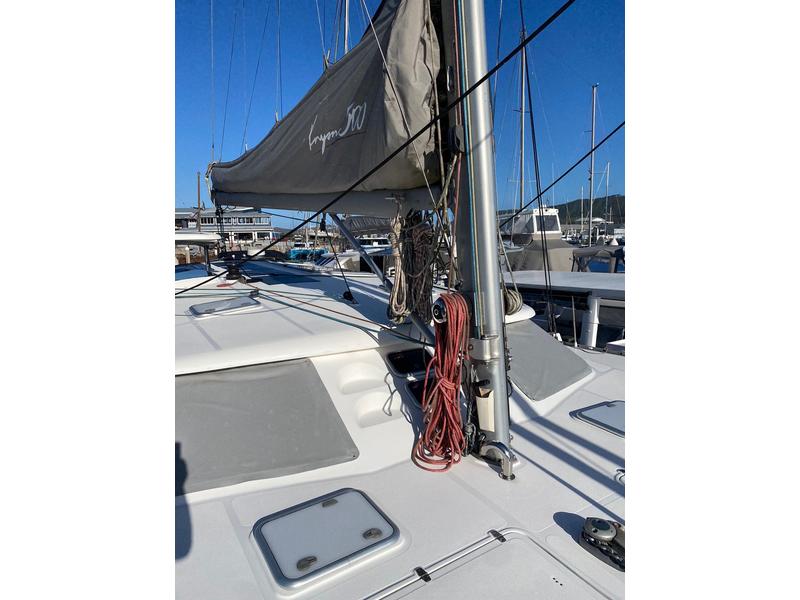

Aluminum mast and boom
Rod kicker
Harken Batt Car system

Sails
1 x Fully battened Mainsail (Ullman FibrePath) in a stack pack with lazy jacks
1 x Spare (new) Stack Pack from Ullman (in a box)
1 x Genoa (Ullman FibrePath) on an electric roller furler
1 x Ullman Gennaker (Screecher) on a manual roller furler

Deck Fittings
6 large mooring cleats
2 medium cleats
3 winch handle pockets
1 swimming ladder
1 Fixed bimini with hatch for helmsman

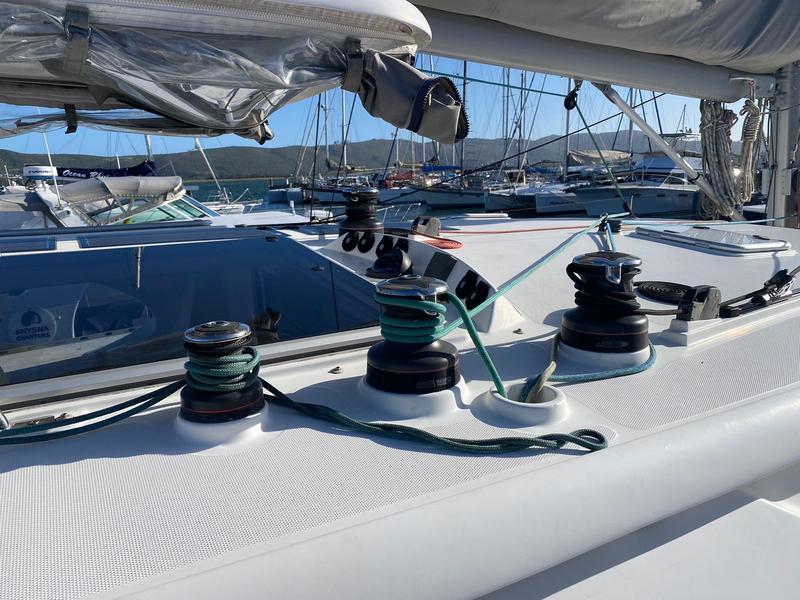

7 x 48 CST winches (2 electric in the cockpit)
2 x Lewmar lock in winch handles (one at the mast and one at the helm)
1 x specialist wrist handle for the engine hatches
1 x Anchor windlass electric Lofrans 1200w
1 x 40 CST chrome winch for main traveler
1 x Pro-furl furling gear with catwalk
1 x 40 kg stainless steel Rocna anchor
75m of stainless steel chain
50 m (18mm) anchor warp
1 x 15kg Danforth anchor
10m (8mm) chain
30m (18mm) anchor warp

Electrics
Marine DB boards DC and AC
Master volt / Victron battery management system
Mastervolt Inverter/charger
Mastervolt Easy View
Master Bus Serial Interface
Master Bus USB Interface
Master Shunt 500
Isolation Transformer 8 Kva
Charge Master 12/100-3
Blue Sea Latch
Alpha-Pro Regulators and Alternators
2 x 16000 BTU Air conditioners
1 x 6 kw Generator
2 x semi deep cycle engine batteries
1 x semi deep cycle Genset battery
3 x Lithium Ion MLI Ultra 12/5000 House Batteries
6 x Flexible Solar panels on the coach roof with Victron Management system
1 x TV:LG 32 inch LG32LB530 in saloon
1 x TV: LG 22 inch in owners cabin
AE 3000 TV Antenna on the mast
Fusion AV 700i CD/DVD Radio
Fusion FR6021 Speakers
Navigational equipment -
Garmin Network NMEA 2000
1 x Chart Plotter 8015
1 x GMR 24 HD Radar
1 x GSD24 Fish Finder
1 x P319 Temperature Transducer
1 x G-wind with GND10
1x DST800 Thru Hull Depth Temp Speed
1 x GMI20 Display
1 x Compass
1 x VHF 200i Marine Radio
1 x AIS 600 Trans Receiver
1 x GHC 20 Display for Autopilot
1 x GHP Reactor for Autopilot
1x GRF 10 Rudder Feedback Sensor

Plumbing
Water capacity 600 litres in 1 resin tank
2 x Accumulator tanks
2 x Electric bilge pumps
2 x Manual bilge pumps
1 x 40 litre Calorifier 220 VAC with element and thermostat
2 x Grey water pumps
1 x fresh water shower at transom
2 x macerator pumps for black water tank
1 x Water maker 100 litres per hour

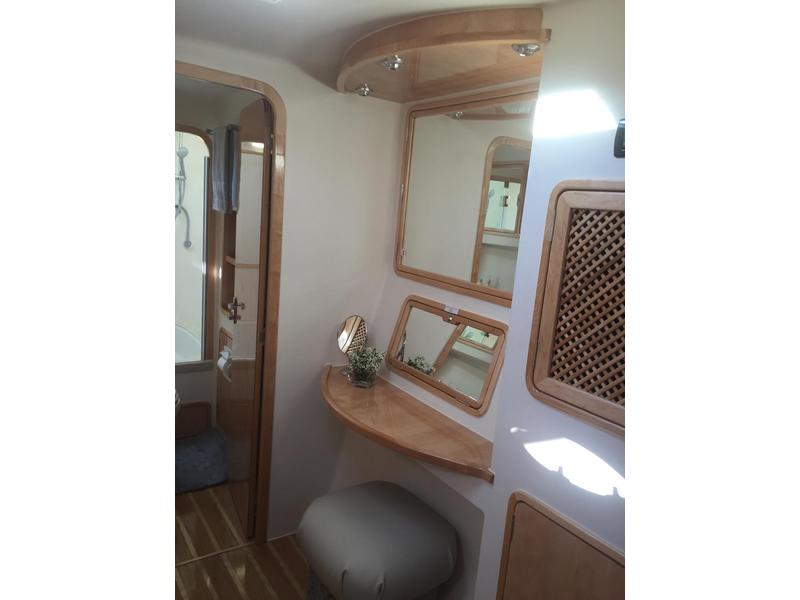

Accommodation
Owners version

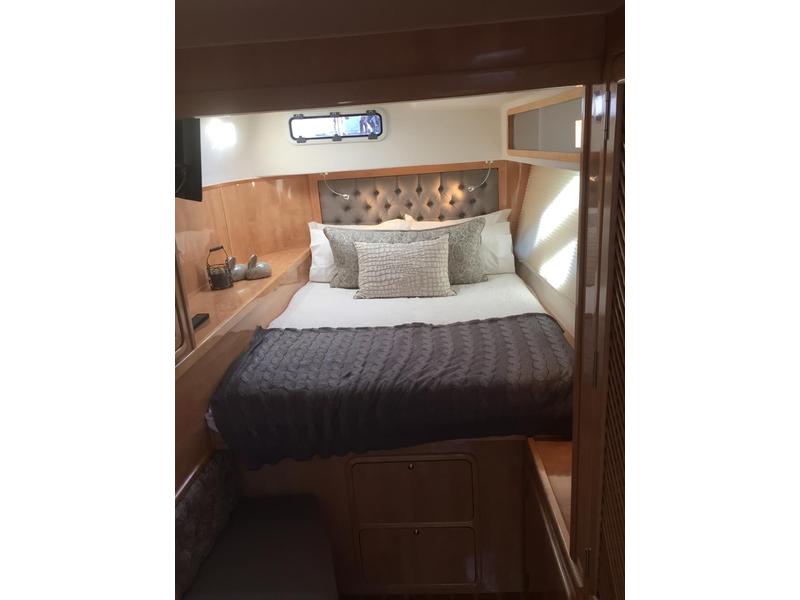

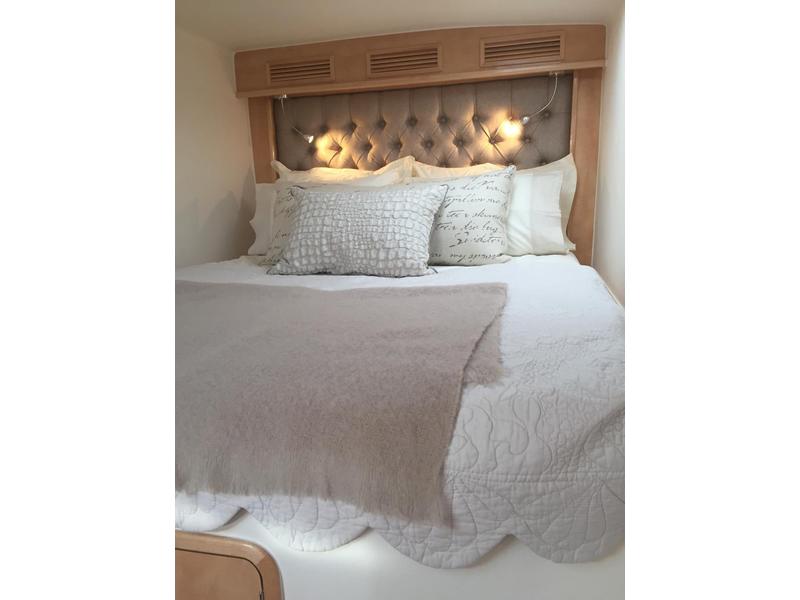

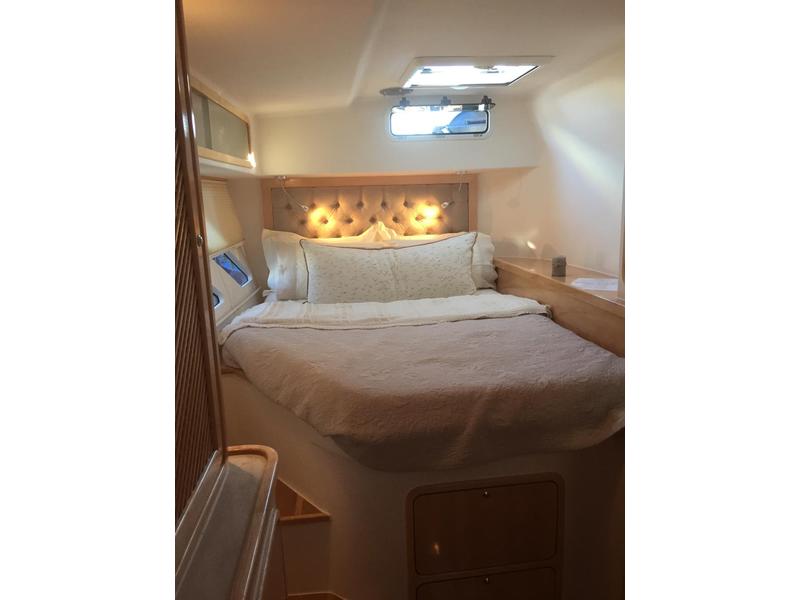

3 Double cabins en - suite

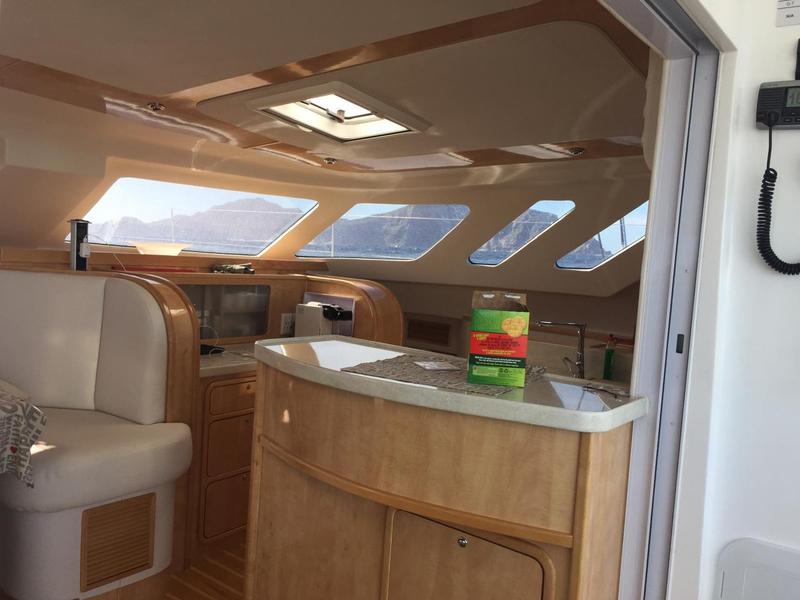

Galley up

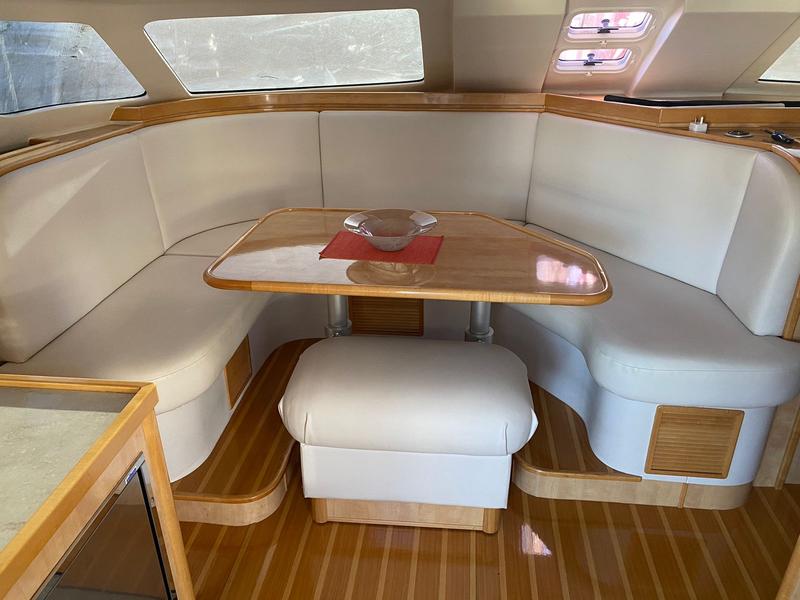

Saloon has seating area and dining table for 6 8 people
The dining table lowers to form a large berth
Cloth seats

Heads

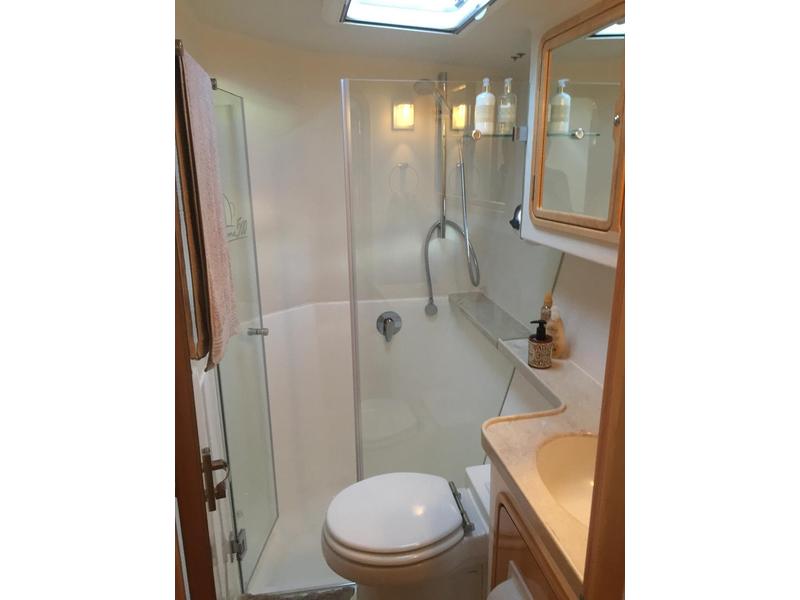

2 Guest heads with shower, electric toilet and hand basin

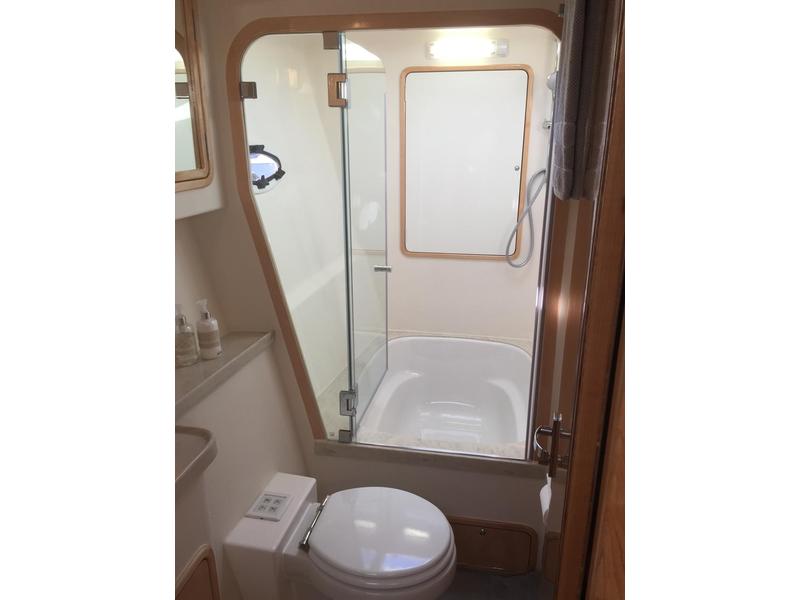

1 Owner heads with shower, sit bath, electric toilet and hand basin

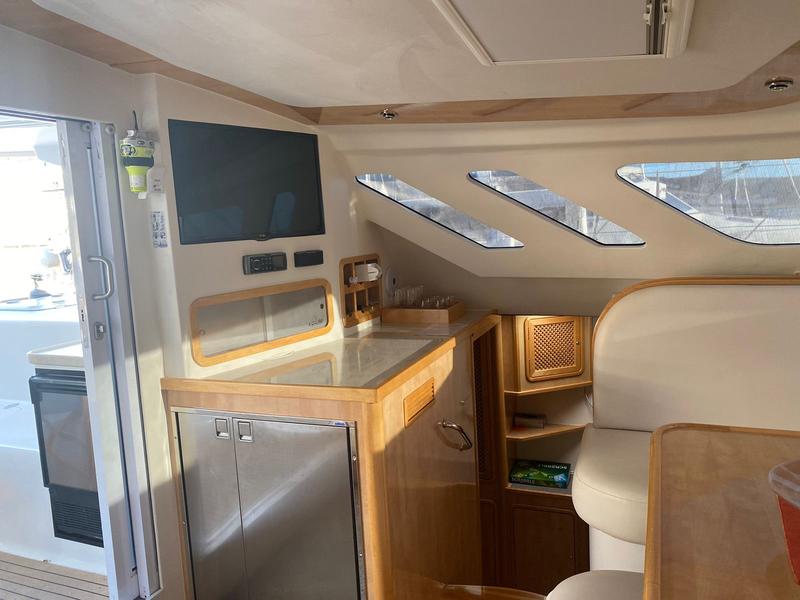

Galley
1 x AEG Hob burner and Euro Gas oven
1 x 200 L Isotherm Combo 12 volt fridge/freezer
1 x 90 L Isotherm 12 volt deep freeze
1 x Double sink
1 x Micro wave oven
Hot and cold fresh water

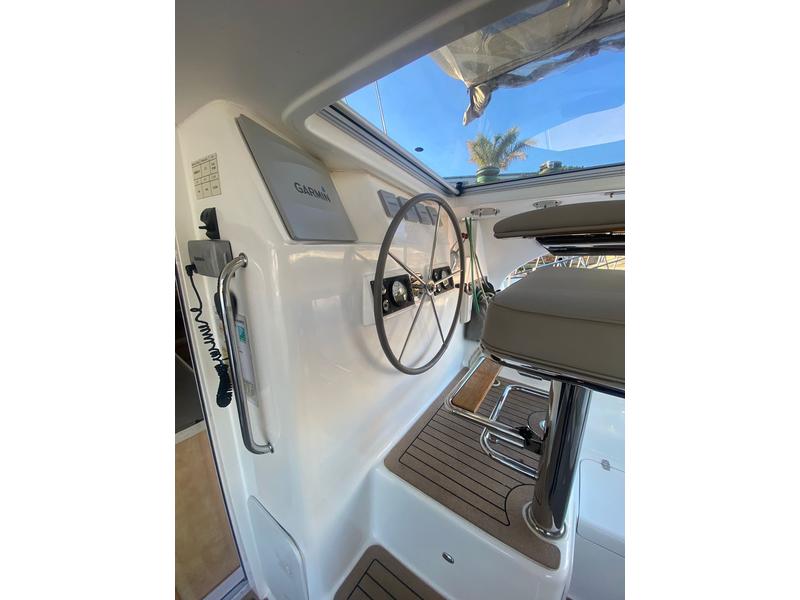

Cockpit

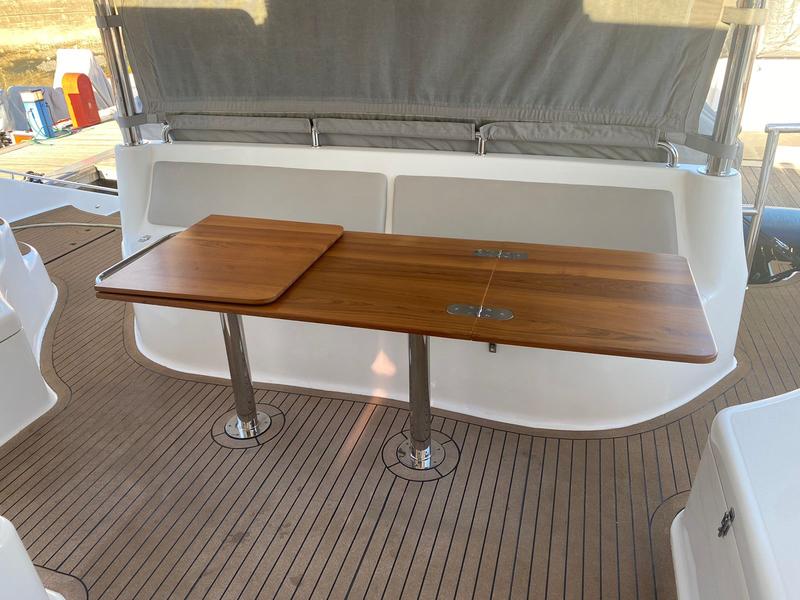

1 x Wooden table
1 x Double skippers Seat
1 x Ice Maker not working
1 x Cockpit fridge
1 x Webber braai on transom

Safety Equipment
Category
