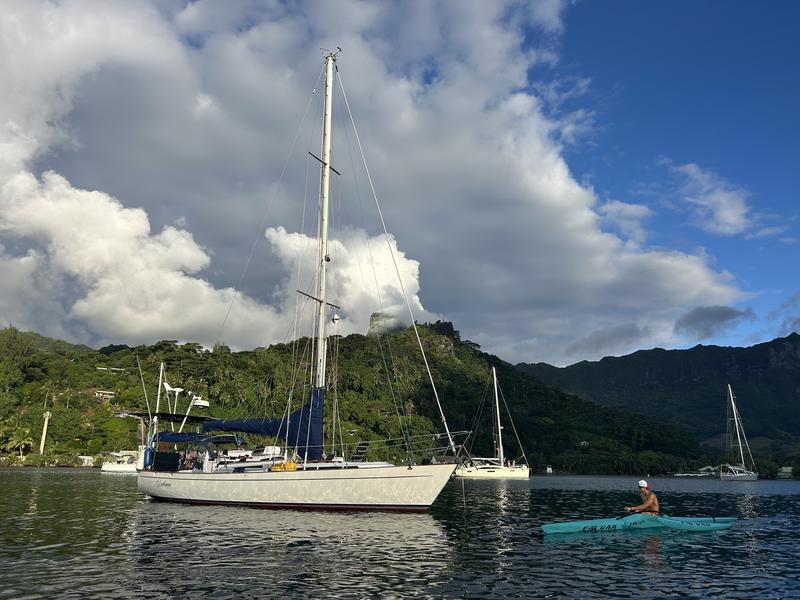

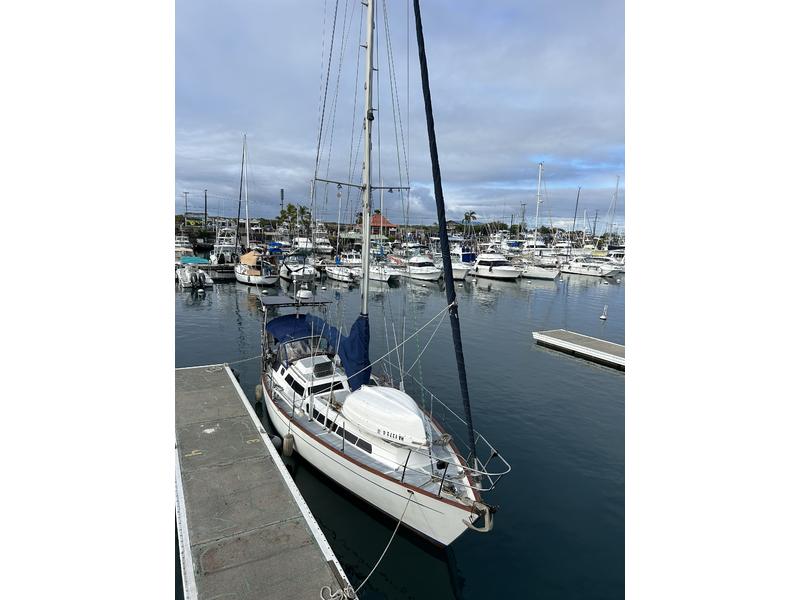

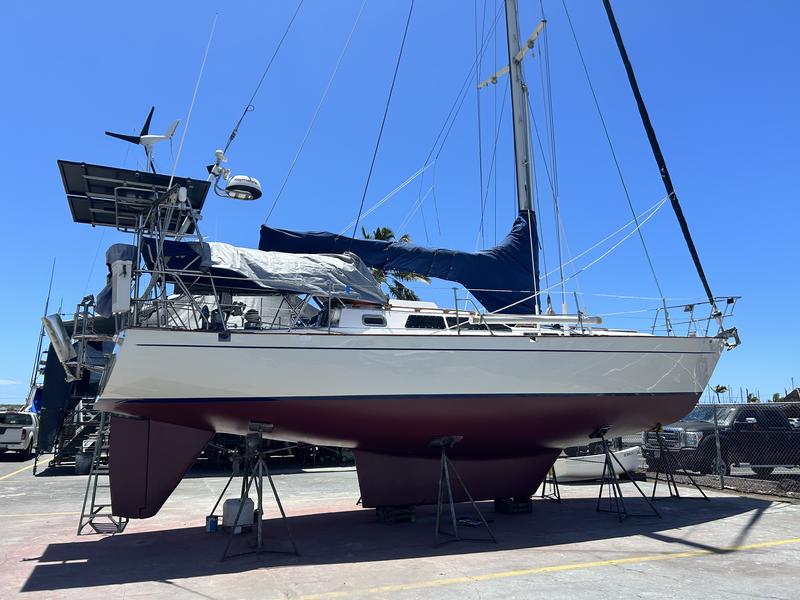

39' Trans World Fair Weather Mariner

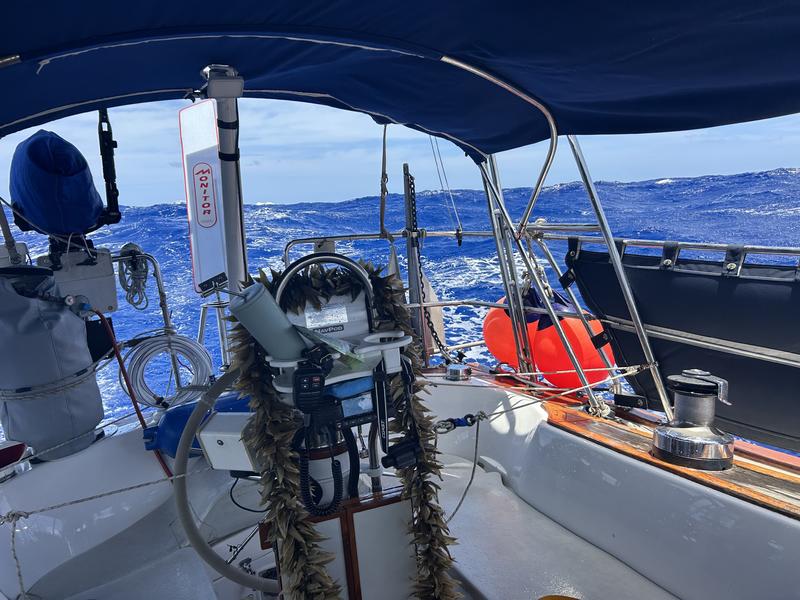

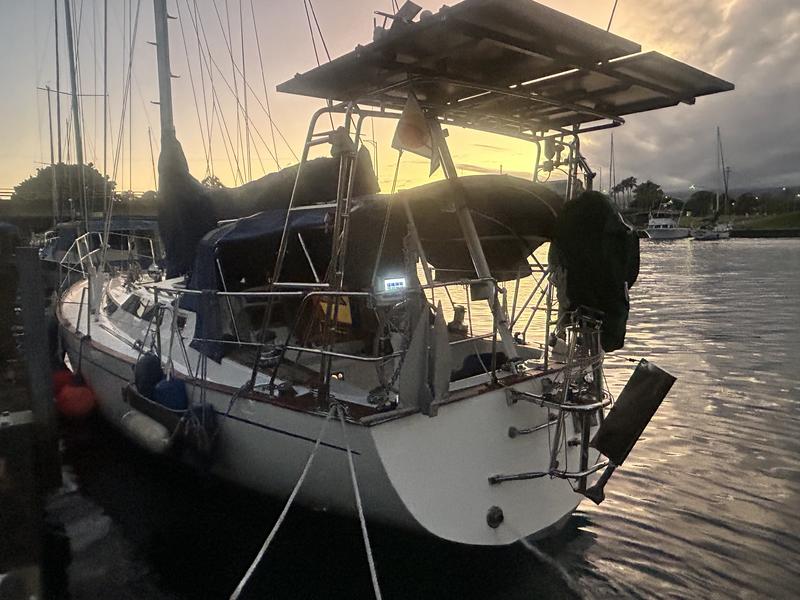

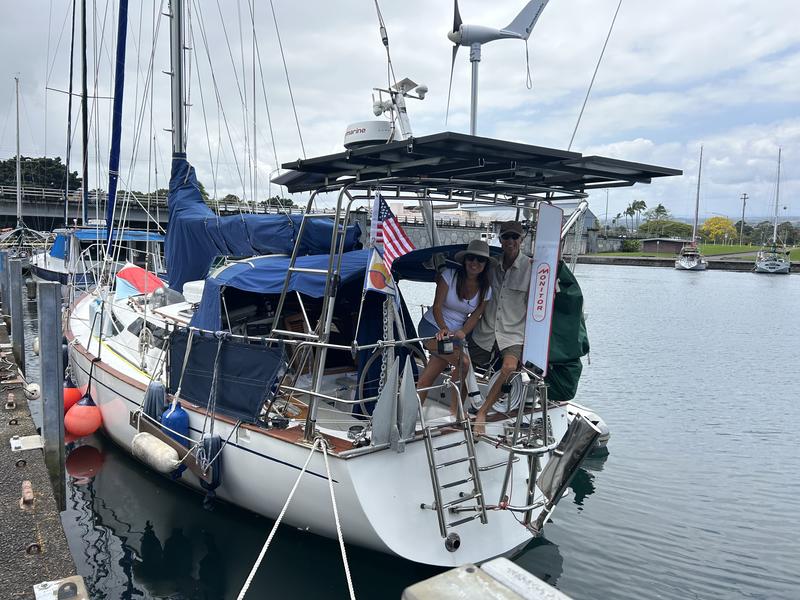

Dulcinea is a fast-cruising sailboat. For instance, she can sail at 9 knots with a full main and genoa at 17-20 knots with beam reach. The boat has accommodations for 5 people. She is equipped for long passages with 50 gallons per hour water maker, 800 watts solar panels, 400 watts wind turbine, 2 electronic chart plotters with 9 and 12 screens, a digital radar, two VHF radios with AIS system, Starlink antenna, an Iridium phone, a Monitor Windvane and an oversized standing rigging with titanium chain plates.
Dulcinea can accommodate 5 people with a double V berth in the bow, 2 settees on the main saloon and 1 on the starboard side.

Starting with the bow, the boat as a chain anchor locker. On deck a powerful windlass is located. The V berth has wood lockers on starboard and port and cargo compartments under it. The first section of the compartment has anchor lines, the second section has a holding tank with capacity of 20 gallons and the third section has a 30 gallons flexible diesel tank.

The heat is at the port side with a separated area for the shower. On the starboard side is a large size closet.

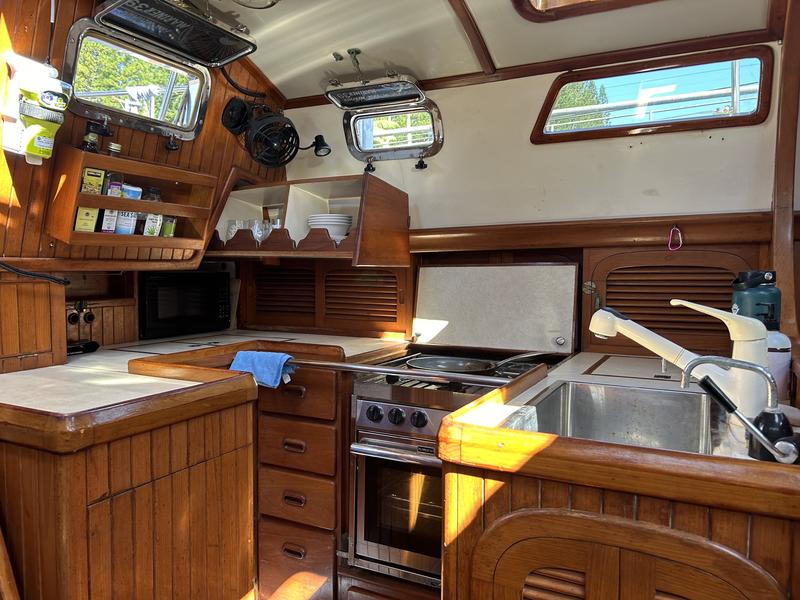

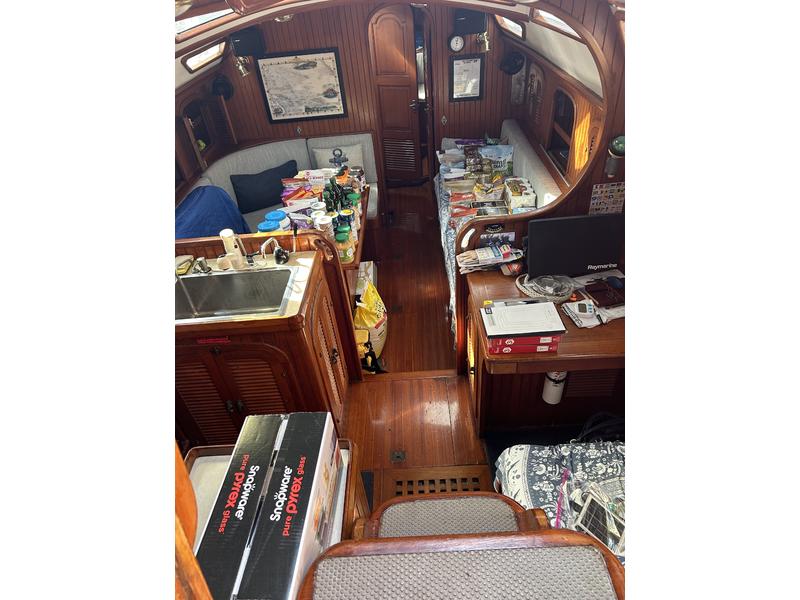

Walking toward the stern is the main saloon with the 2 settees on starboard and port side and a dining table on the port side. There are closed lockers on both sizes on the top and bottom with good capacity for equipment and food. Also 2 aluminum water tanks are located under the settees with a capacity of 30 gallons each. Under the floor on this area is a stainless diesel tank with a 50 gallons capacity. Further back there is a step up into the galley at the port side and a navigation table at the starboard side. At the galley there is a stainless cardanic stove, a refrigerator and ice box. The sink is also from stainless steel.

At the navigation table there is a 12 screen connected to the chart plotter, GPS, and digital radar. Near the navigation table the boat has a VHF radio, the screen for the solar panels and the wind turbine and the switch panel. Under the navigation table there is a cargo compartment where the water maker pumps and filters are located.

Propulsion

Perkins Prima 50 HP with 2,700 hours. Under the stairs is where the engine in located. The engine was checked by a professional mechanic before the voyage to French Polynesia. At that time a new Perkins engine panel was installed with all the new electric wire harness. A new timing bell was also installed. Oil and fuel filters were replaced. The support of the engine was adjusted and checked for alignment. The shaft is in good condition and is connected to a Martec 3 blade feathered propeller. The propeller was also checked and adjusted. According to our experience, we estimated that the engine consumed half a gallon per hour when moving at 5 knots.

Electronics and navigation tools

12 Raymarine chart plotter at the navigation table
9 Raymarine chart plotter at the help
Raymarine Quantum digital radar up to 24 miles range
1 VHF radio at the navigation table
1 VHF radio at the help with GPS and AIS
1 Radio Fusion MS-RA70NSX with Bluetooth and SiriusXM Ready connected to 2 Bose inside and outside speakers
1 Iridium phone
Electricity

Service batteries: 4 Centenial AGM CB6/224
Engine batteries: 2 Centenial AGM CB6/224
Alternator: Balmar
Solar Panels: 2 MPPT 100 Victron Energy 400 watts panels with independent chart controllers
Wind turbine: Marine Kinetics MK4 (2024)
Hydro generator : None
Inverter(s) : Inverter/charger Xantrex Freedom 458 connected to a heart interface Link 2000 Monitor
Circuits voltage : panel for DC and AC
Electric leaks controll : for propane system
Inside, deck, navigation lights type (LED or other) : interior cabin LED lights, Spreaders deck LED, and LED navigation lights.
Comfort

Fresh water tanks : 2 aluminum 25 glns tanks installed in 2022 under the settees
Watermaker : Spectra 380C with 2 8 glns per hr pumps for redundancy
Sink : Stainless steel
Cold units, fridge, freezer : 1 Frigoboat fridge with small freezer, 1 icebox
Stove : 1 stainless steel Force 10 cardanic stove
Hot water : Yes
Toilets, showers : independent shower next to head
Heating system : works with AC or engine heading system

Mooring

Ground tackle
Windlass : Maxwell Marine 2,200
Main anchor, chain, rode, etc : 30 kilos Bruce with 300 ft chain
Secondary anchor : Fortress FX37 with 150 ft of chain
Stearn anchor: Fortress FX37 with 50 ft of chain and 100ft rope
The electric windlass has a food switch on deck that works with the house batteries.
