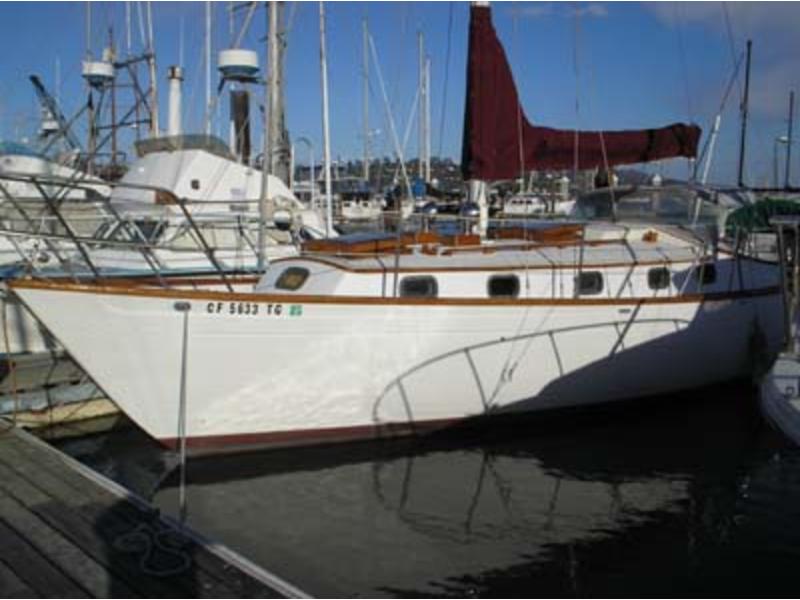

35' Rafiki Rafiki 35

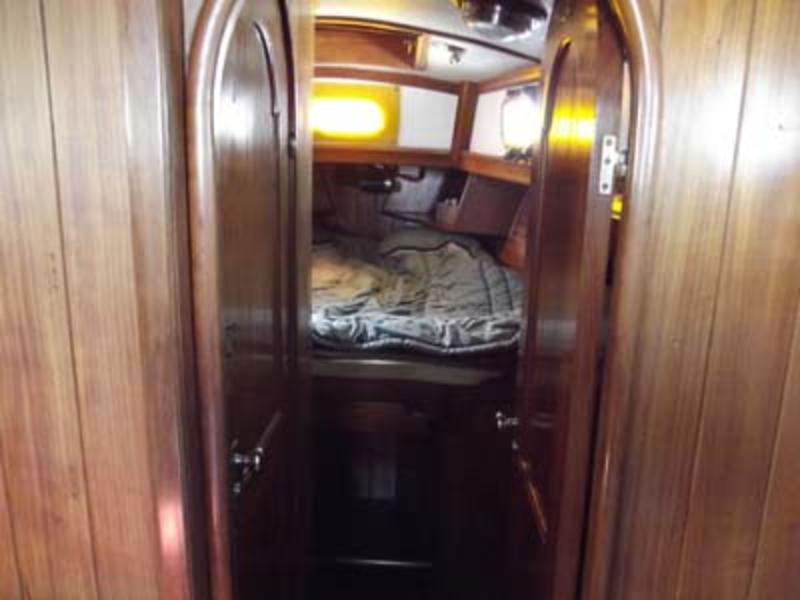

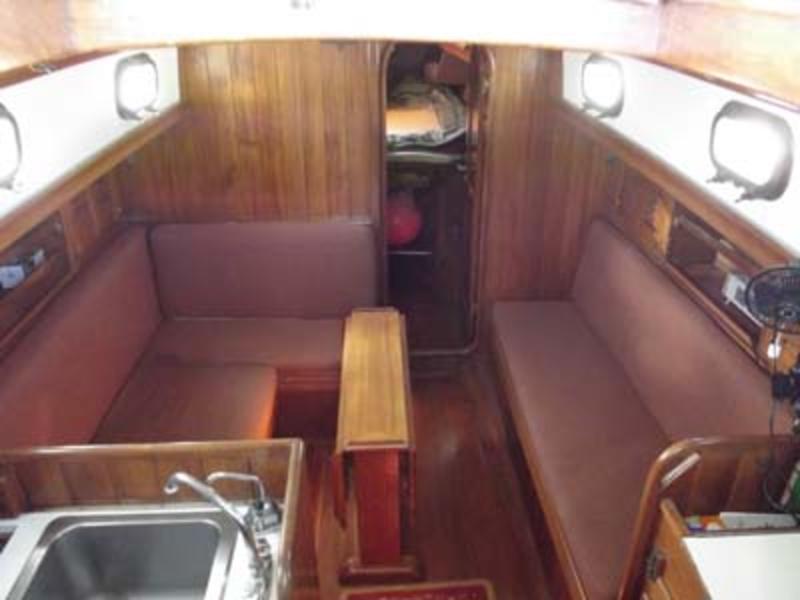

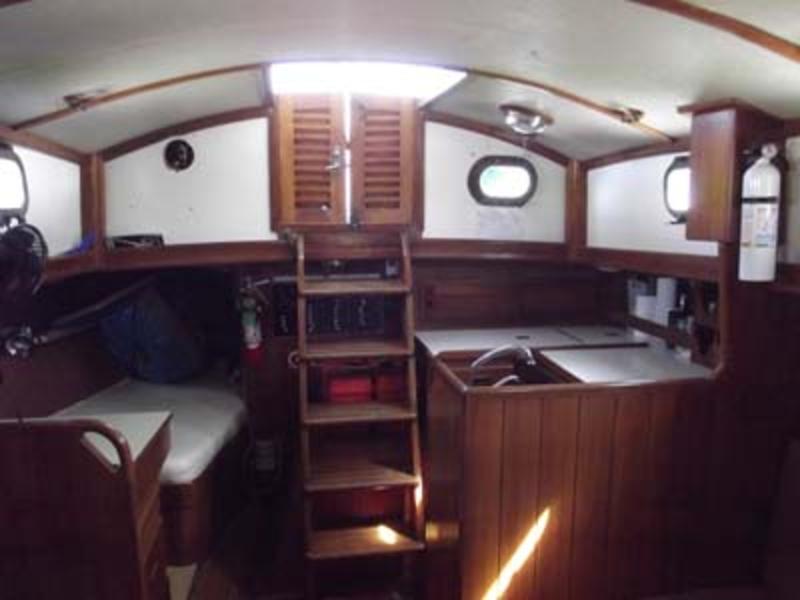

Forward V birth, Head is to Port with lockers to starboard. main cabin port side dinnet converts to double with sette single to starboard. Galley is aft to port nav station to starbord with quarter birth.
Engine Room.

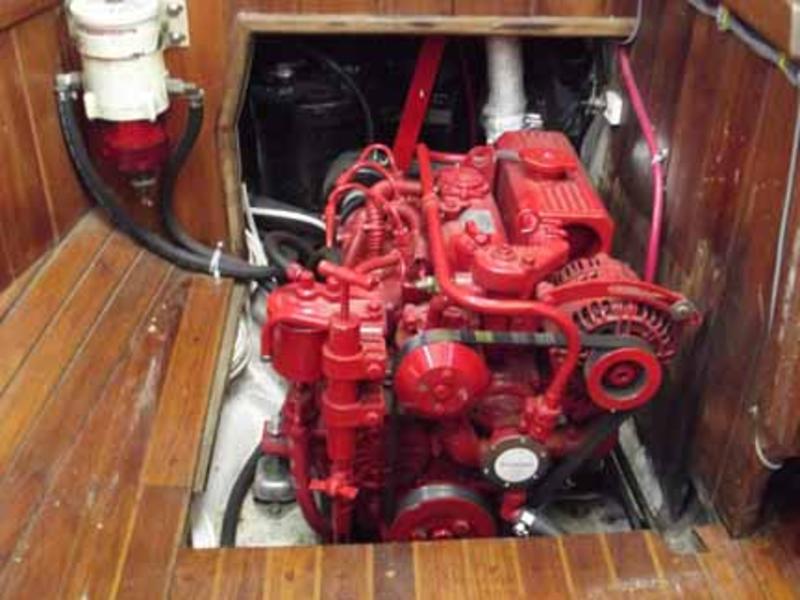

Beta Marine 1005 28 hp diesel engine (currently 300 hours) with 100 amp alternator and instrument panel with tachometer, gauges and alarm.
Bronze seawater strainer.
Exhaust lift muffler and hose.
Six gallon 110 V water heater with engine heat exchanger.
Shaft, Cutlass Bearing, 3 Blade Propeller.
Wheel steering rebuilt new cables and chain fittings sheaves and quadrant inspected & serviced.
Diesel fuel polishing system with vacuum gauge to check condition of fuel filter.

Electrical

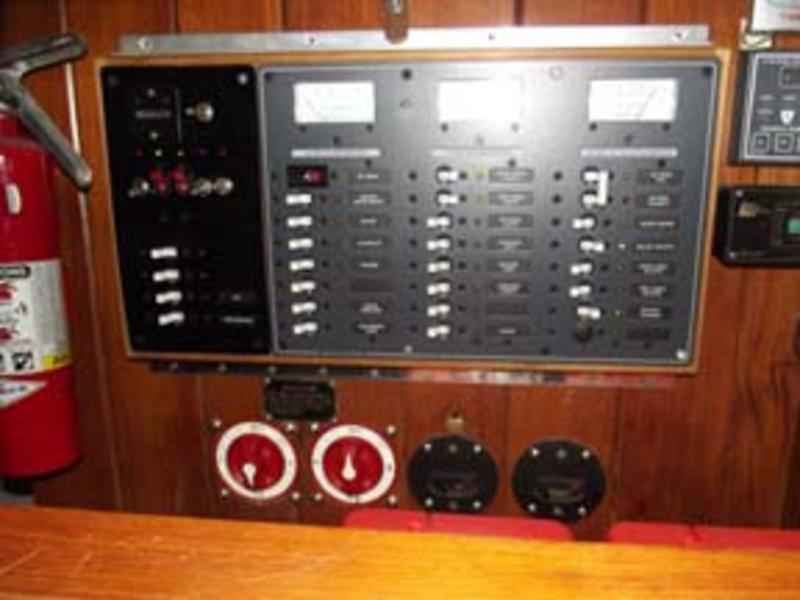

Blue Sea 12/110 V electric panel.
Wiring from shore power inlet to electric panel with galvanic isolator.
ProMariner I240 40 amp two bank battery charger.
All new wiring from batteries to engine, electric panel, windlass, and all electronics.
Four golf cart 6Vbatteries, total 12v capacity 440 amp hours with high amperage fuse at each bank.
12 V starting battery with high amperage fuse.
Two battery selector master switches
Two high amperage circuit breakers for windlass and inverter.
1500 Watt Inverter

Electronics

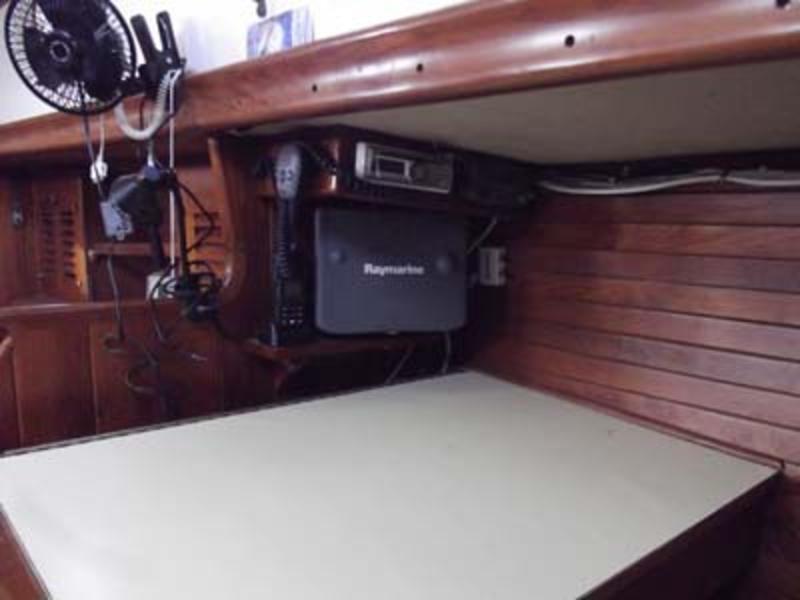

Ray Marine electronics
C 80 chart plotter with GPS and 2 Kv radar.
Autopilot S2G core pack, ST 702 controller and linear drive with Edson bronze tiller.
ST 60 sailing instruments depth, speed and wind.
SR 50 satellite weather radio receiver
Ray 49 ultra compact VHF radio
Standard Horizon HX280S handheld VHF radio
AM/FM/CD/Ipod input stereo with cabin and cockpit speakers.

Galley and Cabin
Seaward gimbaled two burner propane stove with oven.
Propane system with pressure gauge and 12 V shutoff at stern tank.
12V gas controller with fume detector.
Two 2.5 gal Propane tanks and hoses from tank to stove.
Frigoboat Marine refrigeration system with keel cooler and smart speed controller.
Electric refrigerator thermometer readout at control panel.
Cabin cushions throughout.
Stern rail mounted propane barbecue with cover.
New Windshield and side panels for fiberglass Dodger.
Sunbrella deck woodwork covers.
Plumbing
22 gallon holding tank with tank gauge, macerator pump and associated hoses.
Shower sump pump with strainer and hoses.
Anchor locker seawater wash down and tank rinse pump with strainer and hoses.
Two electric 12V bilge pumps 4000 GPH and 900 GPH.
Rebuilt whale gusher hand bilge pump.
Replaced all bilge pump hoses.

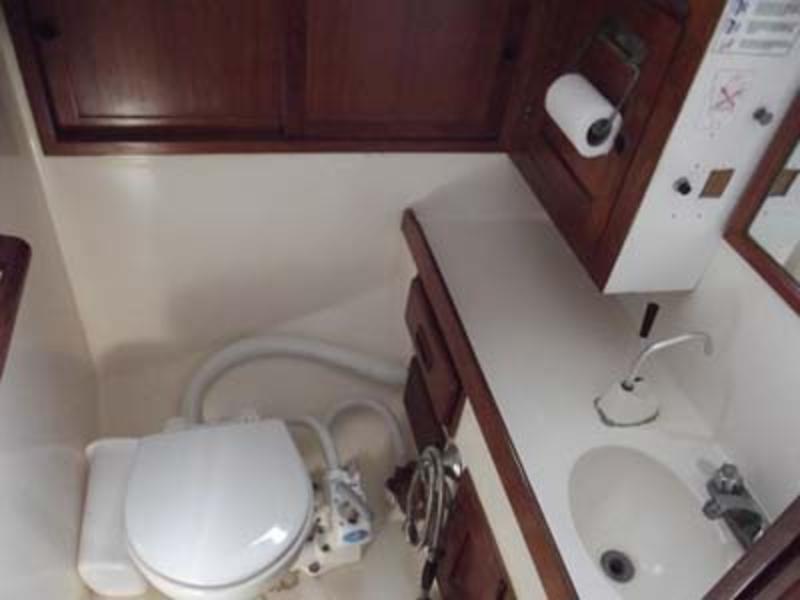

Head - seawater inlet shutoff valve at head and hoses.

Ground Tackle

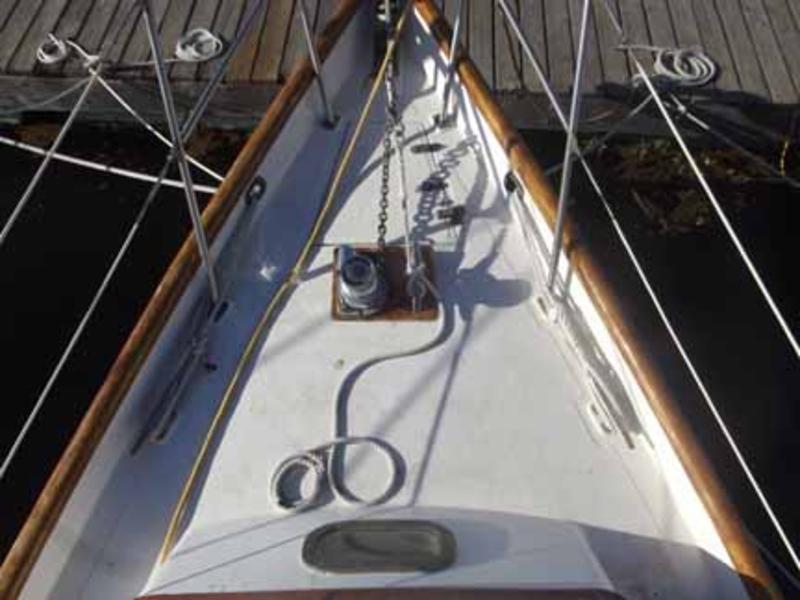

Maxwell 1000 12V electric vertical windlass with drum and chain gypsy.
Windlass hand held Quick control at bow and up/down switch at cockpit.
300 feet of 5/16 inch HT galvanized anchor chain with stainless steel swivel.
50 feet of 5/16 inch HT galvanized anchor chain with 200 feet of 5/8 inch nylon line.
30 feet of 5/16 inch HT galvanized anchor chain with 200 feet of 1/2 inch nylon line.
Stainless steel Chain grabber with two 50 foot x ½ inch nylon anchor chain bridal.
Chain hook with 15 foot x ½ inch nylon anchor snubber.

Rigging
All running rigging.
1 inch webbing jack lines.
Binnacle compass at helm.
Radar reflector, Coast Guard safety equipment, lifejackets
Radar pole with Stern floodlights.

The following appears to have been replaced in the past few years.
All bronze through hulls and seacocks.
35 pounds CQR galvanized anchor.
Water pressure pump.

All through hulls grounded to bonding system with 6gauge copper wire for radio ground.
25 pound Danforth galvanized anchor unknown age.
200 foot 9/16 3 strand nylon anchor line.
Four Dock lines.
Four 50 foot spare dock lines

Sails
Main w/ 2 reefs good condition.
120% Genoa Good Condition.
100% Genoa Good Condition.
75% Storm Jib Good Condition.
Main w/ 2 reefs old.
Spinnaker pole.
Lazy Jacks.
Hasler Wind Vane self steering.

Complete set of manuals:
Engine Maintenance, Service-overhaul & Parts manuals.
Electronics original Ray marine manuals.
Hasler vane gear factor manual.
Manuals for the stove, refrigerator, windless, battery charger, water heater and all pumps.
Tools and some spare parts.
