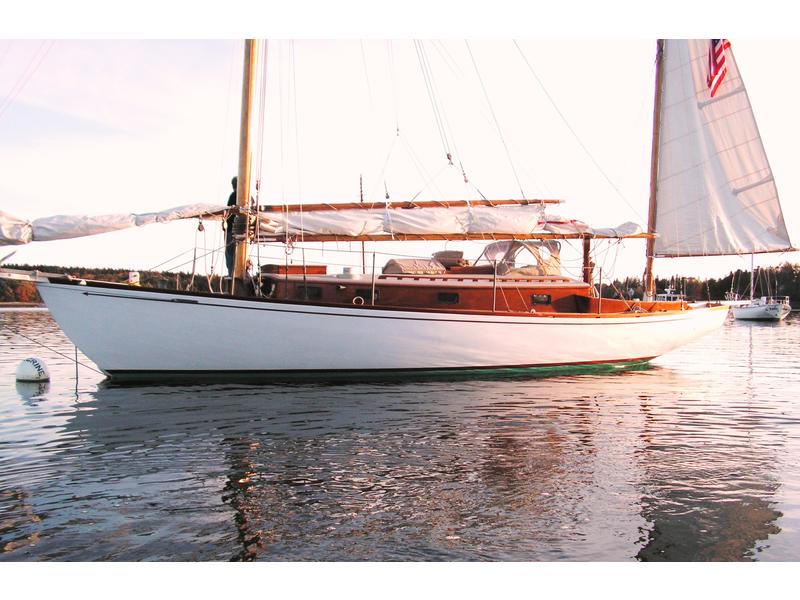

36' Crocker Designed Crocker Designed

EMILY MARSHALL is a classic design by a well-respected designer that was built in 1946 and rebuilt in 2003 to high standards and in very good condition. Well suited for coastal cruising.

INTRO:

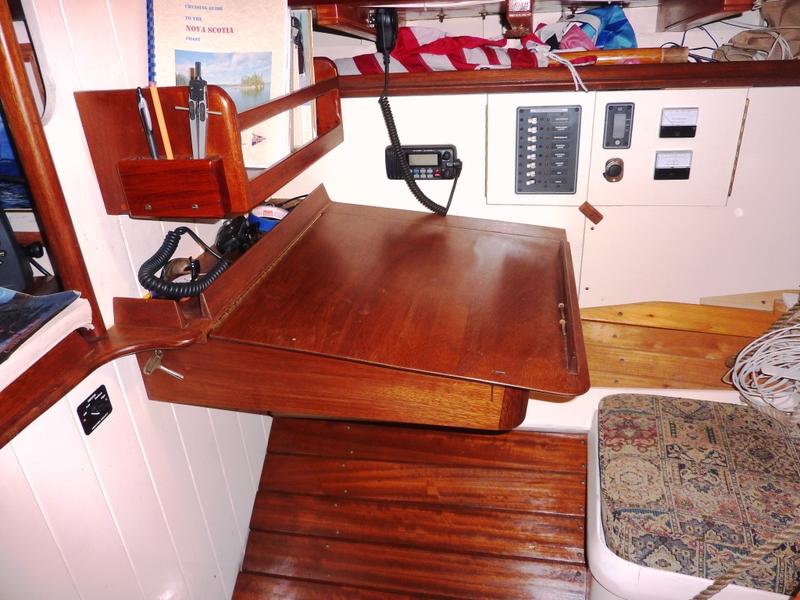

This craft has a fore peak cabin with single berth to starboard, next aft is the head to starboard. The main cabin has settes port and starboard with pilot berths outboard. The galley is aft to port and the navigation station is to starboards with a quarter berth aft. The engine is under the cockpit with access from the main cabin. The cockpit is aft the wheel steering.

HULL:

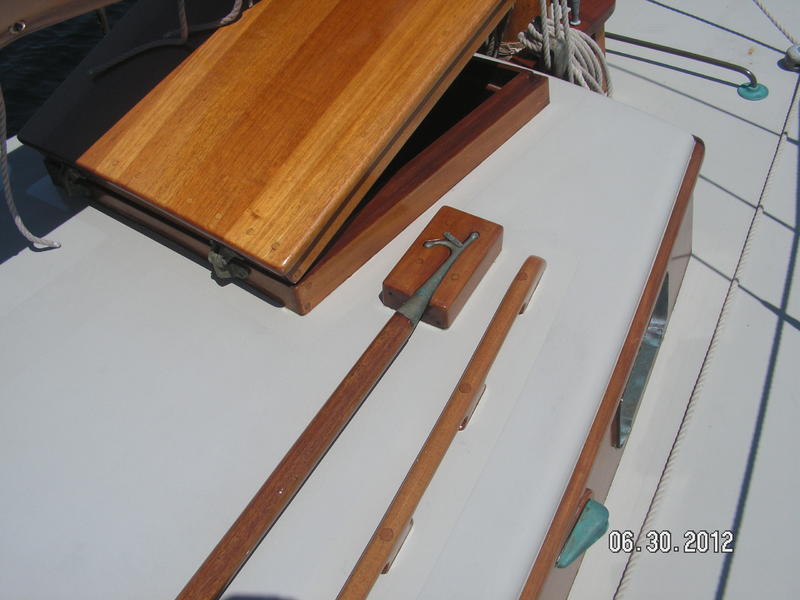

Hull is wood, carvel construction that was rebuilt in 2003. Frames steam bent white oak on center new 2003. Fastenings bronze and monel screws. Planking douglas fir original, topside planks splined. Keel and stem oak new in 2003 rebuld. Decking two layers plywood over Dynel over, grooved on underside, teak in cockpit.

ENGINE AND STEERING:

Westerbeke, diesel, 30HP. New in 2003.

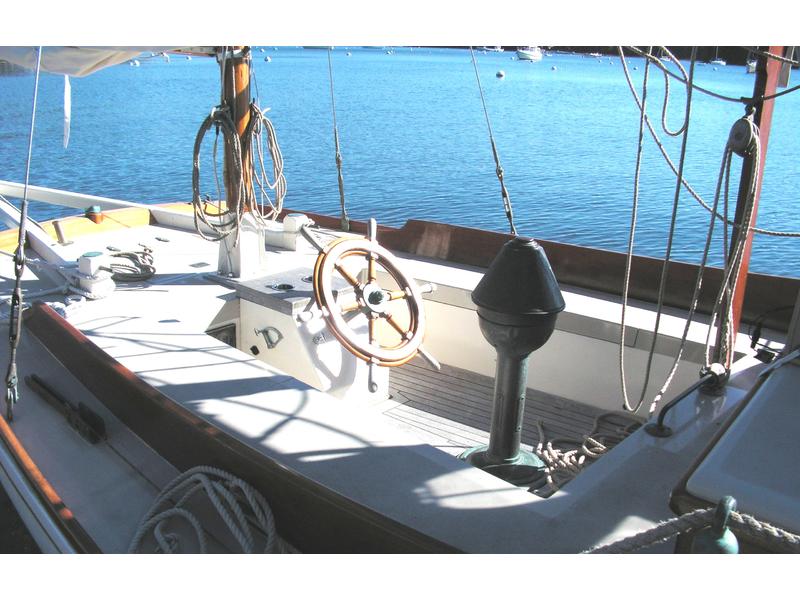

Wheel

TANKAGE AND PIPPING:

Fuel: One, 80 gallon plastic fuel tank.
Fresh Water: 3 plastic tanks, one forward and one each under settees, approximately 50 gallons total
Cooking fuel: propane in plastic propane locker in starboard cockpit locker.
Waste/sewage: 5 gallon plastic under forward berth.
Through hull fittings below waterline - plastic quarter turn ball valves

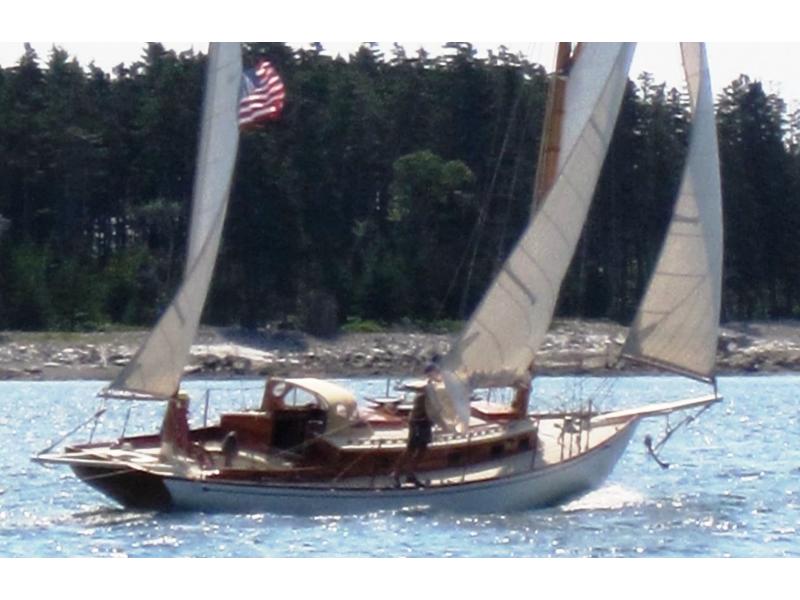

RIGGING:

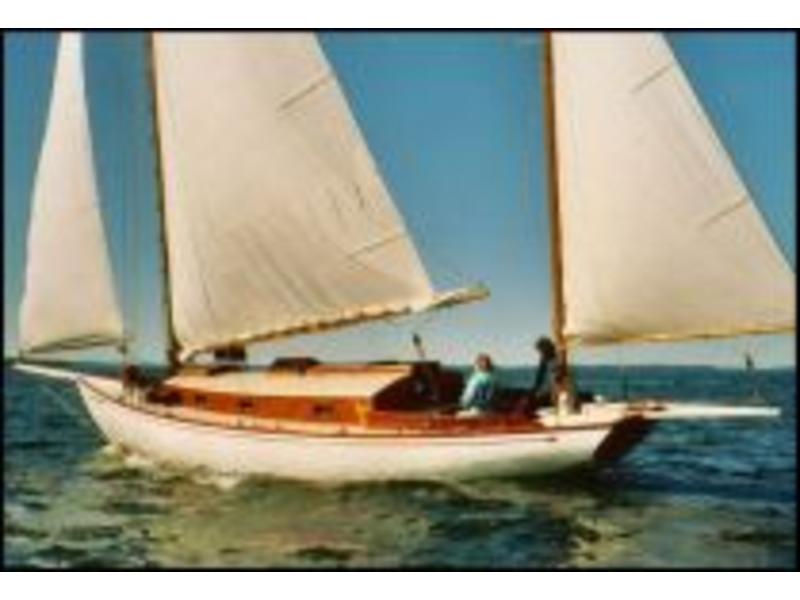

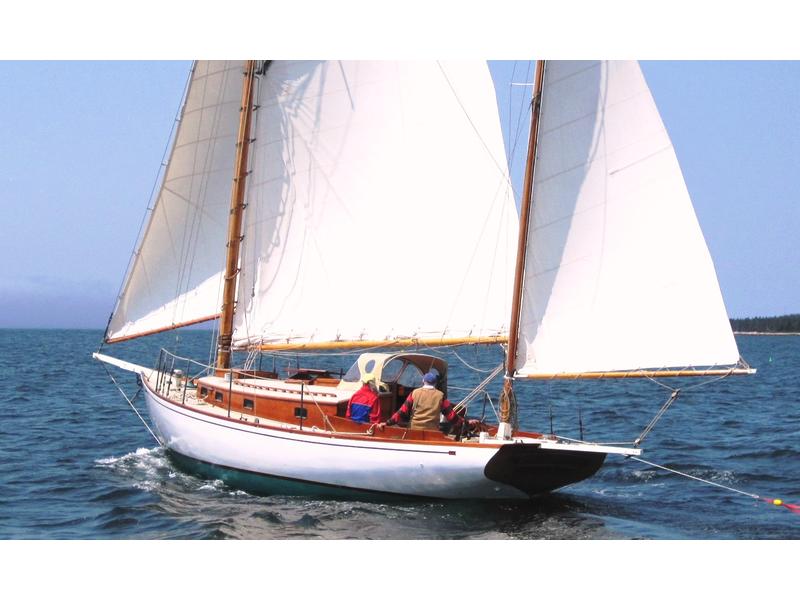

Ketch
Sails are Dacron
Mast is solid douglas fir.
Boom and spars solid douglas fir.

DIRECT CURRENT ELECTRICAL SYSTEM:

12 volt DC system, circuit breakers
3 batteries: 2 engine start, 1 house
Battery charging system - engine alternator

ELECTRONIC NAVIGATION SYSTEM:

Danforth white constellation Compass
Garmin GPS/Chart Plotter
Icom IC-M-422 VHF radio
Fthometer
Knotmeter
Navman Multi 3100S display
Weems and Plath clock
Weems and Plath Barometer

SAFETY EQUIPMENT:

Variety of equipment and features.

DINGHY AND TENDERS:

Achilles 9' rigid inflatable with 4HP Mercury

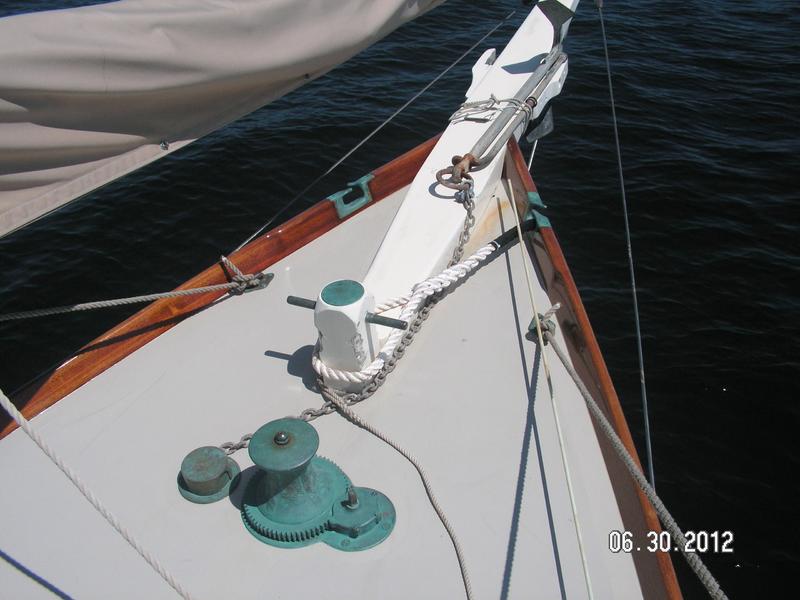

GROUND TACKLE:

Fisherman Bow Anchor, Spare Anchor, Windlass.

DEWATERING SYSTEM:

One automatic pump, manual pump, buckets, plugs.

TOILET FACILITIES:

Manual pump toilet with Y-valve to holding tank or overboard

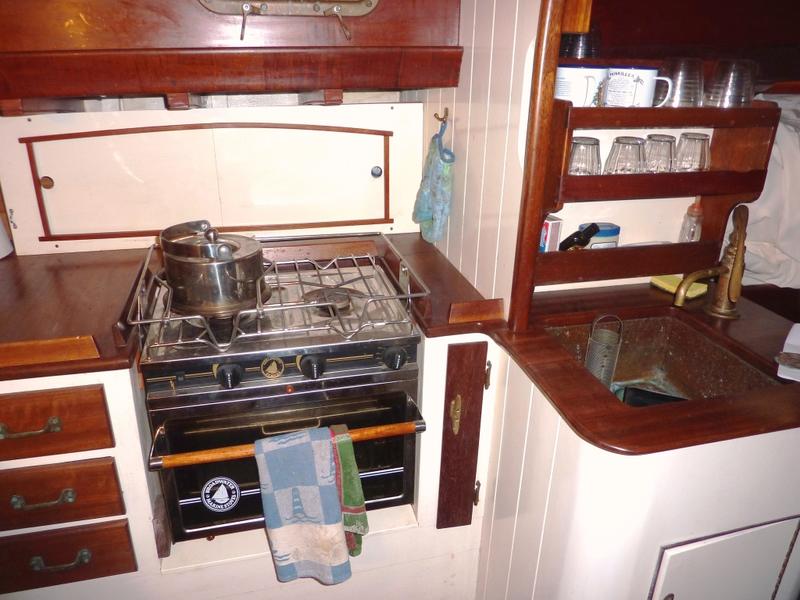

GALLEY:

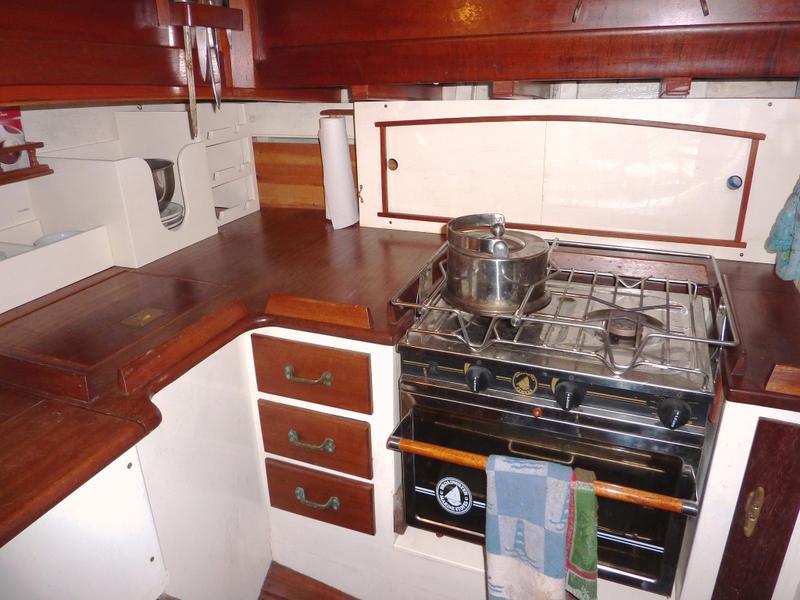

Broadwater two-burner with oven, propane.
Ice box

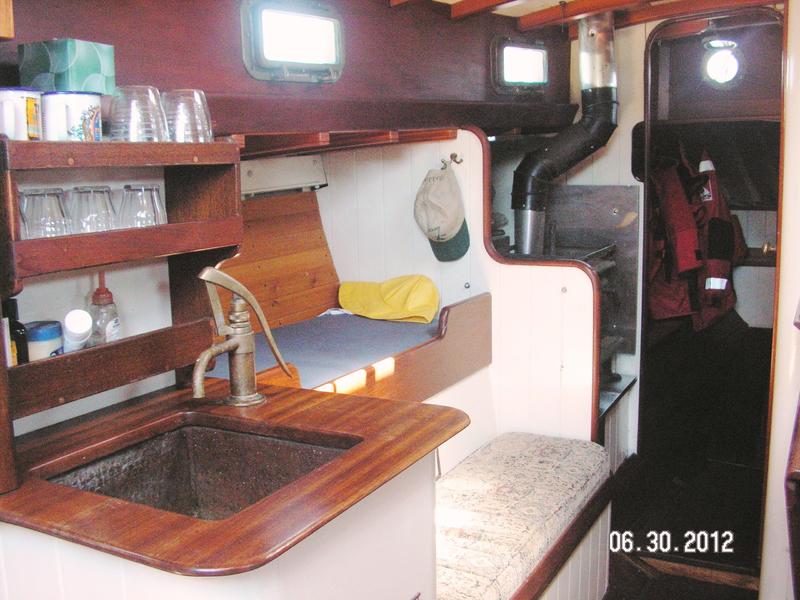

Copper sink with brass hand pump.

HEATING:

Wood stove, cast iron Fisherman #1 Heater Craft.

OFFICAL NUMBER:

527037
