40' Hughes Northstar 80/20

North Star 80/20 is a 12.2 m monohull sailboat designed by Sparkman & Stephens and built by Hughes Boat Works starting in 1972.

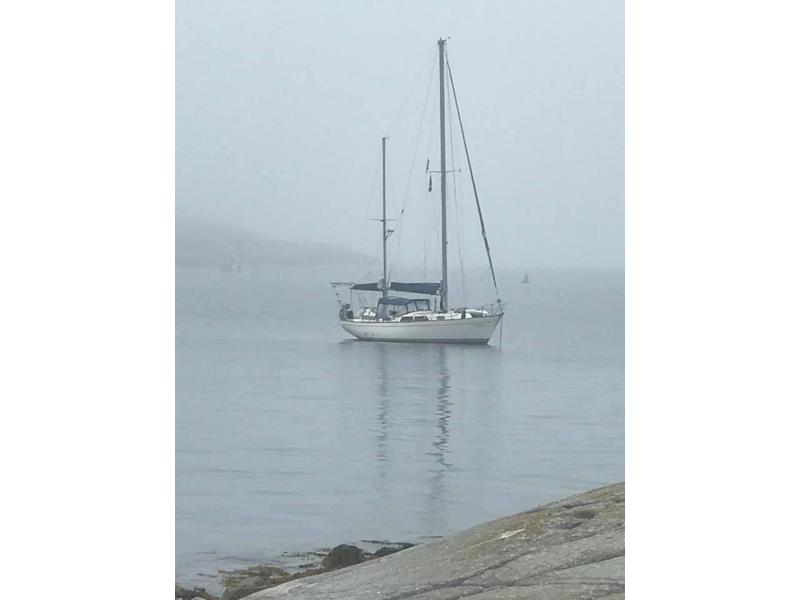

Model Hughes Northstar 80/20 designed by Sparkman & Stevens, built in Canada by Hughes Boat Works. Center cockpit Ketch heavily built for blue water and off shore cruising. Features : Two staterooms with two full heads layout. Custom extended hull with walk-thru transom (LOA: 49ft ). Redesign interior layout with galley on port side, dodger with stainless steel davits system for easy dinghy launching. Perkins 4-154 65HP diesel with low hrs. Bimini top with full cockpit enclosure, roller furling, full set of sails including 1 spinnakers, (2) self tailing main winches. Raymarine electronics (Intergrated wind instrument and liner drive autopilot), radar, windlass w/ 300 ft chain, solar panels, 2500w inverter boat located In Halifax NS Canada, professionally maintained and upgraded over the years, never damaged or chartered. Canadian registered vessel, excellent condition, survey available. For more information, please contact Chris .

Registration # 818485
Built: 1973

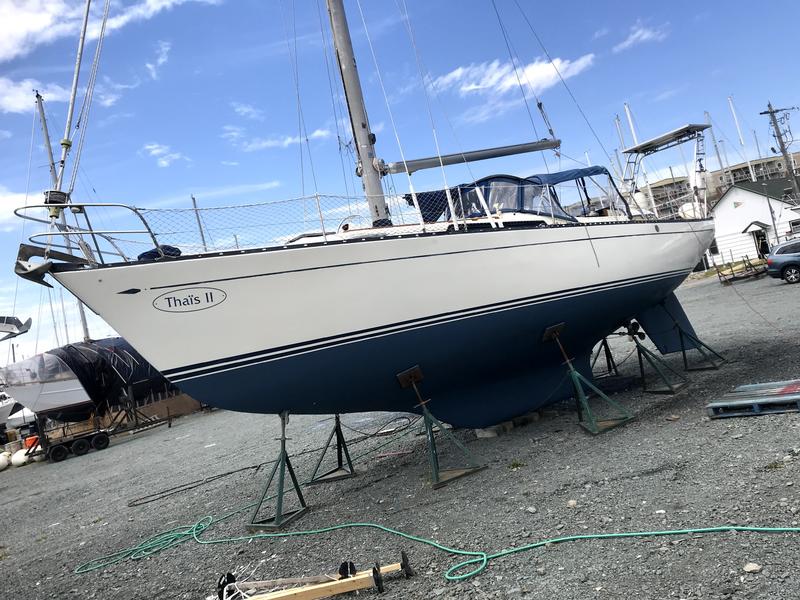

Hull: Fiberglass
Hull Condition: Good
Length: 39ft 7inches Beam: 13ft 4 inches
Freeboard: 51 inches Forward, 39 inches Midships 37 inches Aft. Material & Type of Construction: Fiberglass in female molds
Registered Tonnage: Gross 15 Net 14
Number of Watertight Bulkheads: None
Rudder: Hung on skeg with bronze bottom bearing
Propeller: One bronze 18 x14R fixed three blades
Tail Shaft Material: Stainless steel Size: One & one quarter inches
Any changes from original design: Mild steel mast step replaced with
epoxy covered aluminum step.
Type and condition of rub rail: Fiberglass Engine Bearers: Fiberglass

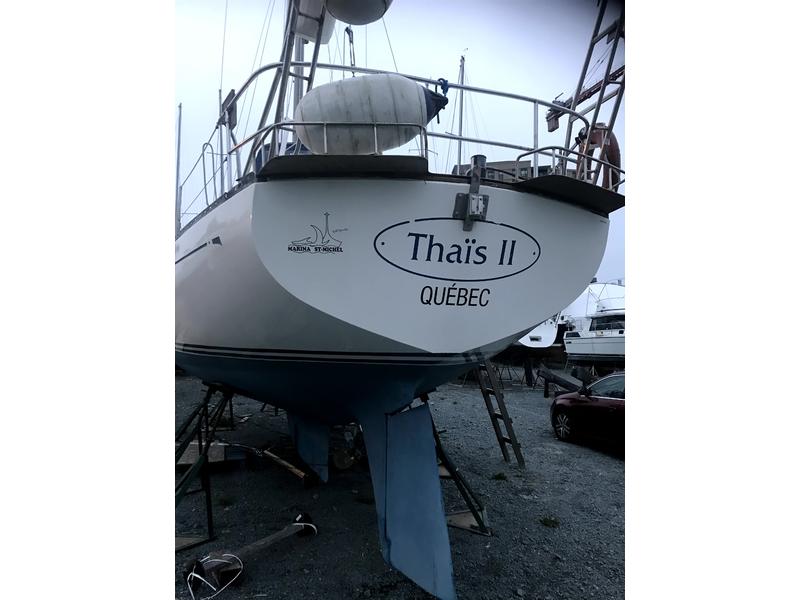

Vessel: Thais II Type: Ketch Model: Hughes- Northstar 80/20
Builder: Hughes Boatworks
Halifax, Nova Scotia
Draft: 4ft 9 inches

Number of Hatches: Three
Type: Bowmar
Location: Forward cabin, midships and aft
Wheelhouse: (Interior) N/A (Exterior)
Cabin: (Interior) Fiberglass with teak paneling and trim
(Exterior) Fiberglass
Windows/Portholes: Twelve
Gasket/Sealing: Urethane sealing
Cleats: Sufficient cleats, leads and fittings for sailing and mooring.
Guard Rails: S/S bow / stern pulpits and stanchions with double S/S
Steering Gear: Stainless steel cables wheel to quadrant
Canvas: Full enclosure
Mast: Aluminum main and mizzen masts
wire.
Mast Step: Aluminum on keel
Fresh Water Tanks: Two
Sinks: Three
Toilets: Yes
Controls:
Location: Forward head, galley and aft head Quantity: Two
(Auto) (Hand pump) Yes
Upholstery: (Type) Marine grade cloth (Clean) Yes
Paint: Topsides: Clean Underwater: Clean
ANCHOR EQUIPMENT:
Main Anchor: 30 kg. Bruce with 250ft. of 5/16 high test galv. chain
(2nd) 20kg. Bruce with 50ft. of 5/16 high test galv. and 200ft. of nylon rope (3rd) Admiralty type with 50ft. of high test galv. chain with 300ft. nylon rope

Capstan: (electric)
Radio/Telephone: Two
Navigation Equipment: (Type) Simrad quantum (DSC) (Sat)
(Condition) Good (Condition) Good
(Condition) Good (Condition) Good
(Condition) Good (Condition) Good
(Condition) Good
2500 watt heart investor

Depth Sounder: Yes
Radar: Yes
Auto Pilot: Yes
G.P.S Yes
Compass: Yes
Compass Last Adjusted: Unknown

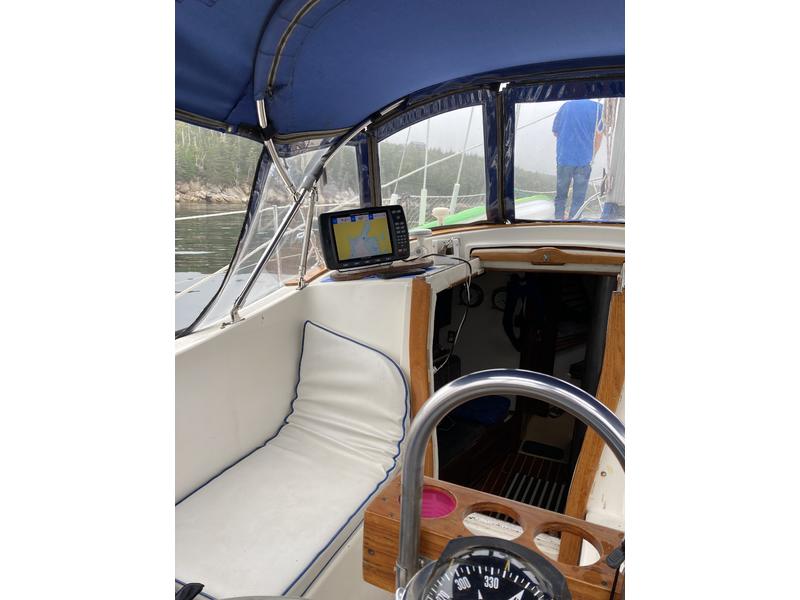

Chartplotter: Yes (Type) Simrad 1000 (Condition) Good Other: Apparent wind, windspeed, boat speed and
(Type) Simrad (Type) Furuno 1720 (Type) Simrad WP 32
(Type) Garmin 128 (Type) Ritchie
MACHINERY (PROPULSION/GENERAL):
Number of Engines: One
Engine Name: Perkins
Engine Type: four-cylinder diesel 4-154 Serial#: 4-154U2444 Last Overhaul: None / engine has 3420 hrs. H.P: 55

Year Built: 1997
Engine Controls: Push/pull cable Carburetors: N/A
E.R Ventilated: Yes
Bilge Pumps: Five
Location: Aft, midships and forward
Installed: 1997 Drip Pans: Yes
Cooling System: Closed system with heat exchanger.
(Type) 3 electric with float switches &
2 manual
AUXILIARY ENGINES: Number:
Serial#: Year Built: Drip Pans:
Cooling System: Purpose:
Sea Connections: Condition: Good
Engine Name: Engine Type: H.P.: Installed: Carburetors: Exhaust Type
