31' Wylie Gemini

Racer with extensive sail collection Mylar on encore carbon fiber on legacy Legacy and Encore are both for sale.
CONDITION AND VALUATION SURVEY FOR THE VESSEL:
WYILE DESIGN 1976 31' RACING SAILBOAT - 'ENCORE II'

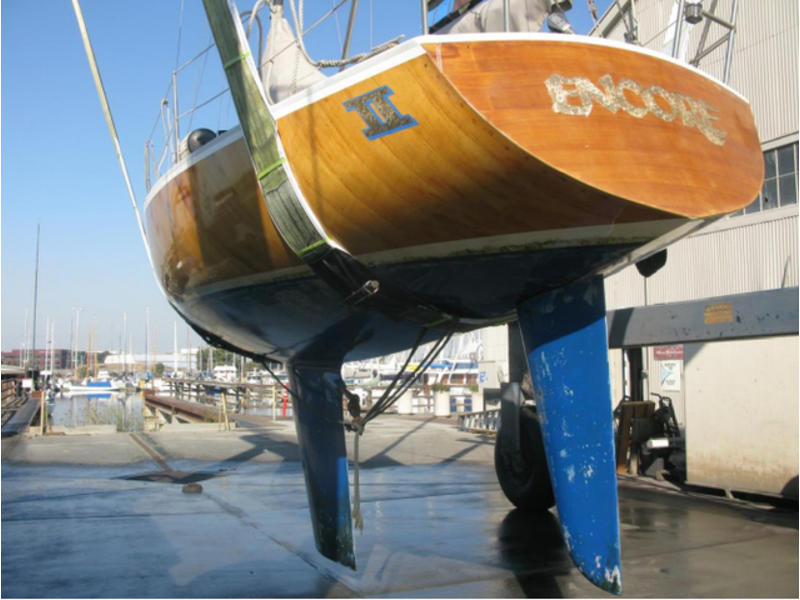

View of vessel during haul out for bottom inspection at Grand Marina in
Alameda, CA.

DESCRIPTION OF VESSEL
The 'Gemini Twins' Legacy I & Legacy II were built in 1976; a cold
molded design by the
Wylie Design Group. Built to be twin racing boats with an economical
plan and craftsman
appeal. These sailing boats are equipped with a 50' mast and 497 square
feet of sail area.
This is an auxiliary sloop racing boat with an aft cockpit and flush
deck. From the
companionway, step down to access open hull layout. The engine is center
within
wooden insulation box aft is rudder bearing post access.

BASIC VESSEL INFORMATION
Name: 'Encore II' Official Number: CF 9064 SM
(Documentation Number).
Hull Identification Number: HIN Year/Make/Model: 1976 31' Wylie
CFZQ356138 Design Group Racing Sailboat.
Hull Type & Material: Displacement, Builder/Designer: Thomas Wylie
cold molded wood planking. Design Group.
L.O.A: 31' Hailing Port: SF Bay,
Beam: 9' 3 Propulsion System & Fuel Type:
Inboard diesel and sail.
Draft: 6' 2 (fin keel) Intended Use: Recreation.
Weight: 5,064 lbs. Intended Cruising Area: SF Bay.
Vessel dimensions and weight were obtained from 2009
Edition of BUC Book. All other data was obtained from
onboard ship's papers.

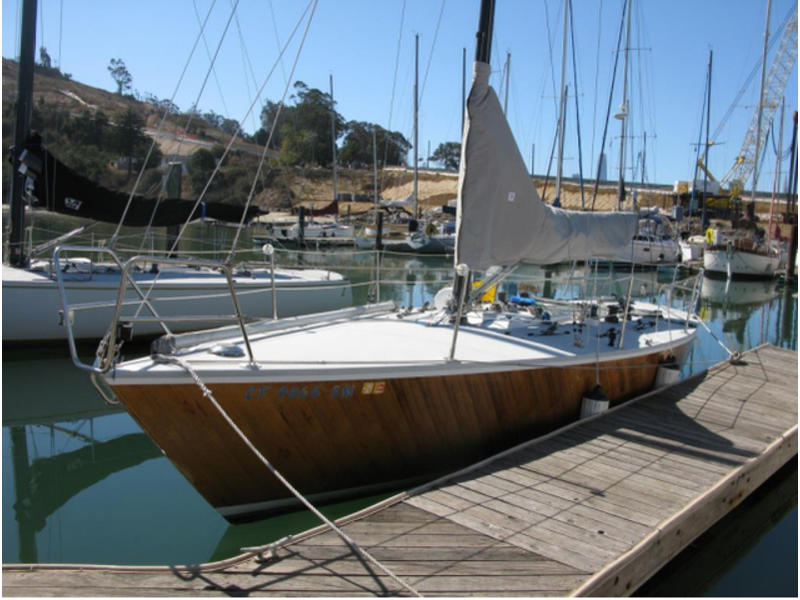

View of vessel at survey site, at berth Treasure Island Marina.

SYSTEMS
HULL, DECK AND SUPERSTRUCTURE
HULL CONSTRUCTION
Type & Material: Displacement; five Exterior Color & Condition: Top sides
diagonal layers of 1/8th inch western - good condition. Laminated cedar and
red cedar laminated with WEST white. Bottom in good condition, no
Systems epoxy. Cold molded build with blisters found. Percussion soundings
one layer of four ounce glass cloth. within normal range.
Owner to renew paint at next haul.
Frames & Planking: Laminated cedar; Keel: Good condition as sighted at haul
Alaskan Spruce laminated in varying out - keel constructed of Mahogany.
lengths.
Bulkheads: Marine plywood - good Stem & Transom: Good condition.
condition.
Bilges: Keel bilge full with water, drain Port Lights/Port Holes: None.
and inspect - B recommendation.
DECK CONSTRUCTION
Material & Surface: Hull to Deck Joint: Internal overlapping; in good
Western cedar and condition.
marine (Gaboon) Hatches: Only companionway way hatch center.
plywood; grey sand Layout: Flush deck with aft cockpit.
non-skid overlay.
SUPERSTRUCTURE CONSTRUCTION & LAY OUT - Single aluminum 50' mast atop
flush deck.

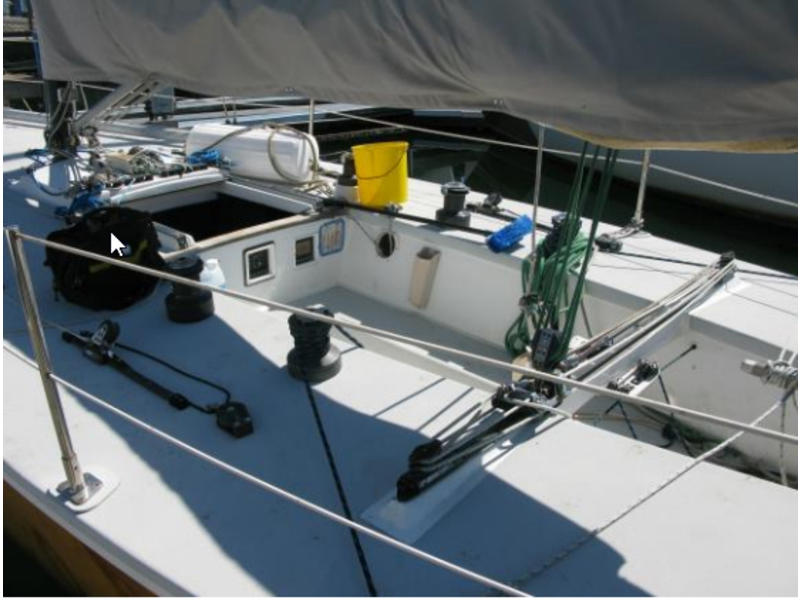

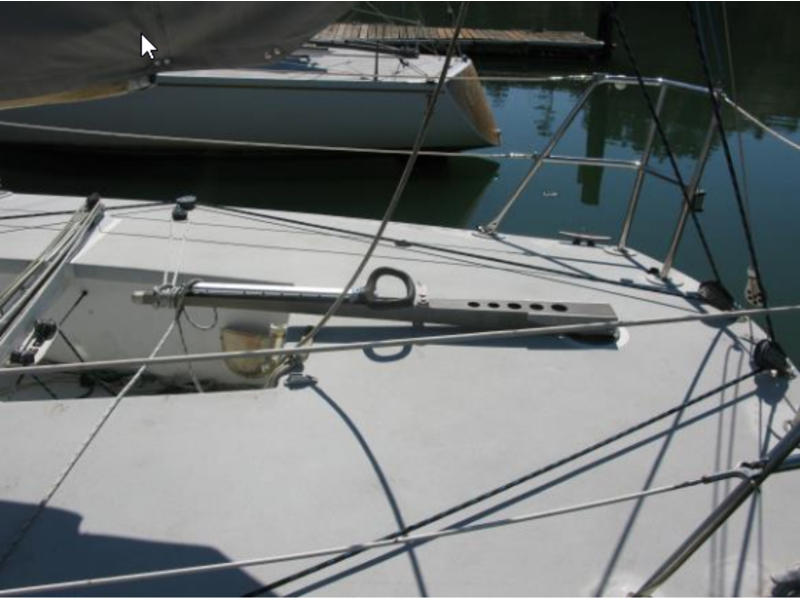

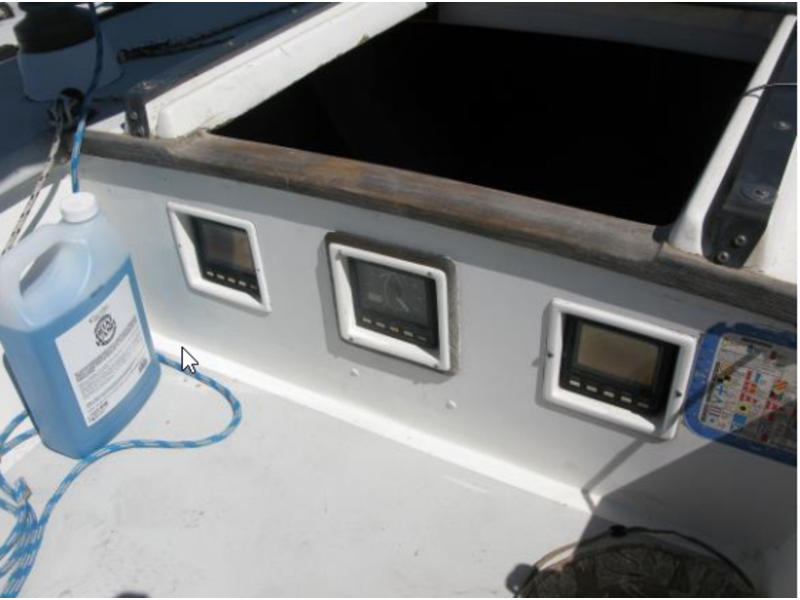

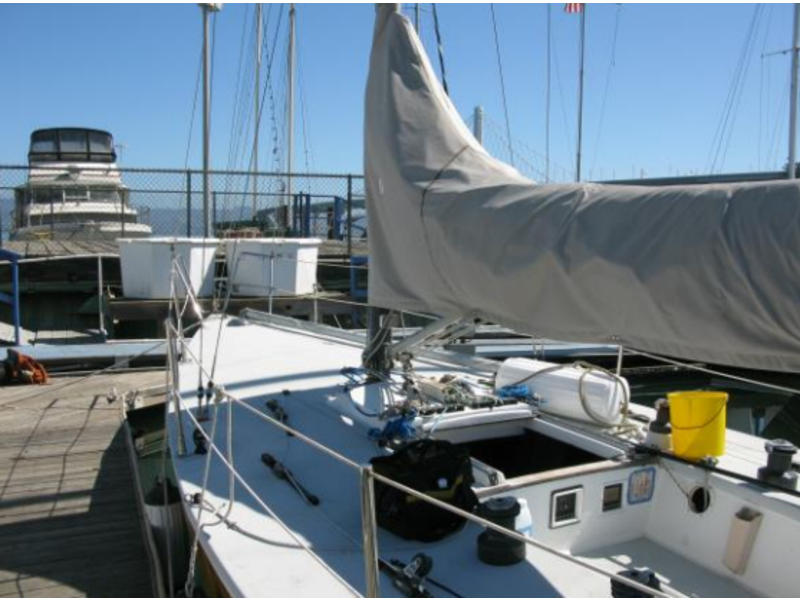

Aft deck and cockpit view.

SPARS AND RIGGING
Mast & Spars: Single spreader with Winches: Good condition, no corrosion
jumper, ovoid, aluminum, white- sighted; Barient self-tailing.
painted mast. Chocks: Good condition.
Boom: Aluminum, ovoid; good.
Gooseneck good.

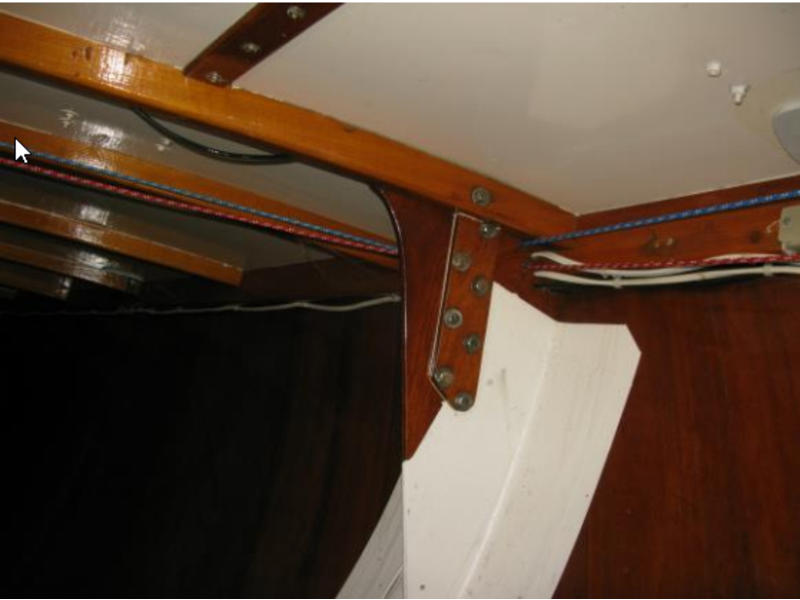

Mast Step/Partners/Chain Plates: Running Rigging: Good condition.
Good condition.
Sail Inventory: Five sail bags counted - Standing Rigging: Good condition.
Mylar - not inspected.
Remarks: Rigging was reviewed at deck level only and this does not
represent a
complete rigging survey which should be done by a professional rigger and
include inspection of ALL fittings, hardware and structures aloft.

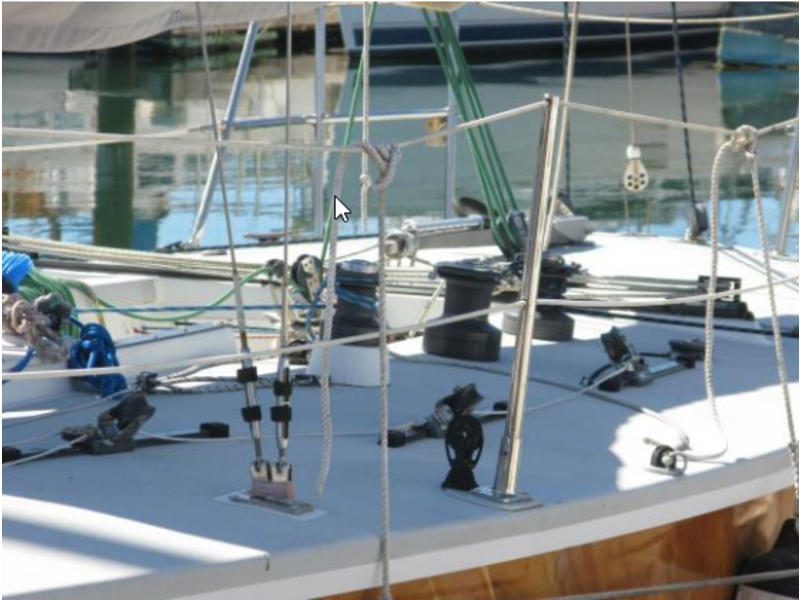

Various rigging photos.

PROPULSION MACHINERY
ENGINE ROOM
Location: Amidships. Natural Ventilation: No.
Insulation: Plywood box cover. Power Blowers: Not required - diesel.
MAIN ENGINES
Number, Type, & Fuel: One, inboard Manufacturer: Volvo Penta 20HP.
(sail drive), diesel. Flame Arrestor: Not required.
Engine Mounts & Beds: (14T X 2.5W) Exhaust System: Single riser to
timbers with ear brackets from angle to Naqualift silencer to short
flexible hose
adjustable bolted mounts. to large Marelon ball valve; *clamps are
Belts & Pulleys: Good; good. off of spud - B rec.
Serial Number: Number sighted - Number of Cylinders: 2.
#MD20 10B B68745 Other: 1 water in engine bilge - B rec.
COOLING SYSTEM
Type: Heat exchanger.
Seacocks: 1 Marelon ball valve starboard and aft engine.
Hoses & Clamps: Good.
TRANSMISSION SYSTEMS
Shaft Material & Size: 1 stainless steel.
