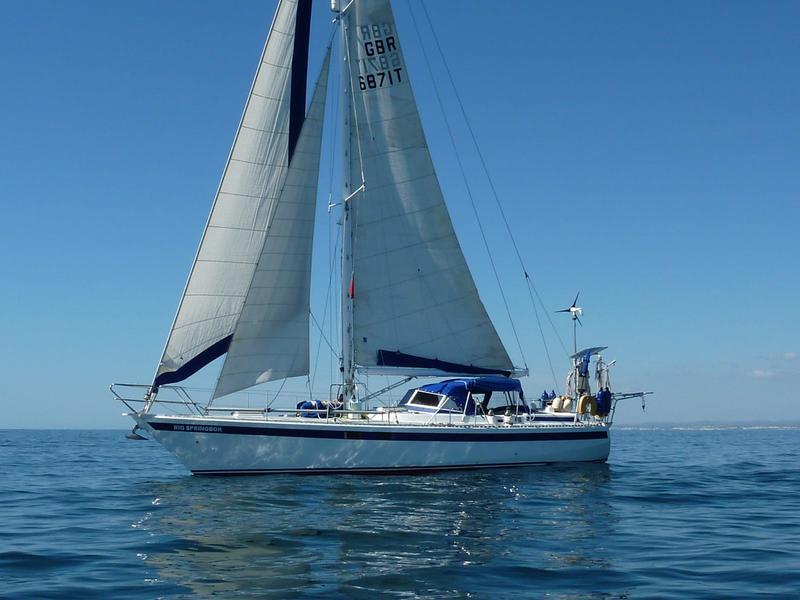

43' Van de Stadt Trintela 43

Builder/Designer
Builder: Van de Stadt Designer: Van de Stadt

Van de Stadt
Trintela 43 Steel

Dimensions
LOA: 43 LWL: 34 5 Beam: 12 10

Displacement: 14.5 tons Draft: 6 6

Engines
Engine: Perkins Engine model: 92M

Tankage
Fuel: 110 gallons in 2 steel in Water: 220 gallons in single int

Construction
Hull: Built Stanilands (2) in 4mm B50 rolled steel. Multi-chined hull with long fin and skeg
Keel: built in 6mm steel and 12mm steel sole plate with lead ballast
Deck: 3mm steel

Accommodations
Teak/beech deck flooring
Headrom 64 to 70 throughout
5/6 berths, 3 cabins 2 heads
Fitted wardrobes
Hull ports double glazed with fitted polycarbonate
Lavac sea toilets, aft toilet plumbed to holding tank with gauge and macerator pump (2004)
Full size chart table
Stainless Taylor 040 four burner grill and oven gas cooker
Isoterm fridge (2003)
Wet locker
Airing cupboard

Electrical
Wind generator: Air marine 24v
Solar Panel: Siemens 110w 24v
(both fitted on stainless goalpost 2001)
Batteries: Six AGM battery bank (2005)
Battery Charger: Victron Energie System Phoenix Combie 24v/2000w/50amp battery charger and inverter (Replaced under warranty 2004)
Monitor: Xantrec Link 10 battery monitor (2005)
Isolator: Galvanic isolator (2004)
Shore power: ring main with 11 outlets
Smoke detector



Electronics / Navigational
VHF: Kelvin Hughes Hasan 70 radio with cockpit speaker
Echo Sounder: Incaster
Log: Incaster
(both with cockpit repeaters)
Compasses:
Simpson Lawrence Sestral Moore magnetic
ST 80 fluxgate (2001)
Autopilot: Raytheon 7000 (2001)
Wind System: Raytheon 50 (2001)
GPS: Leica Mk 10 (2001)
Navtex: Navtex Pro Plus (2001)
Heaters:
Reflex 62M diesel cabin heater with seperate 12g tank and two central heating radiators with circulation pump
Greenstar 32l calorifier heater (2003)
Paloma gas water heater
Water pump: Sensor Max 17 fresh water pump (2005)
(All fresh pipes replaced 2004)
Fans: 2 x 12v fans (2005)

Deck
Winches:
Two Lewmar 46 chrome self tailling genoa winches
Two Barlow 25 chrome self tailling staysail winches
Halyard winches
Fenders: Eight fenders
Other: 1 x Parachute Sea Anchor (2002)
Hatches:
4 x Goiot hatches
4 x Vetus ventilation hatches (2004)
4 x dorade boxes with cowels
Vents:
1 x closing ventilight
1 x electric vent above galley

Engine, control, Additional
Gearbox: PRM, fitted new in 2003
Propeller: 3 blade fitted new in 2005 along with prop shaft, cutlass bearings and shaft seal
Controls: Morse single lever
Steering: Whitlock rod steering with 1/4 hp Mamba drive unit, fitted 2000






Spars & Rigging
John Powell alloy mast and boom
Rotastay roller headsail gear
10mm and 8mm standing rigging, running backstays (Re-rigged 2000)
Boom kicker (2001)
Whisker pole (2002)
Mast steps (2001)
Radar reflector (2001)

Sails
Main Williams 10 oz with slab reefing
Genoa Hood 9 oz
Staysail 8 oz
Yankee Rockail 8 oz
Staypack with sail cover (2001)

Ground Tackle
60 lbs CQR with 60m 10mm chain (Chain new in 2002)
60 lbs Danforth
24v 1500w windlass (2001 new motor fitted 2005)
Fortress kedge anchor with chain and reel (2002)

Additional Equipment
96 AB inflatable dinghy (aluminium bottom) whith 15hp Yamaha outboard (2005)
Davits fitted to aft goal posts with hoist for engine
Honda 1kw generator (2004)
Motorola Iridium Satellite phone (2004)

Safety
Lifebuoy (2001)
Dan buoy (2001)
Four fire extinguishers (2002)
McMurdo Rescue EPIRB (2001)
Manual and automatic bilge pump (2001)
Avon 4 man liferaft (2001)
