112' Camper & Nicholsons 34m

Beautiful 1904 Gaff Cutter, Merrymaid
An incredible opportunity to own a concourse condition classic yacht, of peerless bearing and strong sailing prowess.

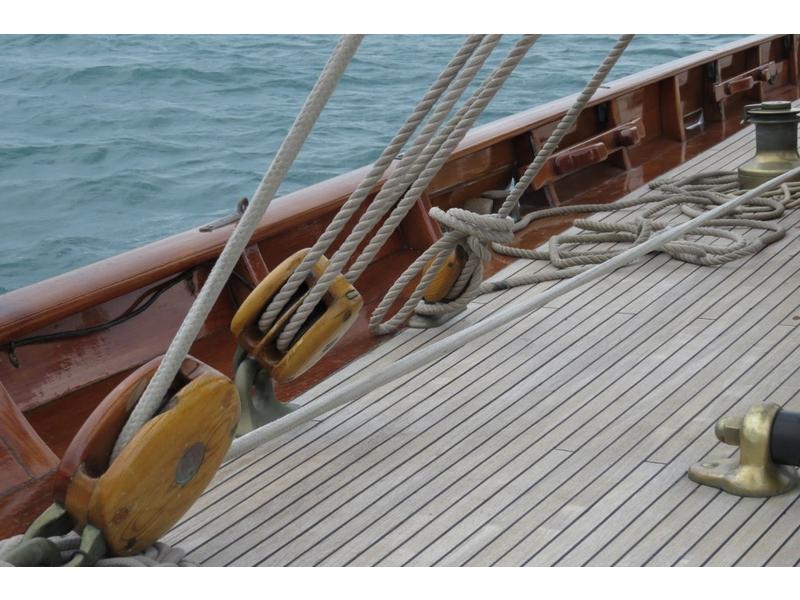

Her hull is constructed of carvel-planked teak on oak frames, with a teak superstructure and decks. Her immaculate and mainly original cabinetry deliver a uniquely charming finish. The yachts outstanding condition is a reflection of the works undertaken by the current owner. Rescued from a life of houseboat obscurity, MERRYMAID underwent a complete and thorough rebuild by the renowned yard Southampton Yacht Services, (Velsheda, Thendara) in 2006. All of the original elements of her hull and interior were saved, with some highly sympathetic reproduction work also carried out. Importantly, her systems and rigging were brought into the 21st century, making her a yacht capable of cruising in complete comfort and safety. Following this very successful refit, she departed on a circumnavigation with her proud owner and went on to become the first gaff cutter to navigate the North West passage. She visited many fascinating and remote corners of the earth, details of which can be made available. On returning to Europe, MERRYMAID once again visited SYS in 2010 for a cosmetic overhaul and refresh, bringing her back to perfect condition and ready for another chapter in her long and eventful life.

Now based in Palma, she is fully equipped with spare parts and ready to impress her next owner.

AT A GLANCE

Full recent restoration by a world-class yard
VAT Paid
Proven world-girdling ability
Ready to go again, with spares for just about everything
Top rate pedigree for designer and builder
Great potential on the regatta circuit

Construction 2 Carvel planked teak on Oak and steel ring frames
Engine Perkins Sabre, M265TI, MAX RPM 2200, Six Cylinders, 265 Hp
Consumption at RPM:L/h 1200:8.0, 1400:10.0, 2000:27.0
Cruising Speed 8.5 knts
Max Speed 12 knts
Generator Onan 17.5kVA - 80 amps max (consumption 3.4L/h at 40 amps for 5h per day) Engine driven alternator 150 amp
Heating Mikuni diesel
GRT 87.82
Propulsion 3-blade fixed propeller
RPM:knots 1400:8.5, 1800:10, Sails 12 knots
Gear Box Gear Box PRM 1000 connected via Carden shafts to a Aqua Drive-CVB-32-30 thrust bearing
Deep Sea seal on the inboard end of the stern tube
Power Supply 230v 50Hz AC / 24v DC
12# Dryfit A600 2v Gel cells with 1500ah/20 hr
Engine/Services separated and with parallel switch
24v separate DC bank for the NAV & COM with parallel switch
Mastervolt inverter 2.5kVA
Galvanic isolator
3# Mastervolt 100 amp battery chargers
Tanks Diesel 1400 litres (Bladders giving an extra 1000 litres)
Water 800 litres
Range 1120NM at 1400RPM, 1920NM with Bladders
Hamann chlorine waste system with 1 x 250 litre holding tank
Water 2 x Sea Fresh water makers
AC unit 200 litres per hour
PTO Hydraulic 200 litres per hour
Hot Water 2 x C-Warm CWB78-VTC at 78 litres each with twin coils and double Heater elements
Fuel Control Duplex Racor Filter to engine
Simplex Racor filter to generator
Flexible armoured hose used for all pipe work.
Manually operated fuel cut offs to feeds and returns
Windlass /Anchors Thomas Reid hydraulic windlass with double gypsy
Bronze Fisherman Anchor 140kg
CQR Anchor 108kg
14mm stud link chain 140m and 60m
Bilge System 220v bilge and main fire 1 pump
24v Auxiliary fire 1 pump with deck outlets fore & aft
Manual deck mounted bilge pump
2 x automatic Rule 2000 in main bilge space with alarms
PTO clutch pump running off the engine
Crash pump 3 petrol driven

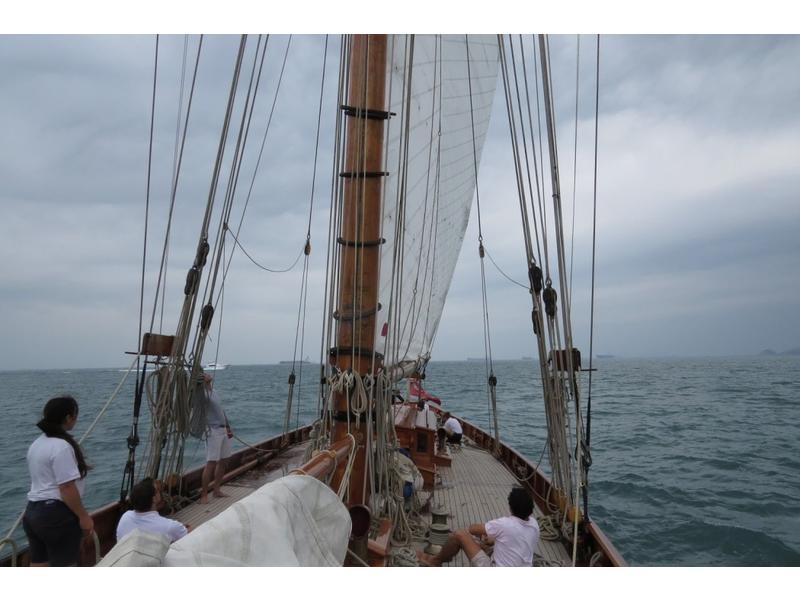

Rig Martins Rigging
Spars
Collars
Lower Mast 22.40m/73.49 Columbian Pine
Top Mast 12.40m/40.68 Columbian Pine
Boom 19.00m/62.34 Columbian Pine
Mainsail gaff 11.00m/36.10 Sitka Spruce

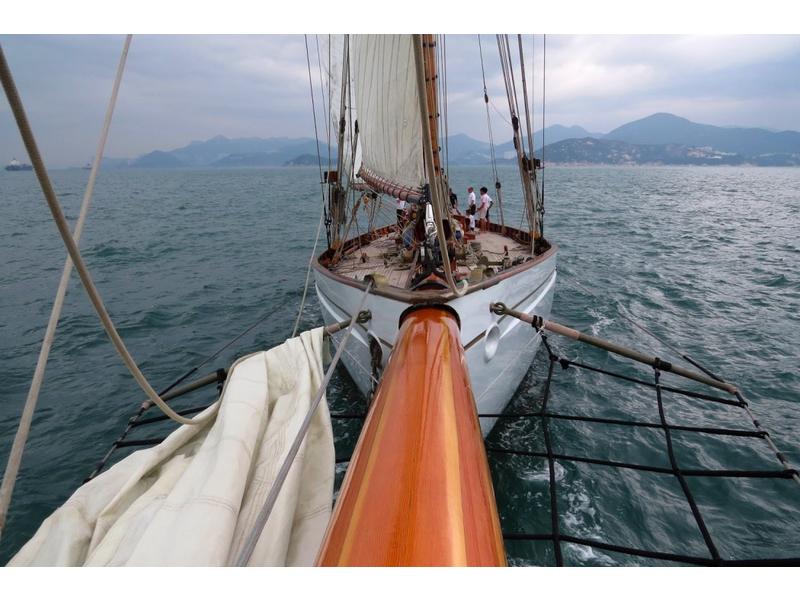

Bowsprit 8.00m/26.25 Columbian Pine
Spreaders Ash
Meissner Winches
4 x CMB 36 power, 3 x CMBH manual, 2 x 28-STB-47 self tailing
Sails
Contender Dacron
Total 953m2 Working 483m2 (7911sf)

Main 220.5m2
Spinnaker (MPS) 252.8m2
Trysail 72.5m2

Staysail 57.3m2
Staysail Strom 30.0m2

Jib Yankee 87.1m2
Jib Working 48.1m2

Jib Top Large 61.9m2
Jib Top Small 27.9m2

Top Sail Large 55.8m2
Top Sail Working 39.5m2

Navigation / Communication
Furuno NavNet 3D System, SAT C, Radar with ARPA,
Chart Plotter
AIS unit, Fleet 33 BGAN , Iridium remote distress alarm
B&G H3000 wind instruments with XDR fins
B&G H3000 Auto Pilot
Interphase forward looking sonar
Furuno Navtex, Furuno GPS back up unit
2 x VHF DSC fixed units with independent aerials
MacMurdo 406GHz EPIRB with GPS, 2 x S.A.R.T.
2 x Iridium Motorola 9505A
Max Sea Weather Routing Software
Full catalogue of world charts, paper and electronic

Fire Fighting
Two 2 fire hydrants in the covering boards forward and aft
FE-227 manually operated extinguisher in the engine space
